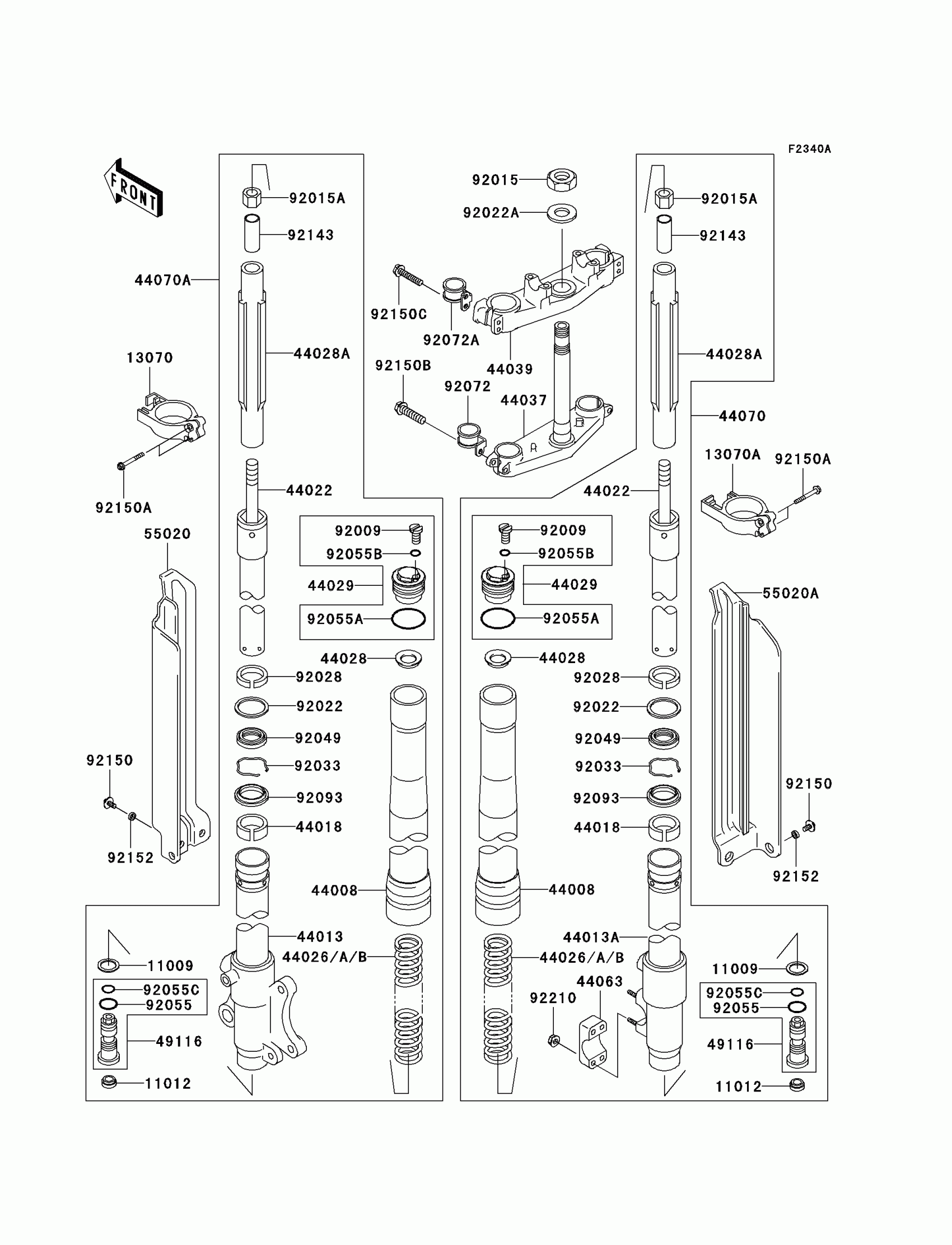

Kawasaki KLX300R Front Fork(A7F) Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1592

$4.64

11012

CAP,FORK CYLINDER

11012-1381

$5.32

13070

GUIDE,FORK,LH,WHITE

13070-1263-RZ

$35.79

13070A

GUIDE,FORK,RH,WHITE

13070-1264-RZ

$35.79

44008

PIPE-FORK OUTER,GOLD

44008-1028-828

$1,079.64

44013

PIPE-FORK INNER,LH

44013-1387

$621.09

44013A

PIPE-FORK INNER,RH

44013-1388

$621.09

44018

PISTON-FORK,INNER PIPE

44018-1056

$25.19

44022

CYLINDER-FORK

44022-1314

$404.36

44026

SPRING-FRONT FORK,K=3.43N/MM

44026-1551

$74.02

44026A

SPRING-FRONT FORK,K=3.63N/MM

44026-1552

$74.02

44026B

SPRING-FRONT FORK,K=3.725N/MM

44026-1603

$106.39

44028

GUIDE-FORK SPRING

44028-1081

$11.59

44028A

GUIDE-FORK SPRING

44028-1084

$9.76

44029

SEAT-FORK SPRING

44029-1149

Unavailable

44037

HOLDER-FORK UNDER

44037-1291

$759.76

44039

HOLDER-FORK UPPER

44039-1240

$332.76

44063

HOLDER-FRONT AXLE

44063-1056

$57.93

44070

DAMPER-ASSY,FORK,RH,GOLD

44070-1468-828

$1,562.86

44070A

DAMPER-ASSY,FORK,LH,GOLD

44070-1469-828

$1,562.86

49116

VALVE-ASSY,FORK

49116-1145

$181.65

55020

GUARD,FORK,LH,WHITE

55020-0196-RZ

$56.28

55020A

GUARD,FORK,RH,WHITE

55020-0199-RZ

$56.28

92009

SCREW

92009-1568

$5.51

92015

NUT,STEERING STEM,22MM

92015-1653

$12.66

92015A

NUT

92015-1839

$18.34

92022

WASHER

92022-1299

$6.55

92022A

WASHER,STEERING STEM

92022-1873

$5.69

92028

BUSHING

92028-1581

$17.61

92033

RING-SNAP

92033-1077

$3.78

92049

SEAL-OIL

92049-1373

$25.64

92055

RING-O

92055-1156

$1.08

92055A

RING-O,FORK,AIR TUBE

92055-1333

$4.53

92055B

RING-O,2.8X6.6X1.9

92055-1441

$3.31

92055C

RING-O,FORK VALVE

92055-1502

$7.36

92072

BAND

92072-1267

$19.64

92072A

BAND

92072-1268

Unavailable

92093

SEAL,FORK OUTER TUBE

92093-1342

$14.12

92143

COLLAR,FORK

92143-1643

$21.97

92150

BOLT,6X14

92150-1340

$3.86

92150A

BOLT,FLANGED,5X40

92150-1434

$4.08

92150B

BOLT,FLANGED,8X40

92150-1446

$12.12

92150C

BOLT,FLANGED,8X40

92150-1516

$10.75

92152

COLLAR,8X12.7X4

92152-0315

$4.53

92210

NUT,FLANGED,6MM

92210-1070

$7.37
