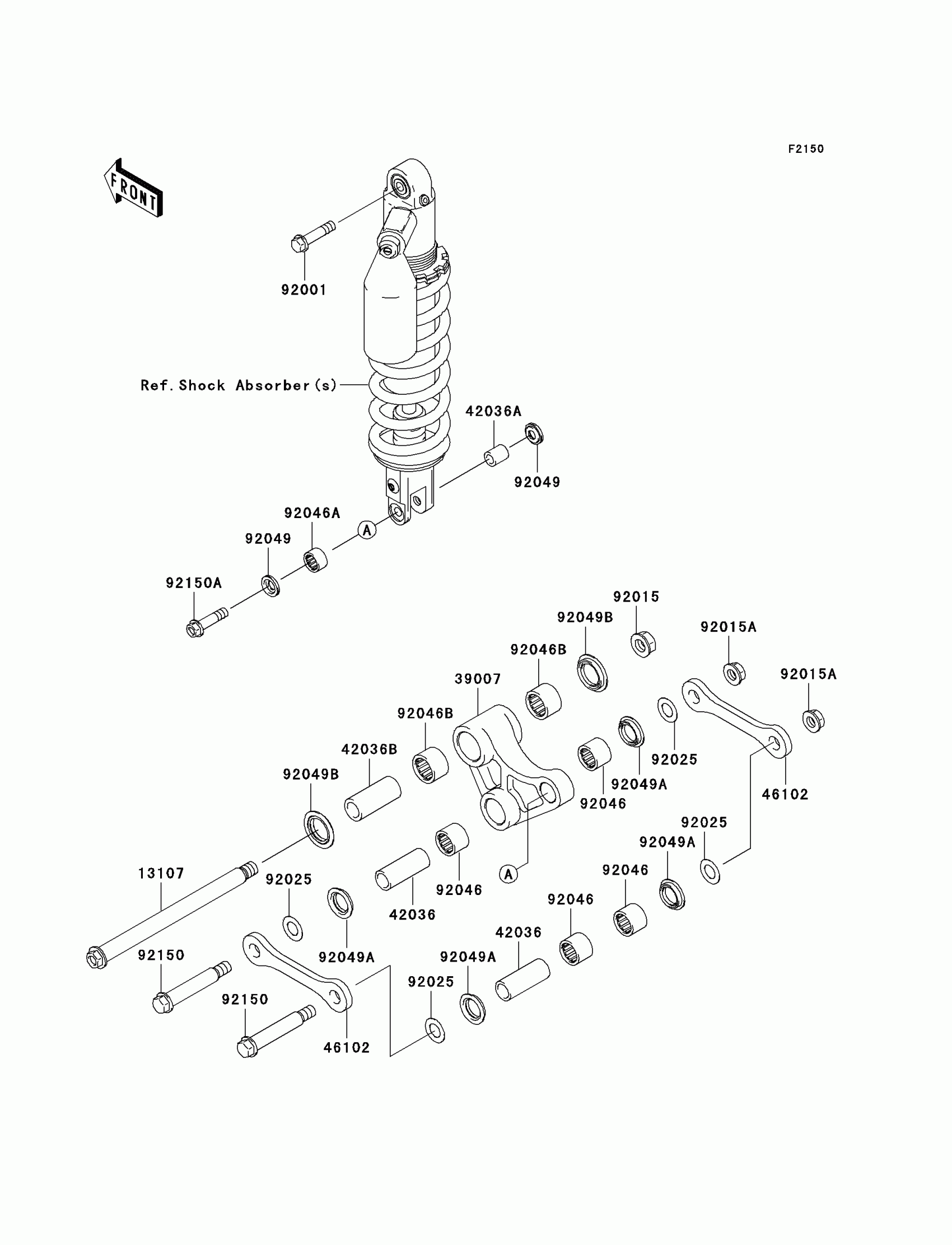

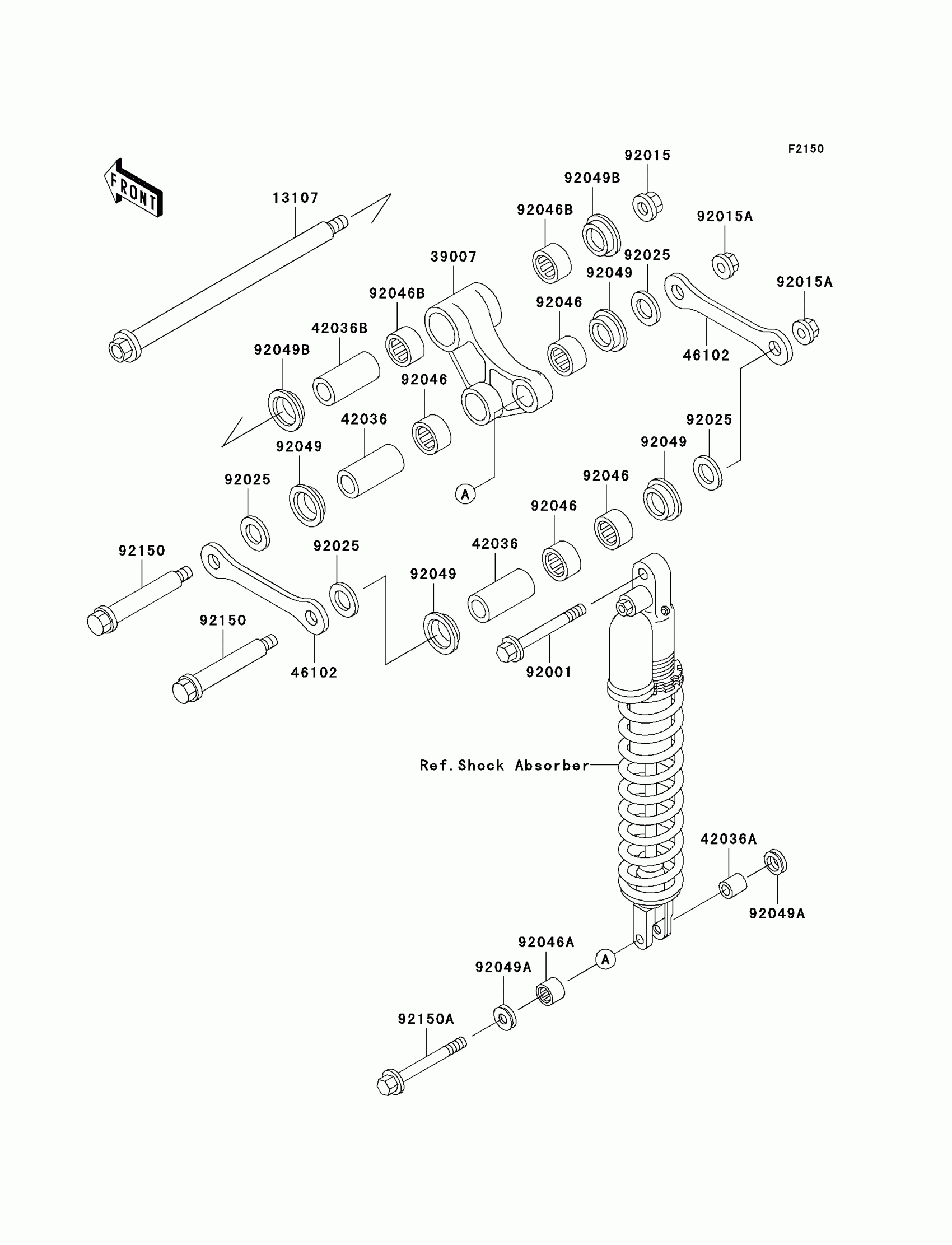

Kawasaki KLX300R Rear Suspension Diagram

Description

Price

13107

SHAFT,ARM,14MM

13107-1330

$59.02

39007

ARM-SUSP,UNI TRAK

39007-1234

$305.74

42036

SLEEVE,15X22X57

42036-1245

$19.97

42036A

SLEEVE,10X16X19

42036-1248

$7.54

42036B

SLEEVE,17X25X57

42036-1318

$19.97

46102

ROD,SUSPENSION

46102-1350

$59.82

92001

BOLT,FLANGED,10X44

92001-1499

$4.18

92015

NUT,14MM

92015-1407

$7.54

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92025

SHIM,15.3X27.5X0.6

92025-1135

$3.34

92046

BEARING-NEEDLE,F-2220

92046-1162

$17.18

92046A

BEARING-NEEDLE,16BM2212

92046-1192

$13.73

92046B

BEARING-NEEDLE,BM2520

92046-1228

$19.92

92049

SEAL-OIL,MHA22 28 5.7F

92049-1254

$7.08

92049A

SEAL-OIL

92049-1330

$9.35

92049B

SEAL-OIL,MF025N1

92049-1426

$9.92

92150

BOLT,ROD,12X93

92150-1337

$30.29

92150A

BOLT,FLANGED,10X40

92150-1711

$9.39
