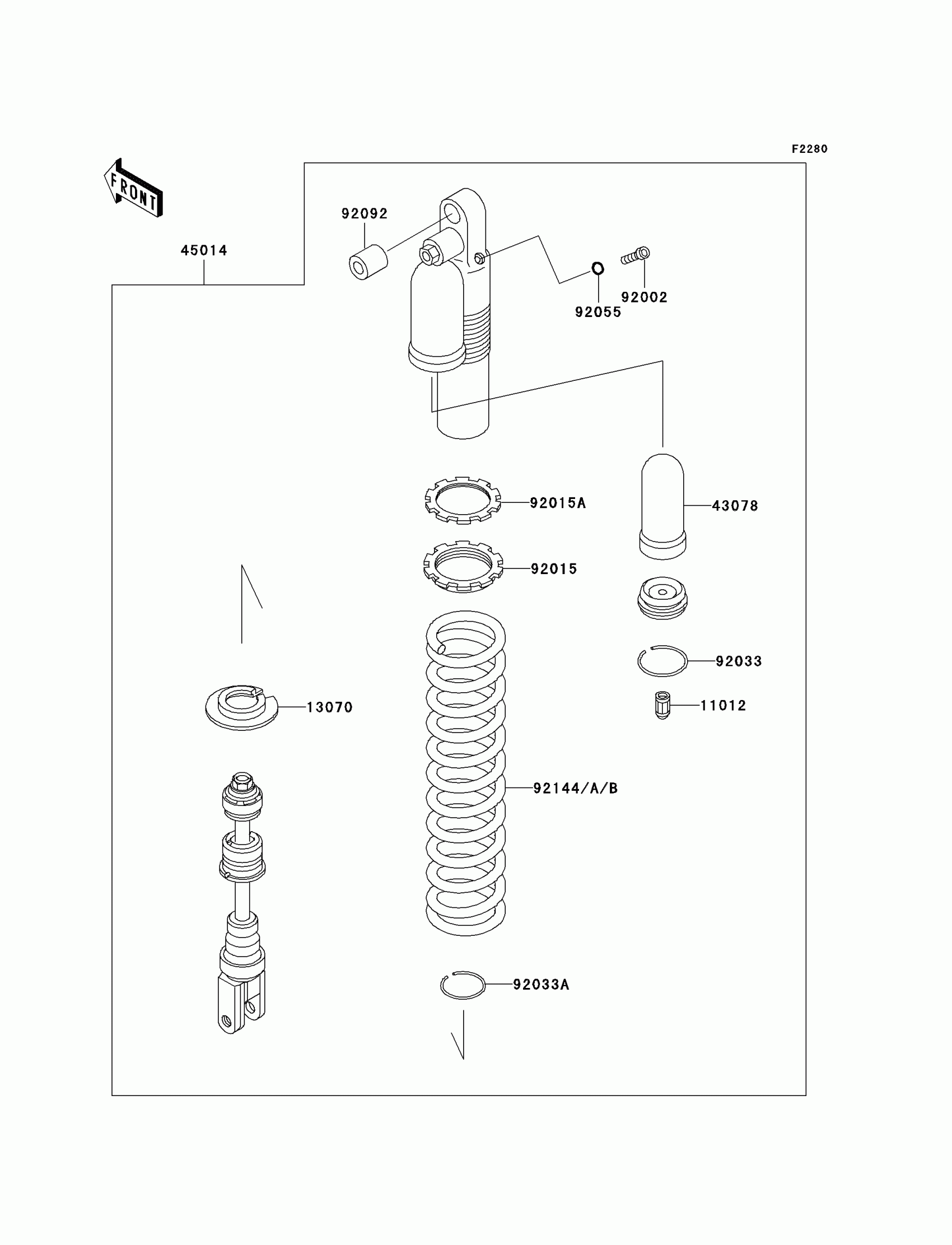

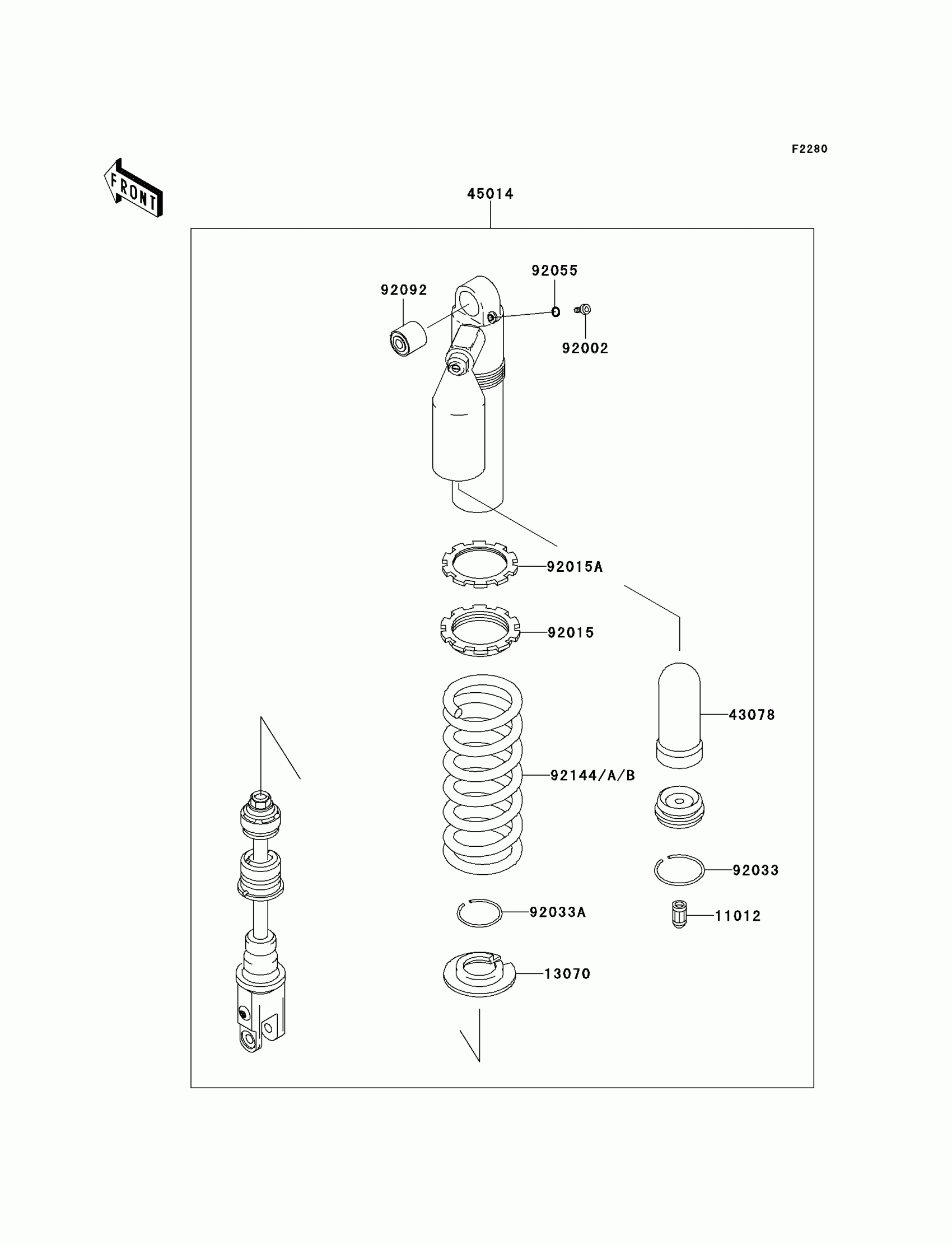

Kawasaki KLX300R Shock Absorber(s) Diagram

Description

Price

11012

CAP,VALVE AIR

11012-1391

$5.02

13070

GUIDE,SPRING

13070-1165

$36.09

43078

RESERVOIR,SHOCKABSORBER

43078-1094

$125.95

45014

SHOCKABSORBER,F.YELLOW

45014-1635-VP

$1,493.01

92002

BOLT,DRAIN

92002-1955

$10.73

92015

NUT,SPRING ADJUST

92015-1703

$41.28

92015A

NUT,SPRING ADJUST LOCK

92015-1704

$33.96

92033

RING-SNAP

92033-1209

$7.01

92033A

RING-SNAP,SHOCKABSORBER

92033-1228

$4.39

92055

RING-O

92055-1383

$3.14

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1062

$29.37

92144

SPRING,SHOCKABSORBER,K=5.0,YEL

92144-1758-VP

$522.59

92144A

SPRING,SHOCKABSORBER,K=5.4,YEL

92144-1759-VP

$522.59

92144B

SPRING,SHOCK,K=5.8,F.YELLOW

92144-1937-VP

$522.59
