2025 Kawasaki KLX230SM ABS Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

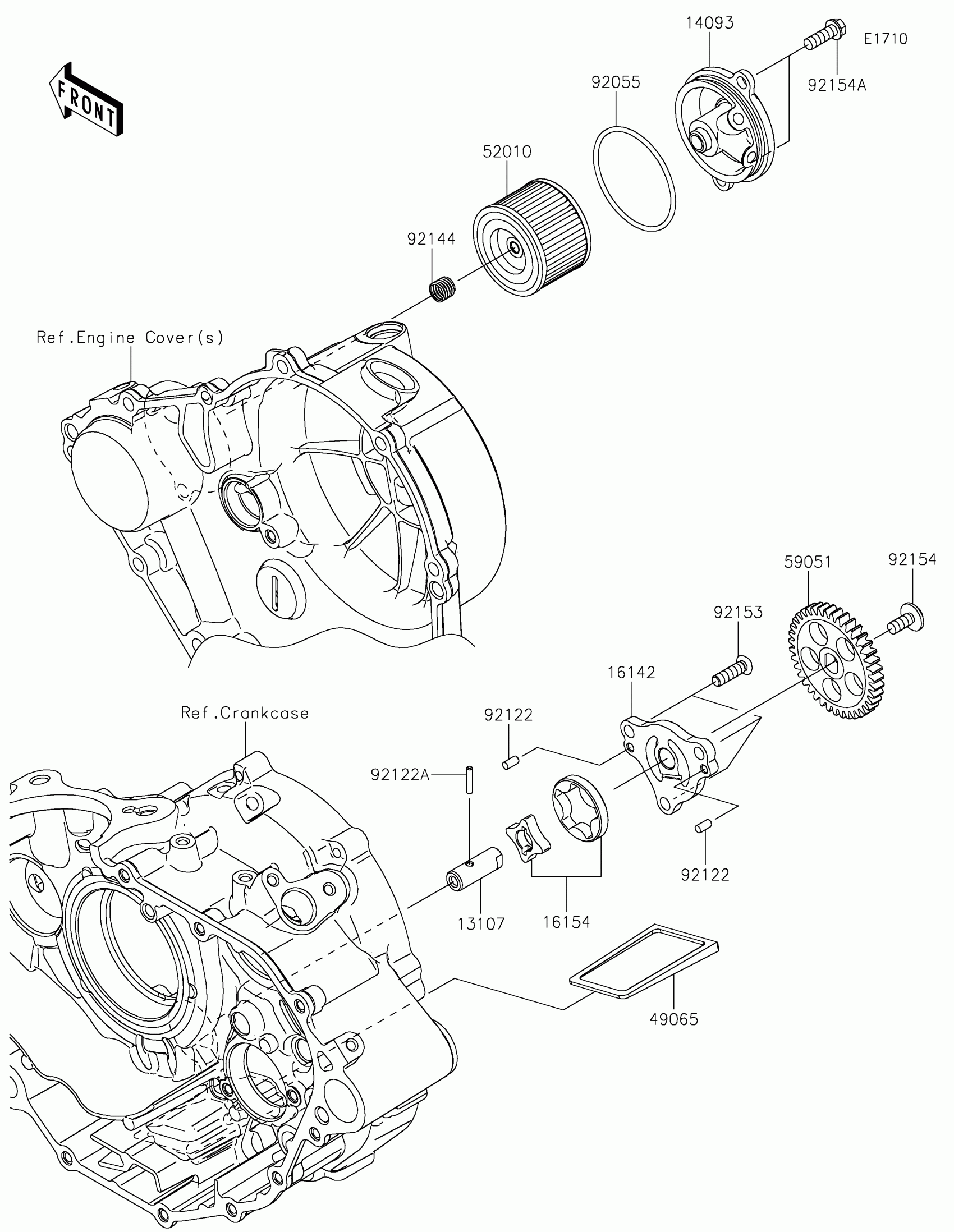

2025 Kawasaki KLX230SM ABS Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,OIL PUMP

13107-0891

1

$25.51

In stock

14093

COVER,OIL FILTER

14093-1258

1

$39.58

In stock

16142

COVER-PUMP,OIL

16142-0760

1

$29.50

In stock

16154

ROTOR-PUMP

16154-0747

1

$35.95

In stock

49065

FILTER-OIL

49065-1058

1

$10.11

In stock

52010

ELEMENT-OIL FILTER

52010-1053

1

$7.23

In stock

59051

GEAR-SPUR,39T

59051-0819

1

$45.65

In stock

92055

RING-O,52.6X2.4

92055-1785

1

$3.57

In stock

92122

ROLLER,4X8

92122-0557

1

$1.10

In stock

92122A

ROLLER,3X15.8

92122-1126

1

$3.53

In stock

92144

SPRING

92144-1761

1

$3.69

In stock

92153

BOLT,TORX,6X20

92153-1653

1

$1.81

In stock

92154

BOLT,SOCKET,6X14

92154-2731

1

$1.81

In stock

92154A

BOLT,FLANGED,6X18

92154-7470

1

$1.02

In stock
