2025 Kawasaki KLX230SM ABS Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

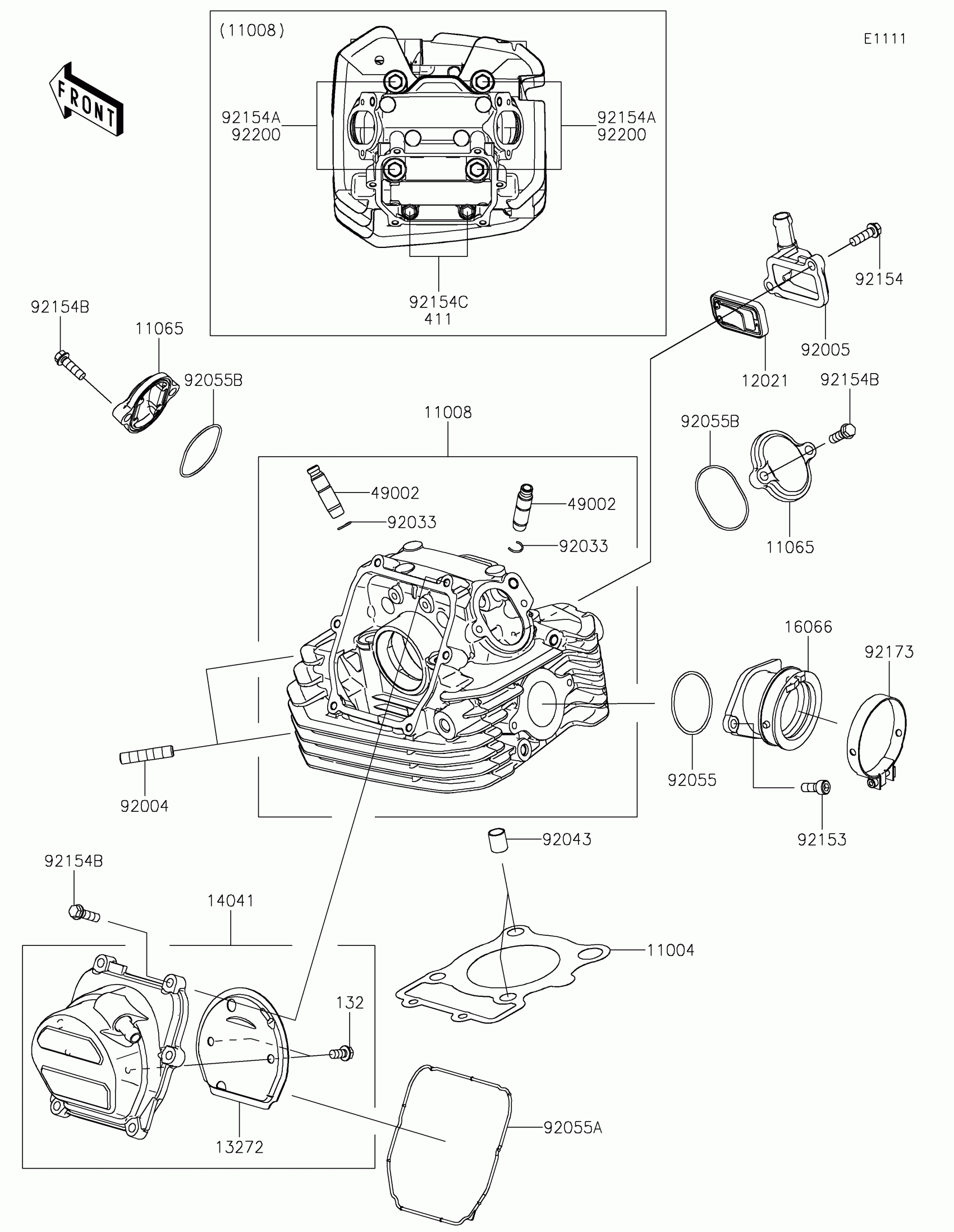

2025 Kawasaki KLX230SM ABS Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0784

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1547

1
Out of stock

11065

CAP,VALVE,ADJUSTING

11065-1411

1
Out of stock

12021

VALVE-ASSY-REED

12021-0050

1
Out of stock

13272

PLATE

13272-2616

1
Out of stock

14041

COVER-COMP,CAM CHAIN

14041-0633

1
Out of stock

16066

HOLDER-THROTTLE BODY

16066-0021

1
Out of stock

49002

GUIDE-VALVE

49002-0047

1
Out of stock

92004

STUD,8X25

92004-0731

1
Out of stock

92005

FITTING

92005-1435

1
Out of stock

92033

RING-SNAP

92033-0789

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O,42X1.9

92055-0186

1
Out of stock

92055A

RING-O

92055-0897

1
Out of stock

92055B

RING-O,ADJUST CAP

92055-1655

1
Out of stock

92153

BOLT,SOCKET,6X16

92153-1344

1
Out of stock

92154

BOLT,FLANGED,6X20

92154-2757

1
Out of stock

92154A

BOLT,FLANGED,10X190

92154-7052

1
Out of stock

92154B

BOLT,FLANGED,6X20

92154-7209

1
Out of stock

92154C

BOLT,FLANGED,6X130

92154-7468

1
Out of stock

92173

CLAMP

92173-2191

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-0257

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BD0612

1
Out of stock

411

WASHER-PLAIN,6MM

411AA0600

1
Out of stock
