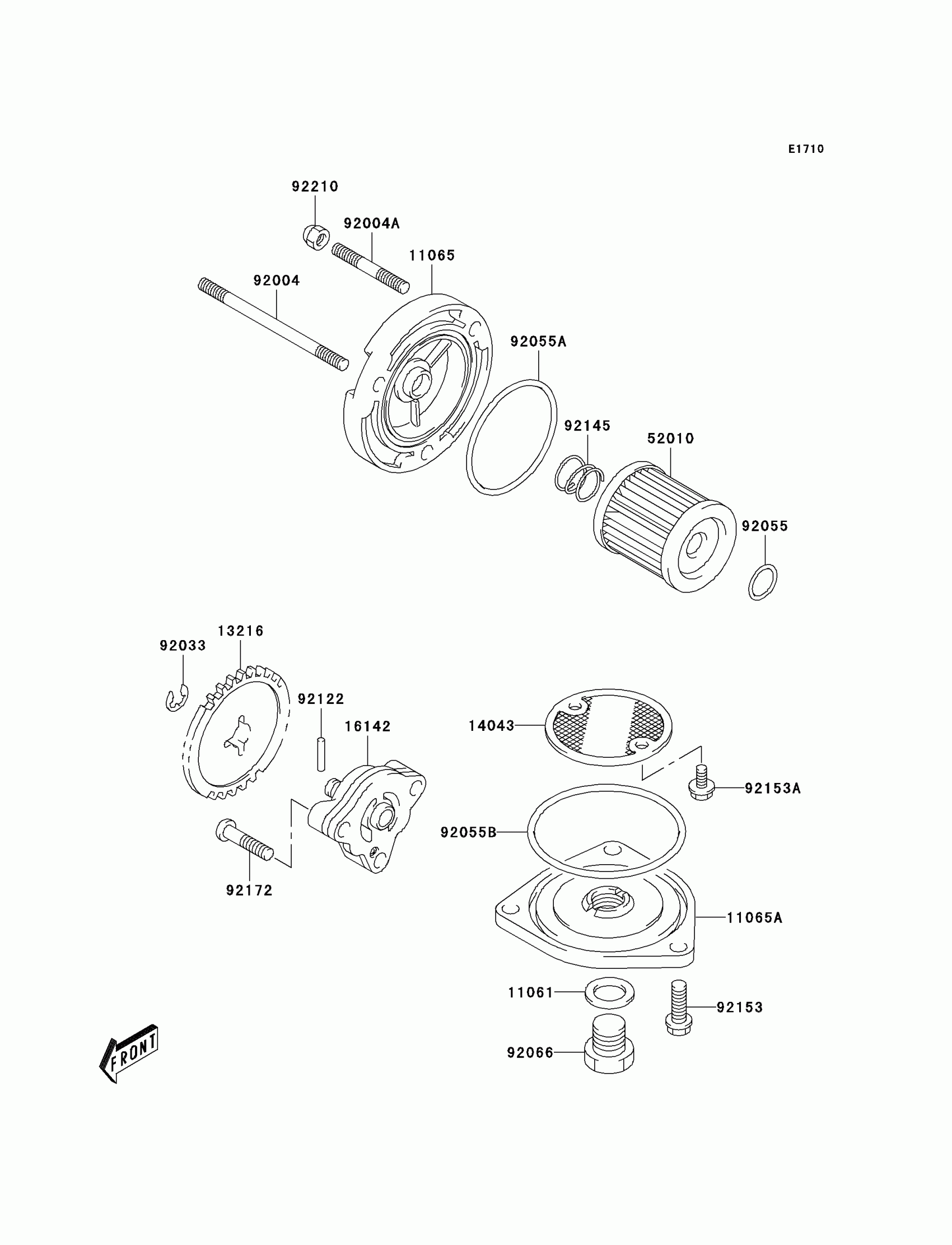

Kawasaki KLX125L Oil Pump Diagram

#

Description
Price

11061

GASKET,13.8X18.8X0.4

11061-S006

$0.87

11065

CAP,OIL FILTER

11065-S015

$33.13

11065A

CAP,OIL STRAINER

11065-S016

Unavailable

13216

GEAR-COMP,OIL PUMP DRIVEN

13216-S004

$39.44

14043

FILTER

14043-S002

$5.16

16142

COVER-PUMP

16142-S001

$128.98

52010

ELEMENT-OIL FILTER,ENGINE OIL

52010-S002

$7.23

92004

STUD,L=90

92004-S006

$3.57

92004A

STUD

92004-S007

$3.76

92033

RING-SNAP

92033-S018

Unavailable

92055

RING-O,D=1.9

92055-S005

Unavailable

92055A

RING-O,D=2.4

92055-S010

$3.35

92055B

RING-O,D=2.4

92055-S037

$3.83

92066

PLUG

92066-S002

$4.17

92122

ROLLER

92122-S004

$1.63

92145

SPRING,OIL FILTER CAP

92145-S004

$1.49

92153

BOLT

92153-S002

$1.64

92153A

BOLT

92153-S132

$1.98

92172

SCREW

92172-S090

$1.64

92210

NUT

92210-S045

$1.42
