2005 Kawasaki KLX125L Cylinder Diagram

← All diagrams

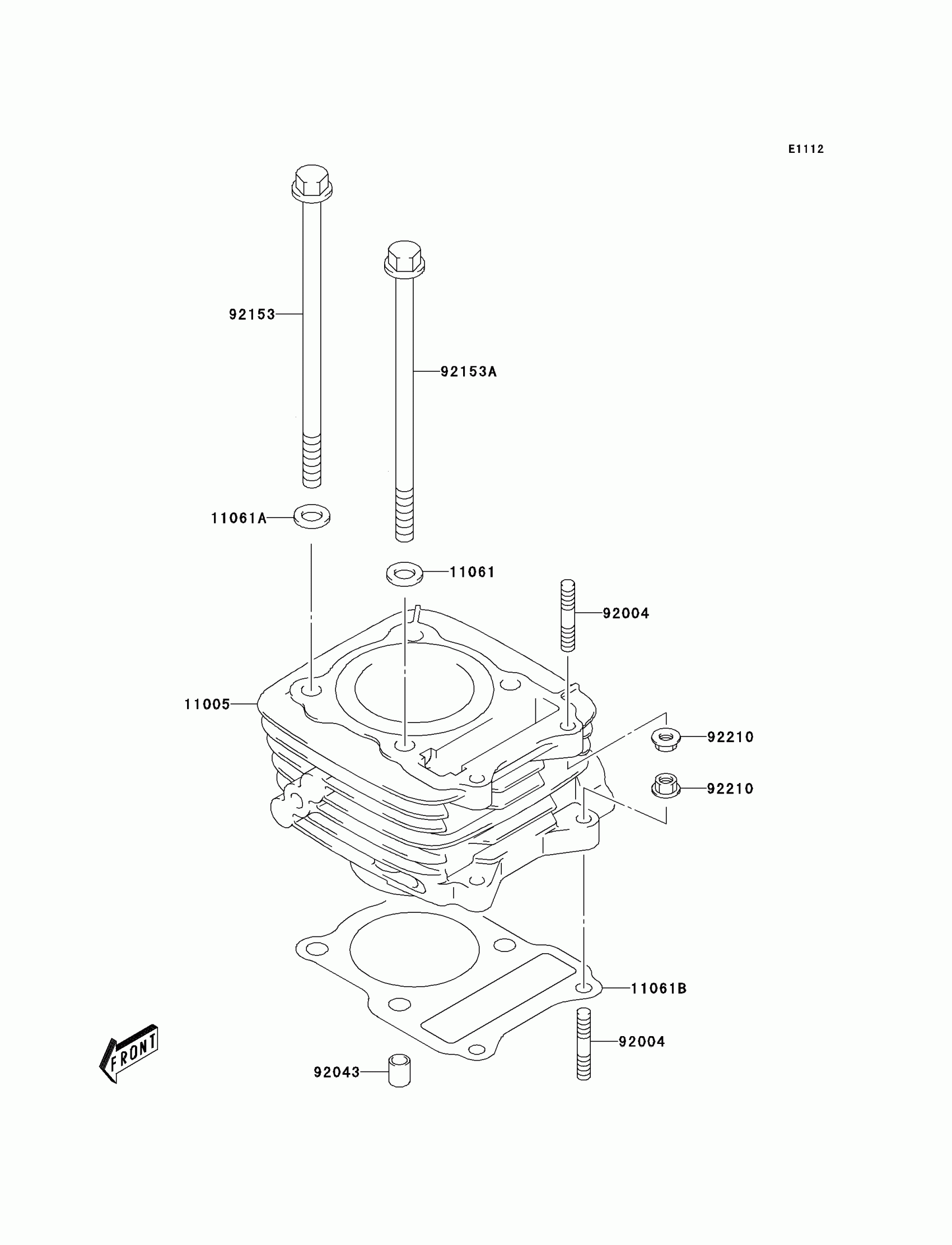

Find the part on the Cylinder diagram for your 2005 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KLX125L Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-S004

1

$360.95

In stock

11061

GASKET,8.5X19X2.3

11061-S032

1
Out of stock

11061A

GASKET,8.5X17X2.3

11061-S034

1

$2.76

In stock

11061B

GASKET,CYLINDER

11061-S035

1
Out of stock

92004

STUD

92004-S001

1
Out of stock

92043

PIN

92043-S019

1

$1.95

In stock

92153

BOLT,L=165

92153-S135

1

$7.68

In stock

92153A

BOLT,L=155

92153-S164

1

$7.68

In stock

92210

NUT

92210-S004

1
Out of stock
