2005 Kawasaki KLX125L Cylinder Head Diagram

← All diagrams

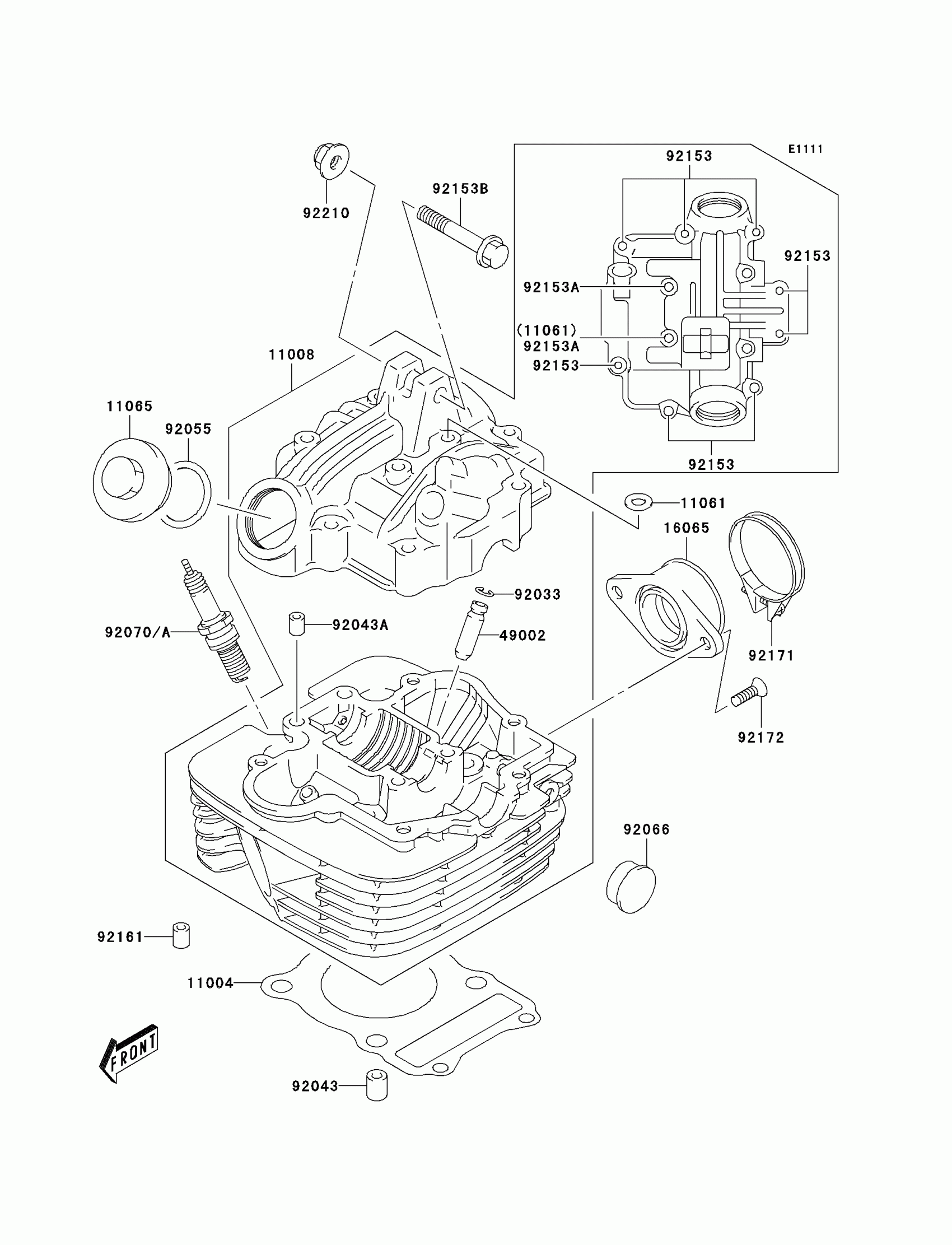

Find the part on the Cylinder Head diagram for your 2005 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KLX125L Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-S003

1

$13.44

In stock

11008

HEAD-COMP-CYLINDER

11008-S003

1
Out of stock

11061

GASKET,5.8X13X1.2

11061-S001

1

$2.08

In stock

11065

CAP,INSPECTION

11065-S014

1

$10.93

In stock

16065

HOLDER-CARBURETOR

16065-S005

1

$27.93

In stock

49002

GUIDE-VALVE

49002-S002

1

$19.90

In stock

92033

RING-SNAP

92033-S021

1
Out of stock

92043

PIN

92043-S002

1

$1.81

In stock

92043A

PIN,6.2X8X11

92043-S004

1

$1.81

In stock

92055

RING-O,D=3

92055-S036

1

$1.76

In stock

92066

PLUG

92066-S014

1

$5.63

In stock

92070

PLUG-SPARK,X24ESR-U(DN)

92070-S013

1
Out of stock

92070A

1

$2.92

In stock

92153

BOLT

92153-S130

1
Out of stock

92153A

BOLT

92153-S131

1

$1.98

In stock

92153B

BOLT

92153-S176

1

$3.76

In stock

92161

1

$4.10

In stock

92171

CLAMP,INTAKE PIPE

92171-S049

1
Out of stock

92172

SCREW

92172-S008

1

$1.64

In stock

92210

NUT

92210-S094

1
Out of stock
← Cylinder Engine Cover →
