2005 Kawasaki KLX125L Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2005 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

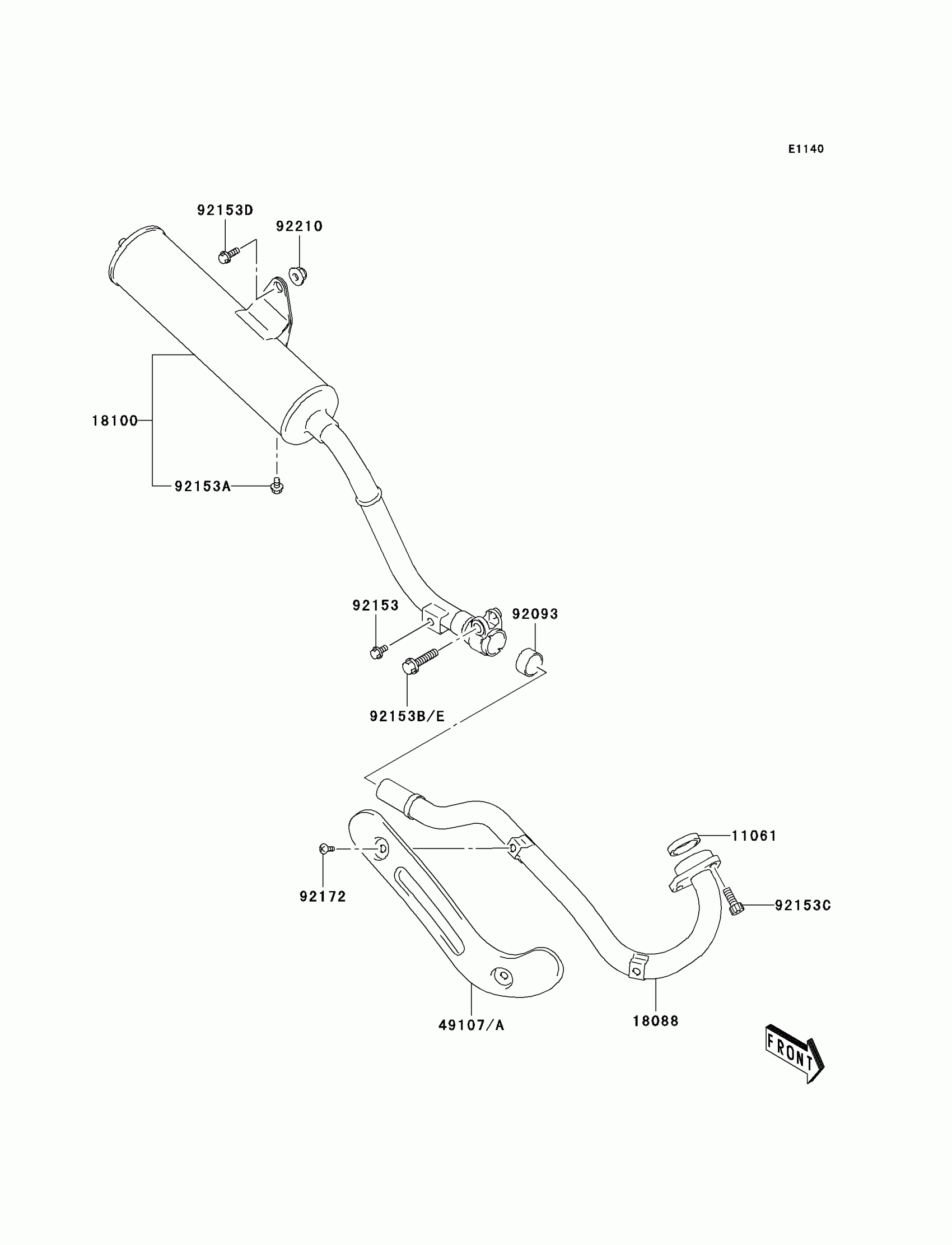

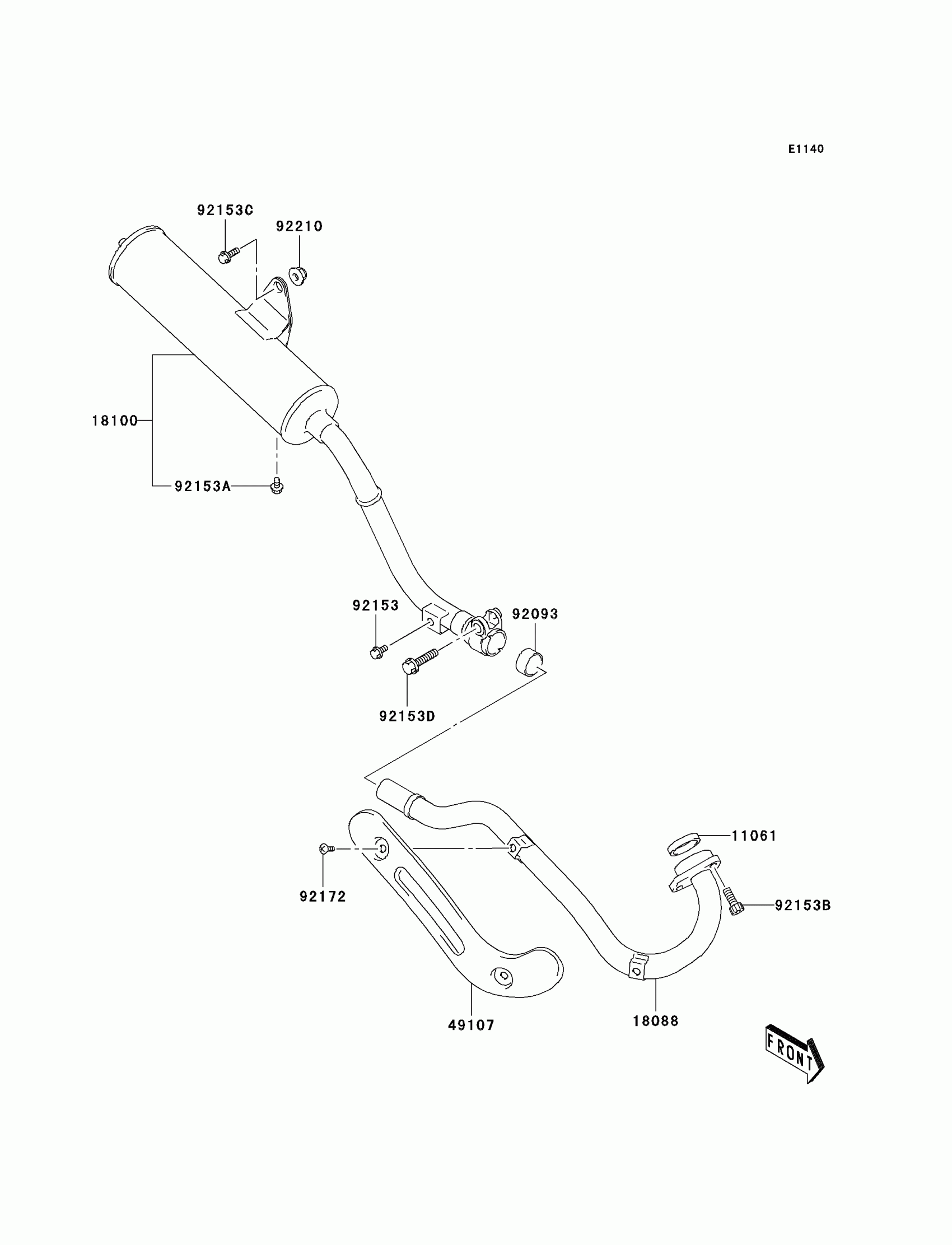

2005 Kawasaki KLX125L Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,EXHAUST PIPE

11061-S028

1

$8.44

In stock

18088

PIPE-EXHAUST

18088-S003

1

$81.68

In stock

18100

BODY-ASSY-MUFFLER

18100-S002

1

$181.87

In stock

49107A

COVER-EXHAUST PIPE

49107-S010

1
Out of stock

92093

SEAL

92093-S007

1

$15.80

In stock

92153

BOLT

92153-S015

1

$1.98

In stock

92153A

BOLT

92153-S017

1
Out of stock

92153C

BOLT

92153-S134

1
Out of stock

92153D

BOLT,8X23

92153-S149

1

$2.76

In stock

92153E

BOLT

92153-S372

1
Out of stock

92172

SCREW,6X10

92172-S094

1

$2.58

In stock

92210

NUT

92210-S029

1
Out of stock
