2005 Kawasaki KLX125L Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2005 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

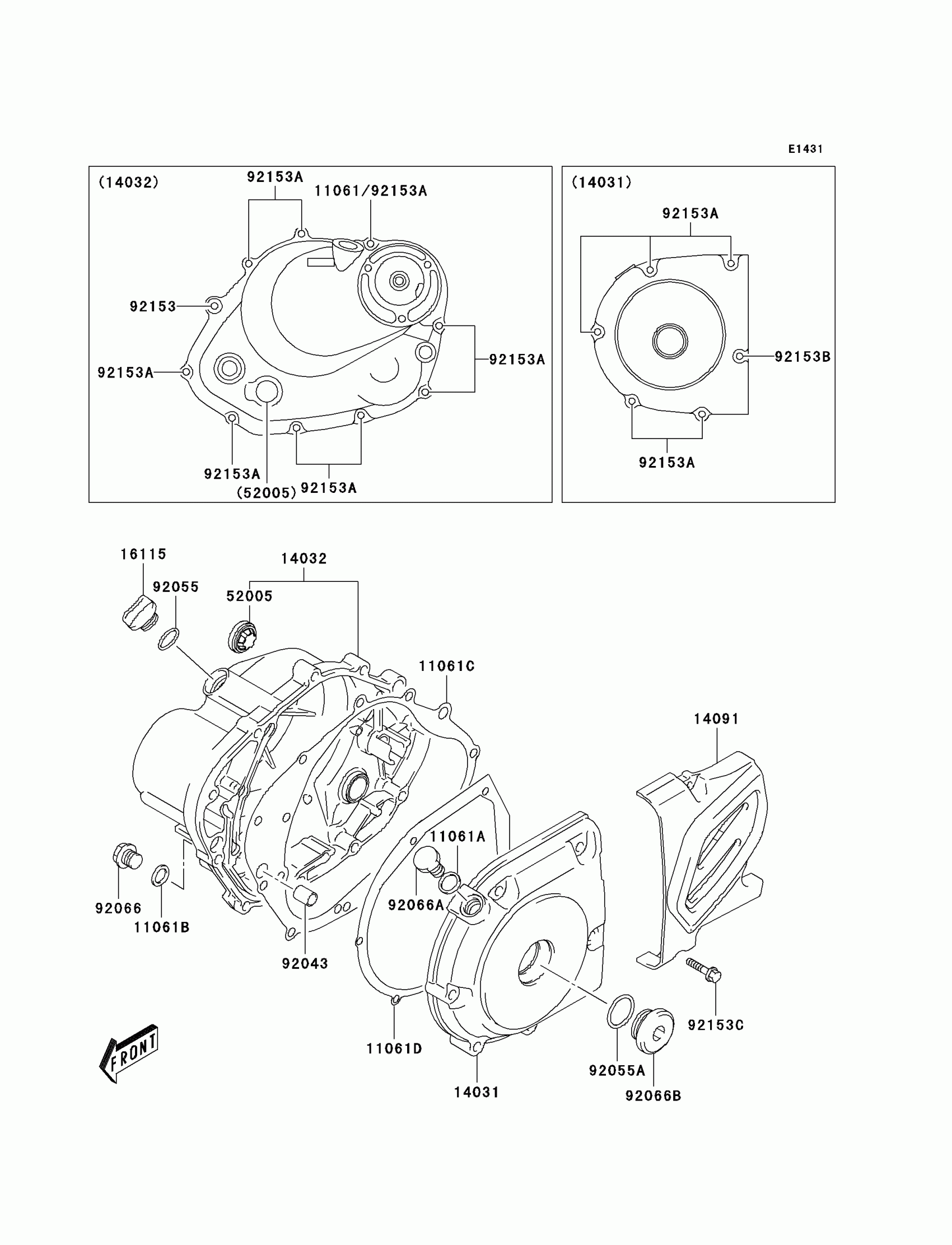

2005 Kawasaki KLX125L Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,5.8X13X1.2

11061-S001

1

$2.08

In stock

11061A

GASKET,12X16X2

11061-S005

1

$1.76

In stock

11061B

1

$1.02

In stock

11061C

GASKET,CLUTCH COVER

11061-S036

1

$14.34

In stock

11061D

GASKET,MAGNETO COVER

11061-S037

1
Out of stock

14031

COVER-GENERATOR

14031-S004

1
Out of stock

14032

COVER-CLUTCH

14032-S005

1

$175.45

In stock

14091

1

$57.82

In stock

16115

CAP-OIL FILLER

16115-S002

1

$5.69

In stock

52005

GAUGE,OIL LEVEL

52005-S004

1

$17.54

In stock

92043

PIN

92043-S003

1

$2.17

In stock

92055

RING-O,D=3.1

92055-S006

1

$2.07

In stock

92055A

RING-O,D=3.1

92055-S035

1
Out of stock

92066

PLUG

92066-S002

1

$4.17

In stock

92066A

PLUG

92066-S015

1

$2.90

In stock

92066C

PLUG,20X10

92066-S018

1

$11.58

In stock

92153

BOLT

92153-S005

1

$2.51

In stock

92153A

BOLT

92153-S062

1

$1.58

In stock

92153B

BOLT

92153-S128

1

$1.98

In stock

92153C

BOLT

92153-S173

1

$1.98

In stock
