2022 Kawasaki KLX110L Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2022 Kawasaki KLX110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

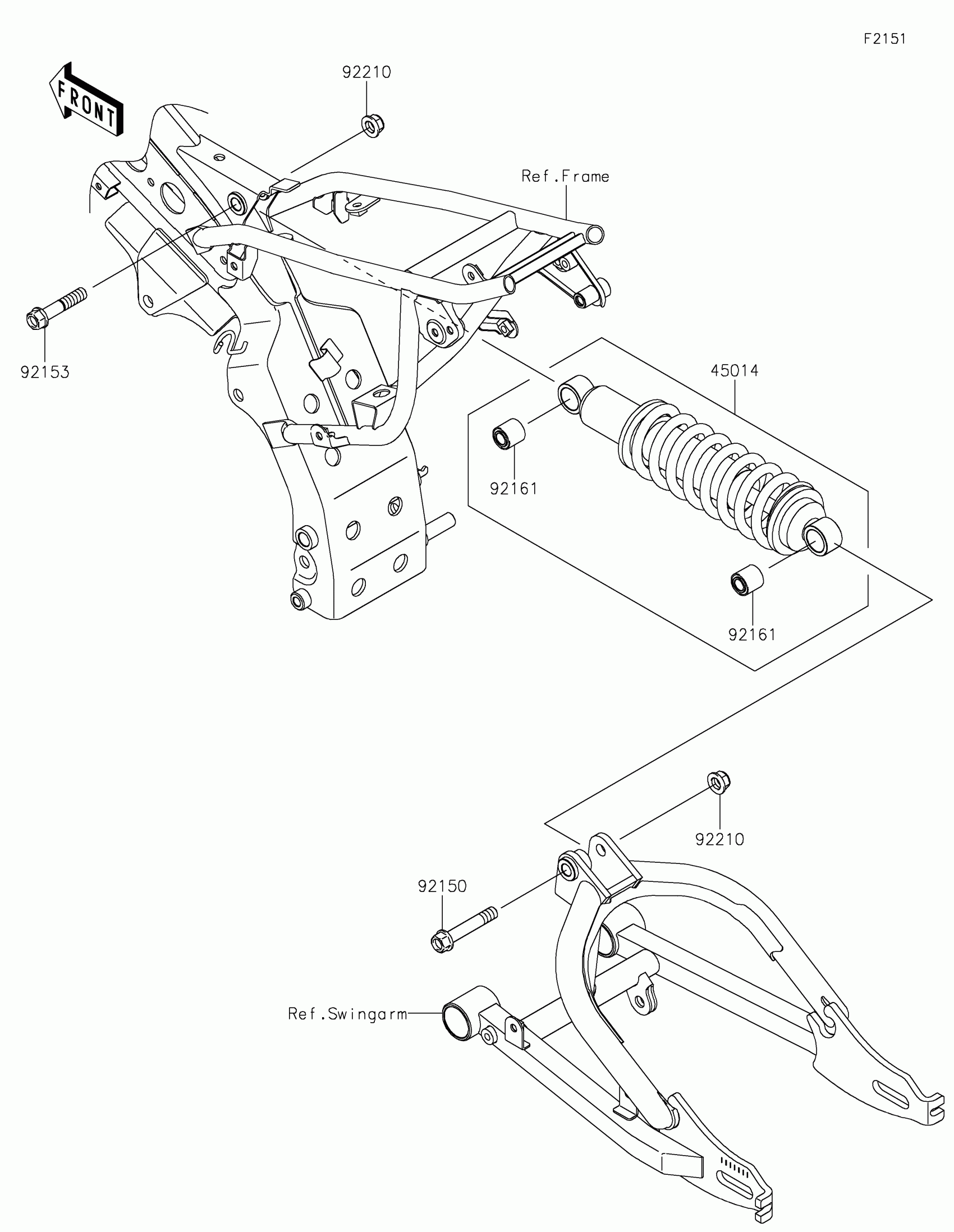

2022 Kawasaki KLX110L Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

45014

SHOCKABSORBER,BLACK

45014-0676-10

1
Out of stock

92150

BOLT,FLANGED,10X57

92150-1227

1
Out of stock

92153

BOLT,FLANGED,10X50

92153-1139

1
Out of stock

92161

DAMPER,SHOCKABSORBER

92161-0100

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock
