Description

Price

41034

DRUM-ASSY,REAR BRAKE

41034-0010

$70.25

41035

PANEL-ASSY-BRAKE,RR

41035-0084

$153.73

41048

SHOE-BRAKE

41048-1141

$17.53

41050

CAM-BRAKE

41050-1082

$6.13

41051

SEAL,BRAKE CAM

41051-001

$3.25

41053

LEVER-BRAKE CAM

41053-0021

$10.62

41068

AXLE,RR

41068-0016

$21.83

41085

INDICATOR

41085-1085

$20.42

42033

COUPLING-ASSY,RR HUB

42033-1223

$60.27

42036

SLEEVE,RR HUB COUPLING,L=29

42036-1292

$6.85

42041

SPROCKET-HUB,38T

42041-0082

$34.71

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,CASTLE,12MM

92015-1870

$4.78

92045

BEARING-BALL,6201ZC3/5C

92045-1308

$10.63

92049

SEAL-OIL,SC26X42X8

92049-1490

$2.28

92057

CHAIN,DRIVE,DID420DXX90L

92057-0183

$29.27

92058

JOINT-CHAIN,DRIVE

92058-0006

$9.53

92081

SPRING,BRAKE SHOE

92081-1766

$6.13

92151

BOLT,FLANGED,6X34

92151-1209

$2.82

92152

COLLAR,RR AXLE,LH,L=14.8

92152-1405

$7.18

92152A

COLLAR,RR AXLE,RH,L=32

92152-1406

$8.98

92152B

COLLAR,REAR BRAKE DRUM,L=58

92152-1409

$8.98

92153

BOLT,10X36

92153-1120

$7.98

92161

DAMPER,RR HUB SHOCK

92161-0084

$7.15

92210

NUT,LOCK,10MM

92210-1351

$5.84

550

PIN-COTTER,2.5X30

550S2530

$1.85

601

BEARING-BALL,#6004UG

601B6004UG

$37.82

601A

BEARING-BALL,#6301UG

601B6301UG

$30.00

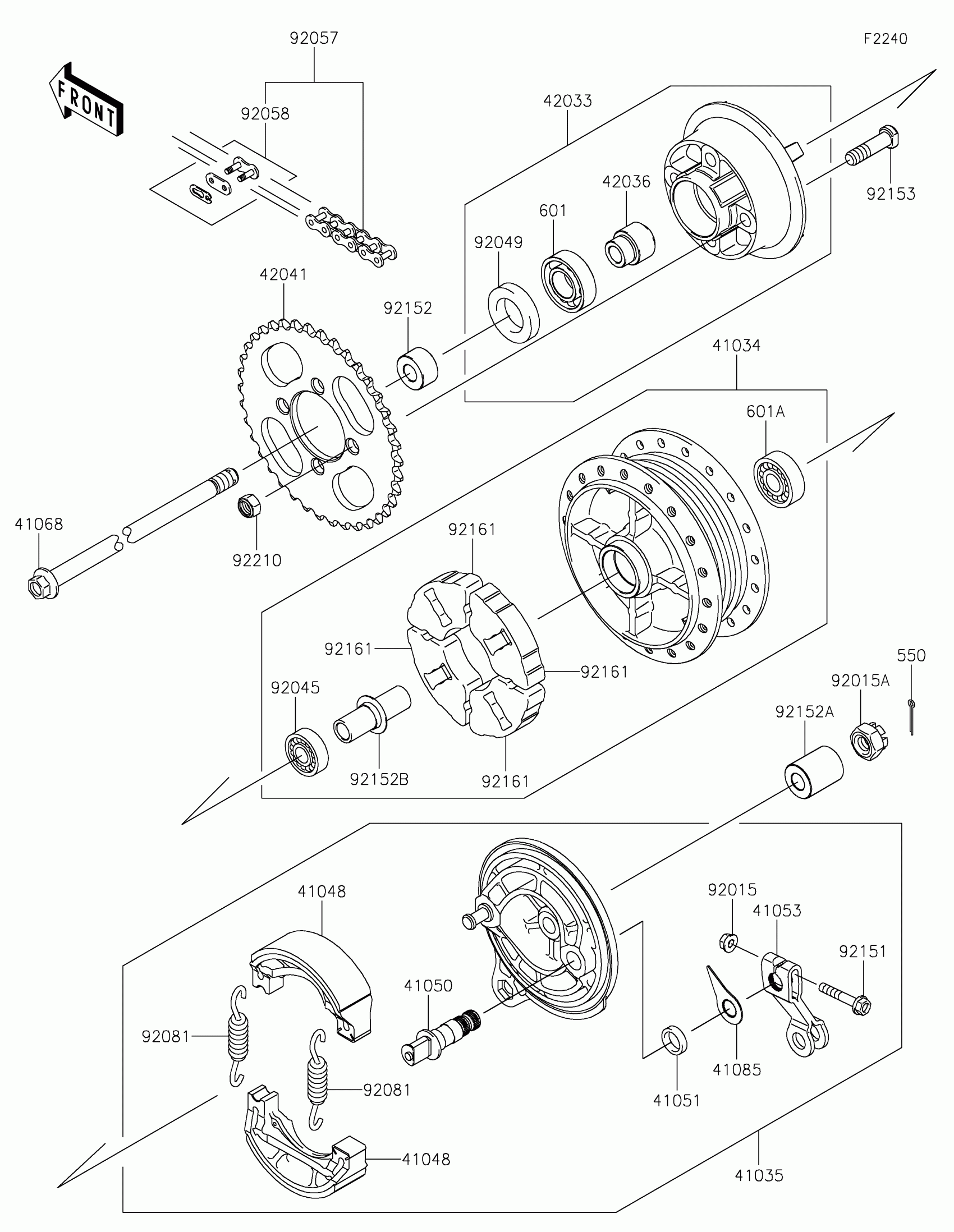

Kawasaki KLX110L Rear Hub Diagram
