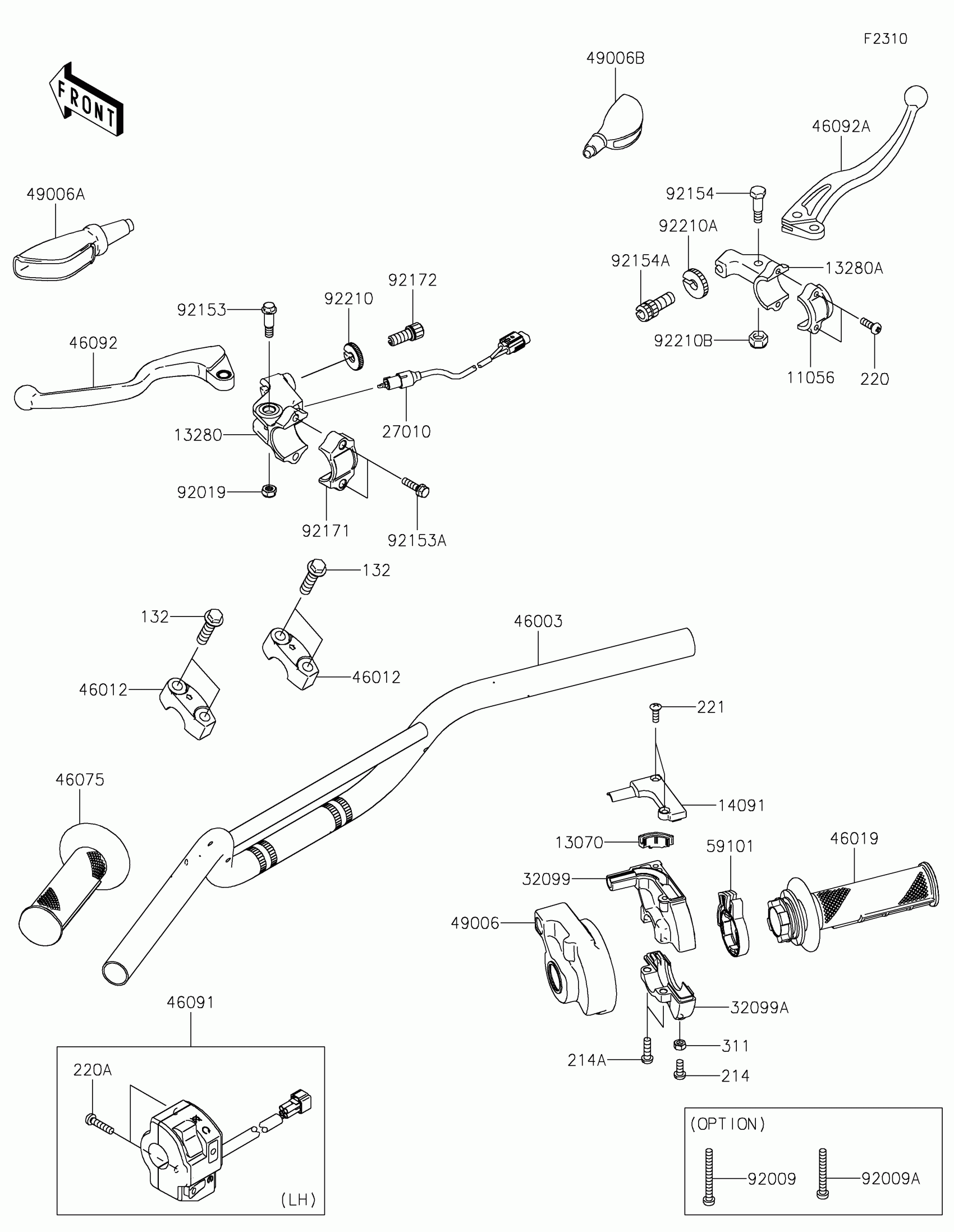

Kawasaki KLX110L Handlebar Diagram

#

Description
Price

11056

BRACKET,LEVER HOLDER

11056-0150

$15.85

13070

GUIDE,THROTTLE

13070-0083

$5.87

13280

HOLDER,CLUTCH LEVER

13280-0256

$27.18

13280A

HOLDER,BRAKE LEVER

13280-0362

$45.33

14091

COVER,THROTTLE CASE,UPP

14091-0873

$6.32

27010

SWITCH,CLUTCH

27010-0109

$35.48

32099

CASE,THROTTLE,UPP

32099-0037

$17.79

32099A

CASE,THROTTLE,LWR

32099-0045

$14.13

46003

HANDLE,P.SILVER

46003-0175-458

$85.97

46012

HOLDER-HANDLE,UPP,P.SILVER

46012-0101-458

$20.16

46019

GRIP-ASSY,THROTTLE

46019-0023

$26.45

46075

GRIP,LH

46075-0072

$11.10

46091

HOUSING-ASSY-CONTROL,LH

46091-0226

$92.20

46092

LEVER-GRIP,CLUTCH

46092-0026

$16.09

46092A

LEVER-GRIP,BRAKE

46092-0037

$15.41

49006

BOOT,THROTTLE CASE

49006-0075

$10.24

49006A

BOOT,LEVER HOLDER

49006-0080

$13.19

49006B

BOOT,LEVER HOLDER

49006-1017

$14.12

59101

REEL,THROTTLE

59101-0005

$8.99

92009

SCREW,5X47

92009-1989

$2.00

92009A

SCREW,5X42

92009-1998

$2.00

92019

NUT,LOCK,6MM

92019-008

$3.12

92153

BOLT,6MM

92153-1897

$6.62

92153A

BOLT,5X20

92153-1898

$3.54

92154

BOLT,LEVER SET

92154-0329

$7.15

92154A

BOLT,CABLE ADJUSTER

92154-0330

$7.92

92171

CLAMP,LEVER HOLDER

92171-1671

$6.62

92172

SCREW,CABLE ADJUST,8MM

92172-0330

$3.51

92210

NUT,CABLE ADJUST

92210-0411

$4.95

92210A

NUT

92210-0593

$7.92

92210B

NUT,LOCK,6MM

92210-0594

$3.12

132

BOLT-FLANGED-SMALL,8X30

132BA0830

$3.39

214

SCREW-PAN+-,5X12

214AB0512

$2.27

214A

SCREW-PAN+-,5X18

214AB0518

$1.85

220

SCREW-PAN-CROS,5X14

220AA0514

$3.38

220A

SCREW-PAN-CROS,5X22

220AB0522

$0.89

221

SCREW-CSK-CROS,4X12

221AB0412

$1.89

311

NUT-HEX,5MM

311AB0500

$0.46
