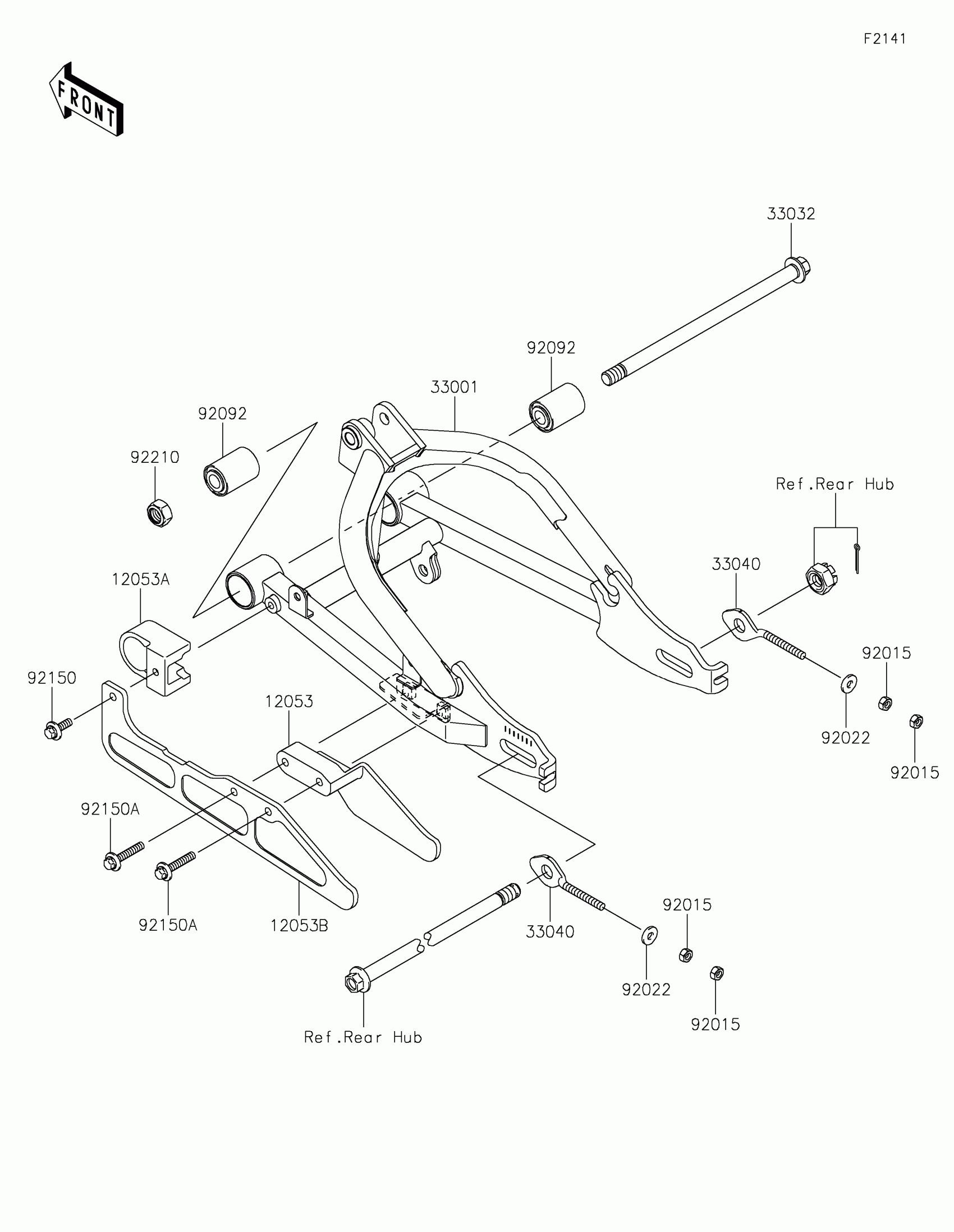

Kawasaki KLX110L Swingarm Diagram

Description

Price

12053

GUIDE-CHAIN,RR,INSIDE

12053-0165

$10.63

12053A

GUIDE-CHAIN,FR

12053-1459

$11.07

12053B

GUIDE-CHAIN,RR,OUTSIDE

12053-1460

$12.34

33001

ARM-COMP-SWING,P.SILVER

33001-0200-458

$271.18

33032

SHAFT-SWING ARM

33032-0035

$28.82

33040

ADJUSTER-CHAIN

33040-1006

$7.02

92015

NUT,6MM

92015-1391

$1.77

92022

WASHER,6.5X16X2

92022-1565

$2.99

92092

BUSHING-RUBBER

92092-1088

$5.87

92150

BOLT,6X20

92150-1339

$3.35

92150A

BOLT,FLANGED,6X35

92150-1527

$3.29

92210

NUT,LOCK,12MM

92210-1373

$7.20
