Description

Price

41034

DRUM-ASSY,FRONT BRAKE

41034-1343

$253.71

41035

PANEL-ASSY-BRAKE,FR

41035-1543

$191.50

41048

SHOE-BRAKE

41048-1083

$17.79

41050

CAM-BRAKE

41050-1031

$24.15

41053

LEVER-BRAKE CAM,FR

41053-1027

$48.41

41068

AXLE,FR

41068-0015

$17.60

92001

BOLT,5X25

92001-1695

$4.17

92027

COLLAR,FRONT DRUM,L=54

92027-1470

$13.51

92027A

COLLAR,FRONT AXLE,L=14.5

92027-1472

$10.80

92049

SEAL-OIL,DD20X35X7

92049-0052

$16.19

92081

SPRING,BRAKE SHOE

92081-1564

$4.14

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

311

NUT-HEX,5MM

311BA0500

$3.85

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

550

PIN-COTTER,2.5X20

550S2520

$1.85

601

BEARING-BALL,#6200UUC3

601B6200UU

$14.38

601A

BEARING-BALL,#6300UUC3

601B6300UU

$23.41

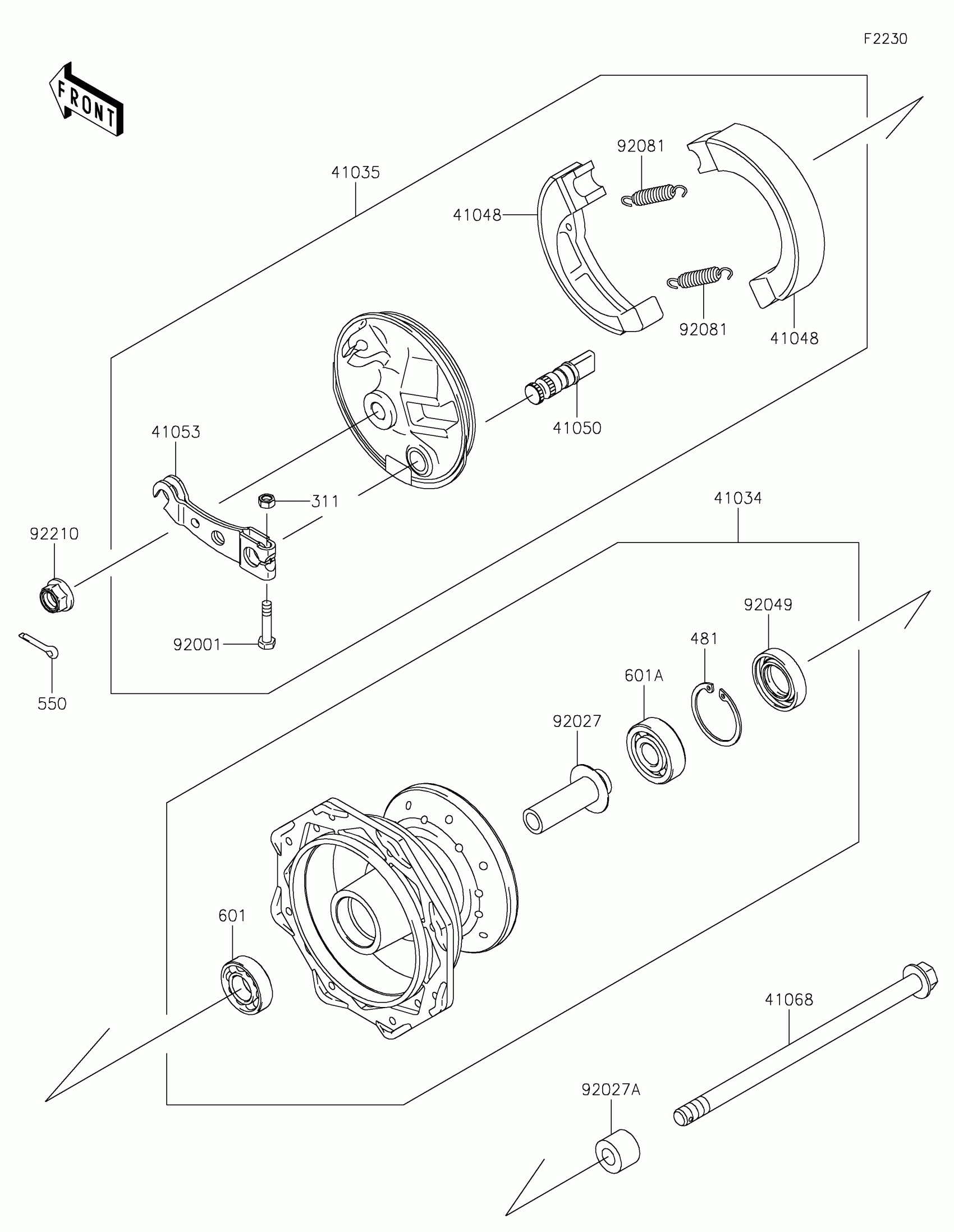

Kawasaki KLX110L Front Hub Diagram
