2022 Kawasaki KLX110L Kickstarter Mechanism Diagram

← All diagrams

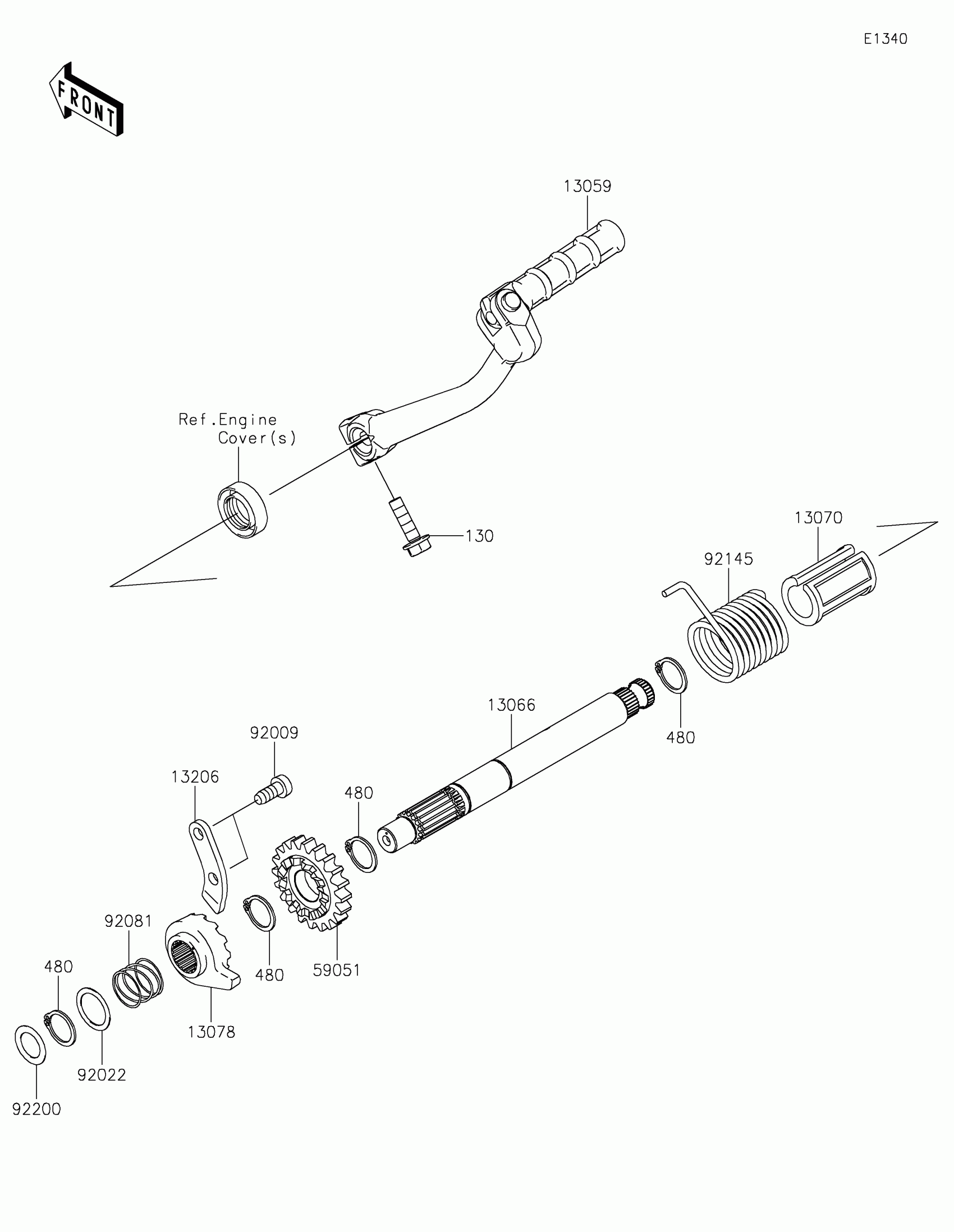

Find the part on the Kickstarter Mechanism diagram for your 2022 Kawasaki KLX110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX110L Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13059

LEVER-KICK

13059-0046

1
Out of stock

13066

SHAFT-KICK

13066-0062

1
Out of stock

13070

GUIDE,KICK SHAFT

13070-1035

1
Out of stock

13078

RATCHET

13078-0557

1
Out of stock

13206

GUIDE-KICK

13206-1006

1
Out of stock

59051

GEAR-SPUR

59051-0715

1
Out of stock

92009

SCREW,TAPPING

92009-1104

1
Out of stock

92022

WASHER,16.8X22X0.5

92022-315

1
Out of stock

92081

SPRING,RATCHET

92081-122

1
Out of stock

92145

SPRING,KICK STARTER

92145-0626

1
Out of stock

92200

WASHER,13.2X20X0.5

92200-0571

1
Out of stock

130

BOLT-FLANGED,6X22

130CA0622

1

$2.20

In stock

480

CIRCLIP-TYPE-C,16MM

480J1600

1
Out of stock
