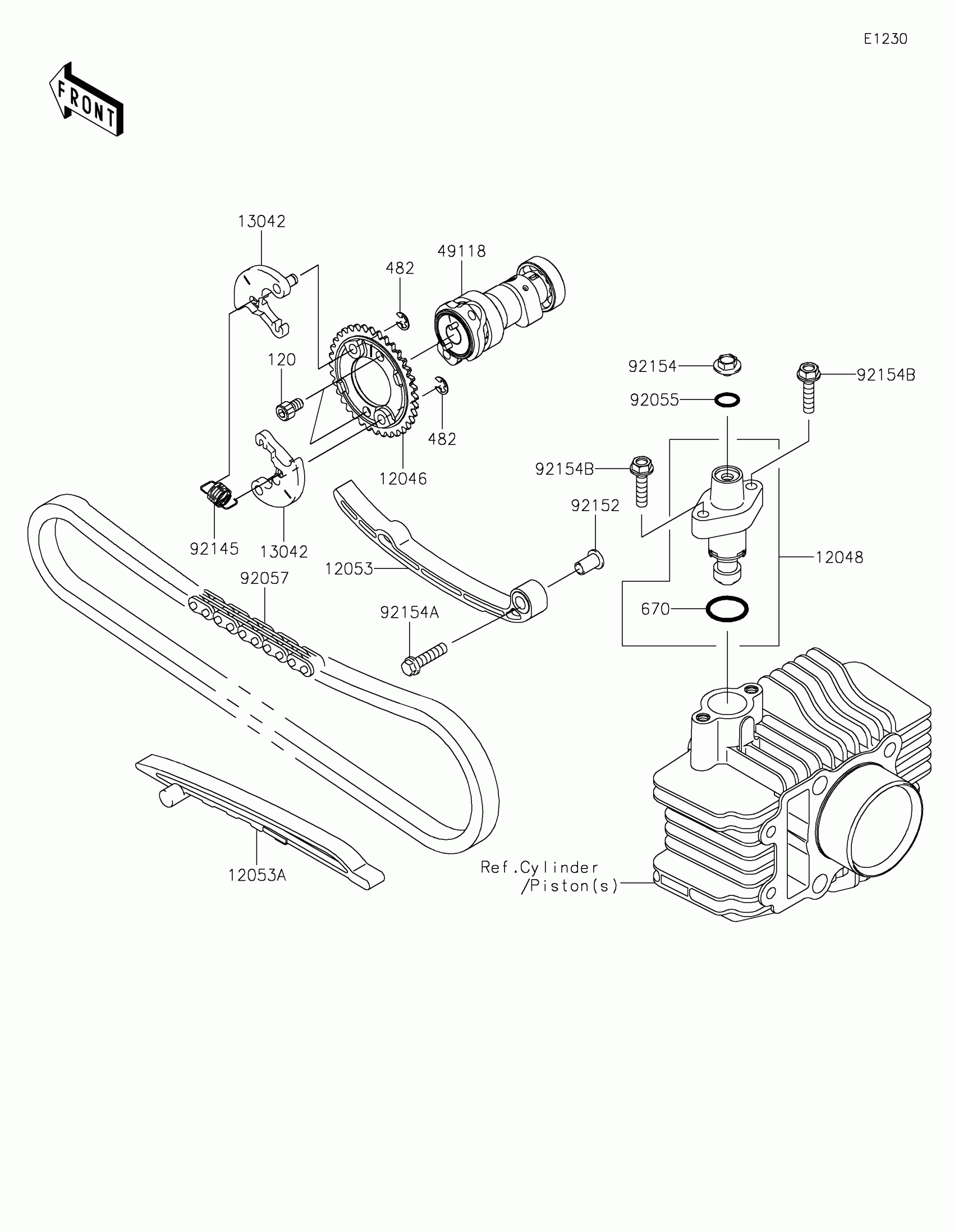

Kawasaki KLX110L Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,36T

12046-0591

$76.57

12048

TENSIONER-ASSY

12048-1164

$49.01

12053

GUIDE-CHAIN

12053-0185

$45.54

12053A

GUIDE-CHAIN

12053-1461

$3.01

13042

WEIGHT,DECOMP

13042-1141

$44.85

49118

CAMSHAFT-COMP

49118-0880

$148.12

92055

RING-O,9.8X2.4

92055-0060

$2.15

92057

CHAIN,CAM,94L

92057-0610

$42.45

92145

SPRING

92145-0132

$2.20

92152

COLLAR,CHAIN GUIDE

92152-1369

$2.19

92154

BOLT,FLANGED,6X6

92154-0536

$1.66

92154A

BOLT,FLANGED,6X25

92154-1156

$1.68

92154B

BOLT,FLANGED,6X25

92154-1196

$0.73

120

BOLT-SOCKET,6X10

120CA0610

$1.27

482

CIRCLIP-TYPE-E,5MM

482J5000

$2.36

670

O RING,21MM

670D2021

$5.13
