Description

Price

11009

GASKET,8.2X14X1.0

11009-1344

$2.11

11061

GASKET,DRAIN PLUG

11061-0421

$4.45

13070

GUIDE

13070-1319

$0.95

14080

CRANKCASE,RH

14080-0080

$108.98

14080A

CRANKCASE,LH

14080-0705

$98.09

32151

PIPE

32151-1961

$5.58

39193

PIPE-OIL

39193-1042

$44.60

92004

STUD,8X192

92004-0030

$5.59

92043

PIN,6.2X8X14

92043-0099

$2.82

92045

BEARING-BALL,6203CE J

92045-0119

$10.67

92045A

BEARING-BALL,6804

92045-0789

$30.44

92046

BEARING-NEEDLE,HK1312

92046-1148

$14.13

92049

SEAL-OIL

92049-1429

$10.47

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92062

NOZZLE,5X11.5X12

92062-1090

$1.59

92066

PLUG,OIL DRAIN,12X15

92066-0768

$4.42

92150

BOLT,BANJO,8X20

92150-1556

$4.33

92153

BOLT,8X15.5

92153-1823

Unavailable

92171

CLAMP

92171-1055

$3.85

92191

TUBE,BREATHER

92191-1724

$6.60

132

BOLT-FLANGED-SMALL,6X50

132BD0650

$4.24

132A

BOLT-FLANGED-SMALL,6X75

132BD0675

$5.22

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.14

220A

SCREW-PAN-CROS,6X12

220AD0612

$3.24

235

SCREW-PAN-WP-CROS,5X10

235AA0510

$2.79

235A

SCREW-PAN-WP-CROS,6X14

235AA0614

$3.75

601

BEARING-BALL

601A6201

$8.12

670

O RING,9.8X1.9

670B1510

$3.29

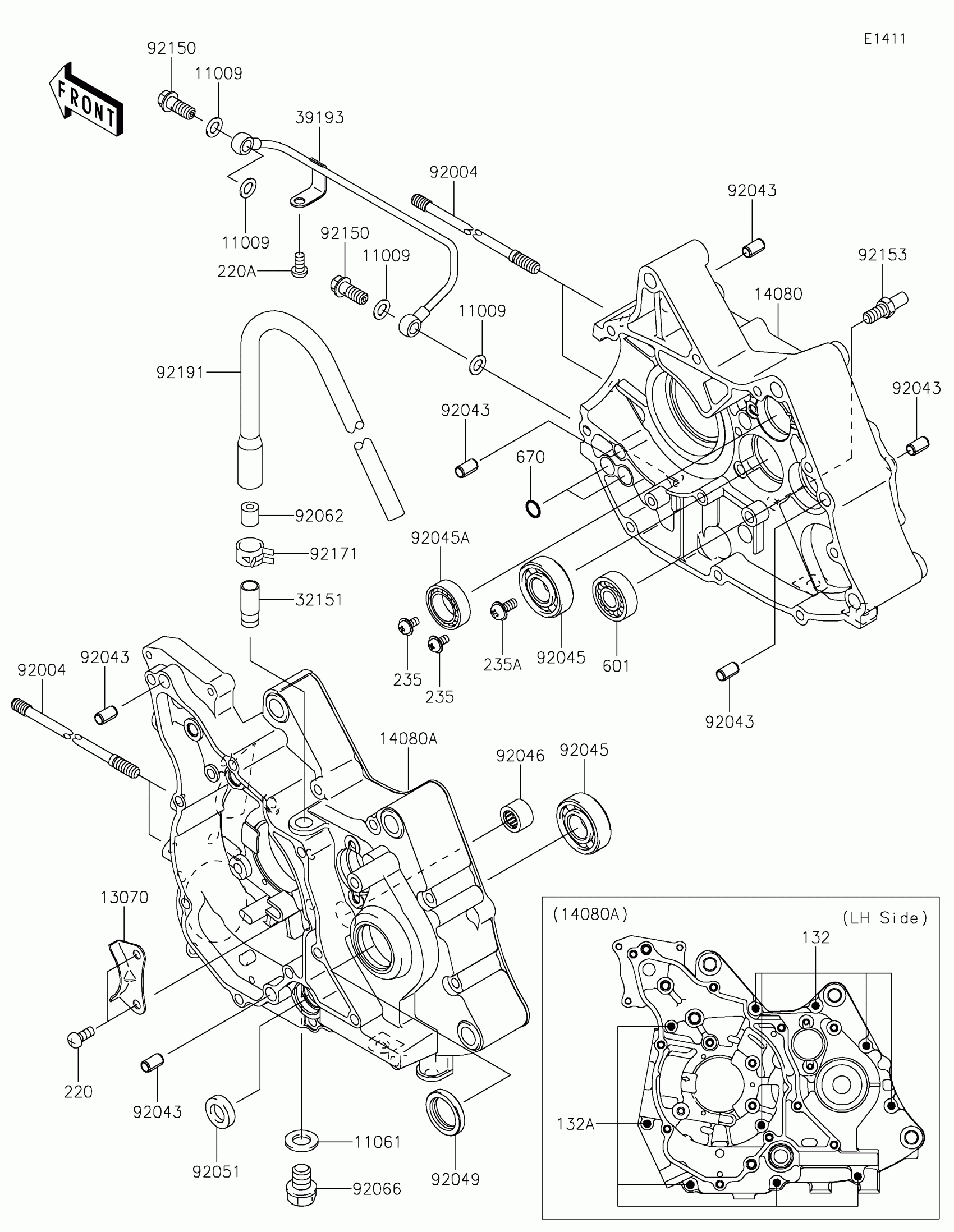

Kawasaki KLX110L Crankcase Diagram
