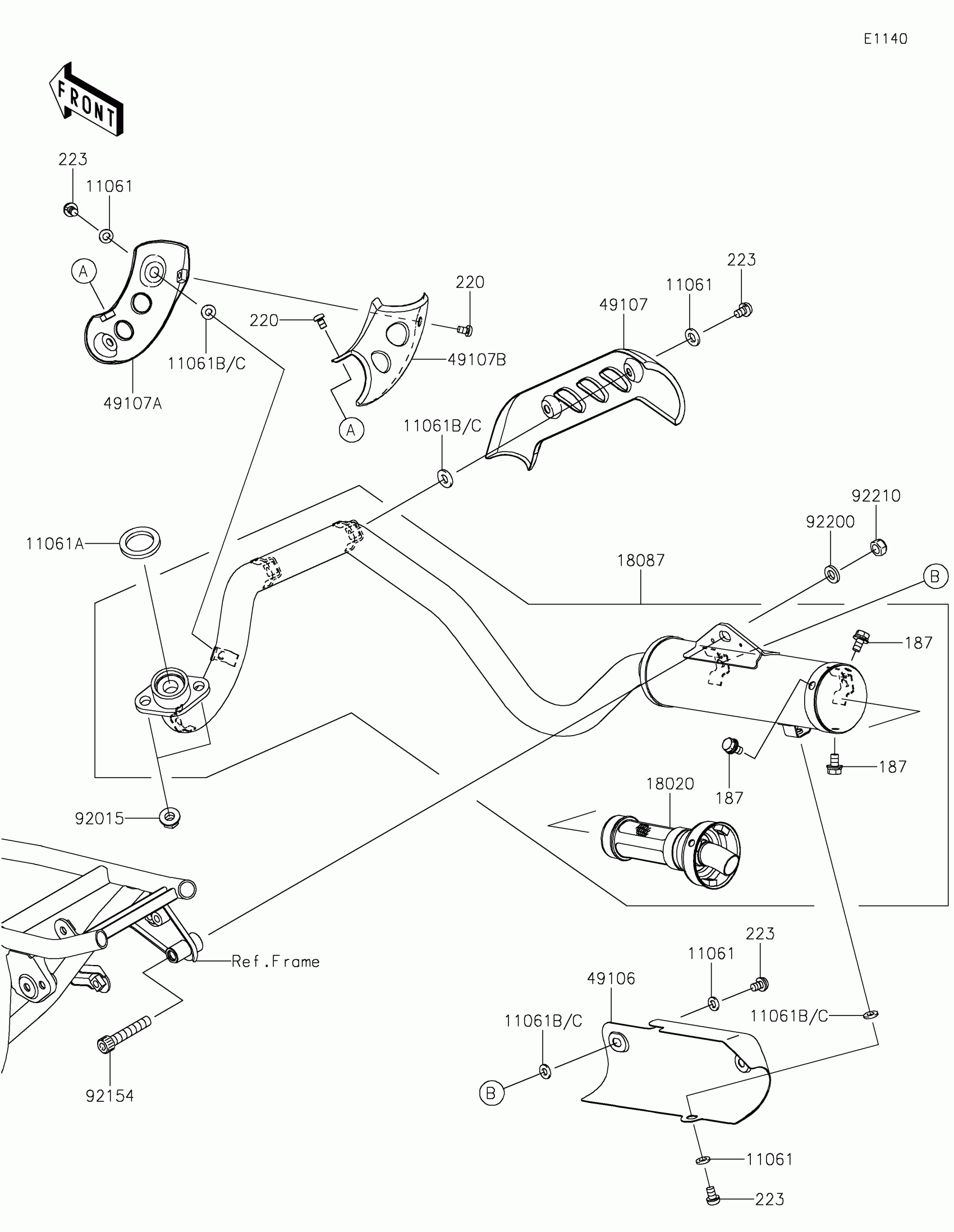

Kawasaki KLX110L Muffler(s) Diagram

Description

Price

11061

GASKET,6.2X11.5X1.5

11061-0372

Unavailable

11061A

GASKET,EXHAUST PIPE

11061-1112

$3.32

11061C

GASKET

11061-1385

$3.26

18020

BAFFLE

18020-0084

$154.13

18087

MUFFLER

18087-0266

$283.12

49106

COVER-MUFFLER

49106-0094

$35.81

49107

COVER-EXHAUST PIPE

49107-1213

$29.97

49107A

COVER-EXHAUST PIPE

49107-1217

$17.03

49107B

COVER-EXHAUST PIPE

49107-1221

$12.22

92015

NUT,8MM

92015-1402

$3.57

92154

BOLT,SOCKET,8X45

92154-0361

$2.69

92200

WASHER,8.1X15X2.3

92200-0449

$3.27

92210

NUT,LOCK,8MM

92210-0606

$2.69

187

BOLT-UPSET-WSP,6X12

187AA0612

$0.95

220

SCREW-PAN-CROS,5X8

220AB0508

$0.42

223

SCREW-PAN-WS-CROS,6X10

223AB0610

$3.14
