2022 Kawasaki KLX110L Cylinder/piston Diagram

← All diagrams

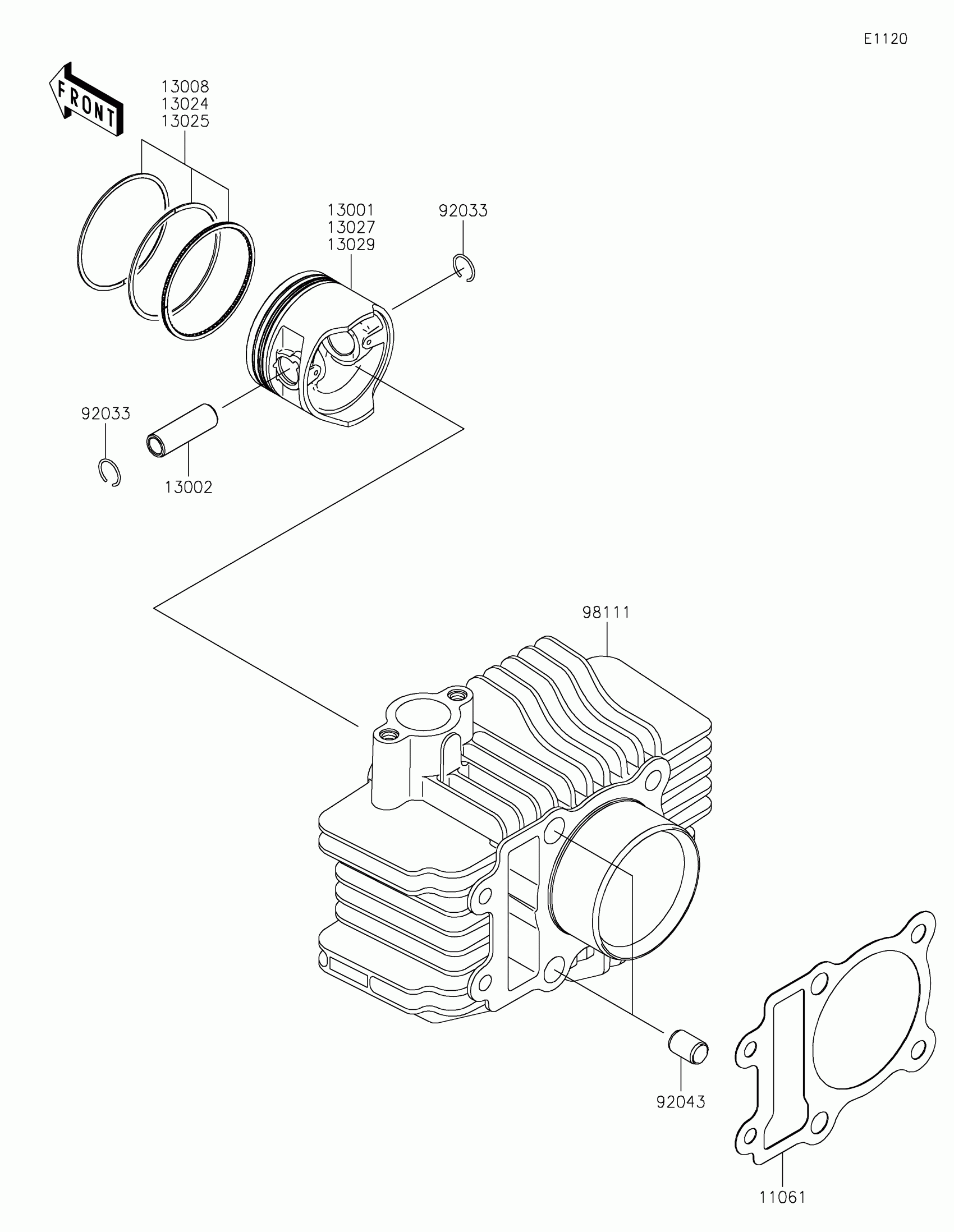

Find the part on the Cylinder/piston diagram for your 2022 Kawasaki KLX110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX110L Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

1

$9.37

In stock

13001

PISTON-ENGINE,STD

13001-0118

1

$54.12

In stock

13002

PIN-PISTON

13002-0031

1

$7.06

In stock

13008

RING-SET-PISTON

13008-0011

1

$46.04

In stock

13024

1

$51.87

In stock

13025

1

$51.87

In stock

13027

PISTON-ENGINE LL

13027-0015

1

$58.69

In stock

13029

PISTON-ENGINE L

13029-0020

1

$58.69

In stock

92033

RING-SNAP

92033-1072

1

$3.10

In stock

92043

PIN,8.2X10X14

92043-0100

1

$2.95

In stock

98111

CYLINDER-COMP-ENGINE

98111-0031

1
Out of stock
