2005 Kawasaki KLX110 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

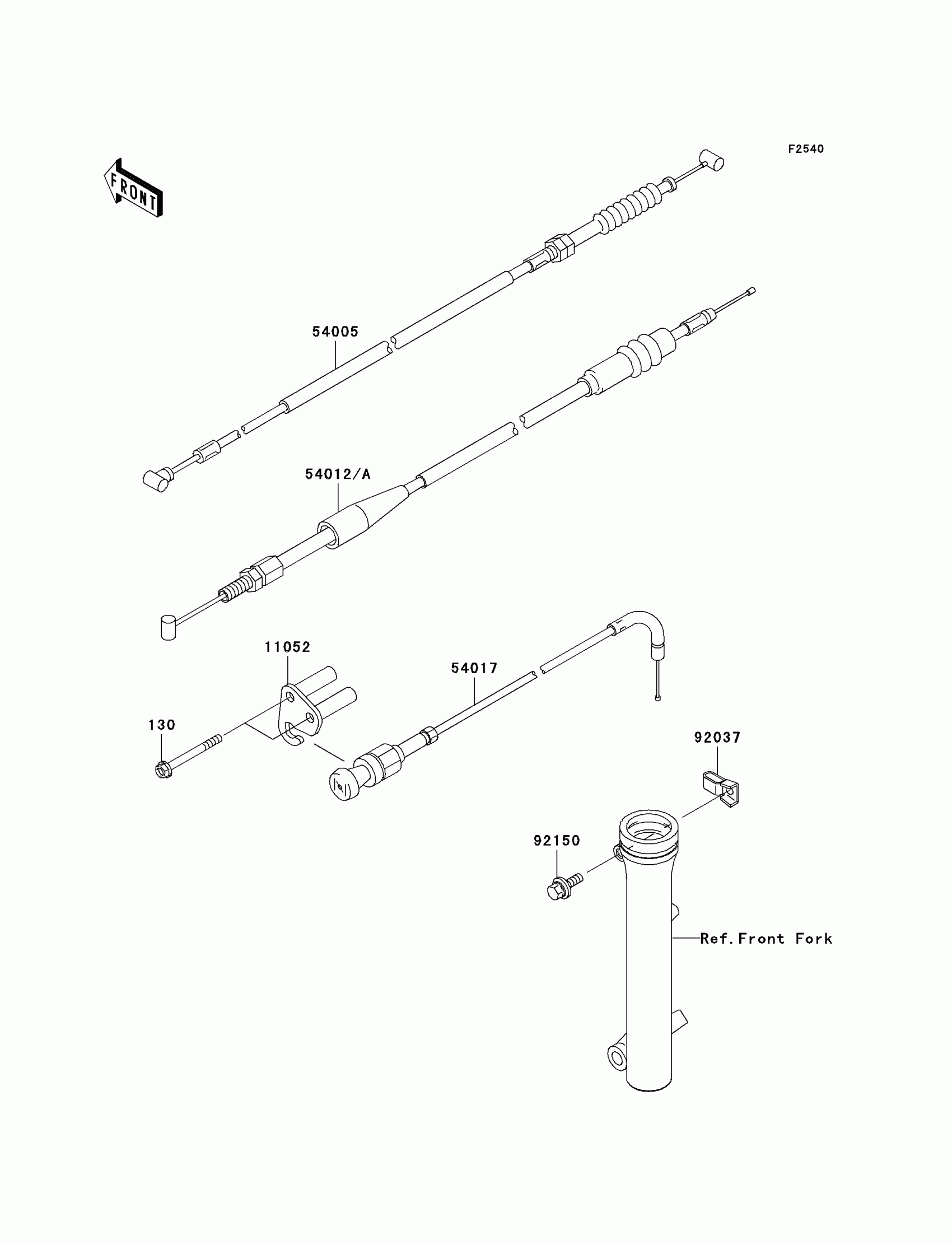

2005 Kawasaki KLX110 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130B0550

1
Out of stock

11052

BRACKET,STARTER

11052-1625

1

$17.31

In stock

54005

CABLE-BRAKE

54005-1214

1

$38.02

In stock

54012

CABLE-THROTTLE

54012-0100

1
Out of stock

54017

CABLE-STARTER

54017-1218

1

$20.55

In stock

92037

CLAMP,BRAKE CABLE

92037-1353

1

$11.22

In stock

92150

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock
