2005 Kawasaki KLX110 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

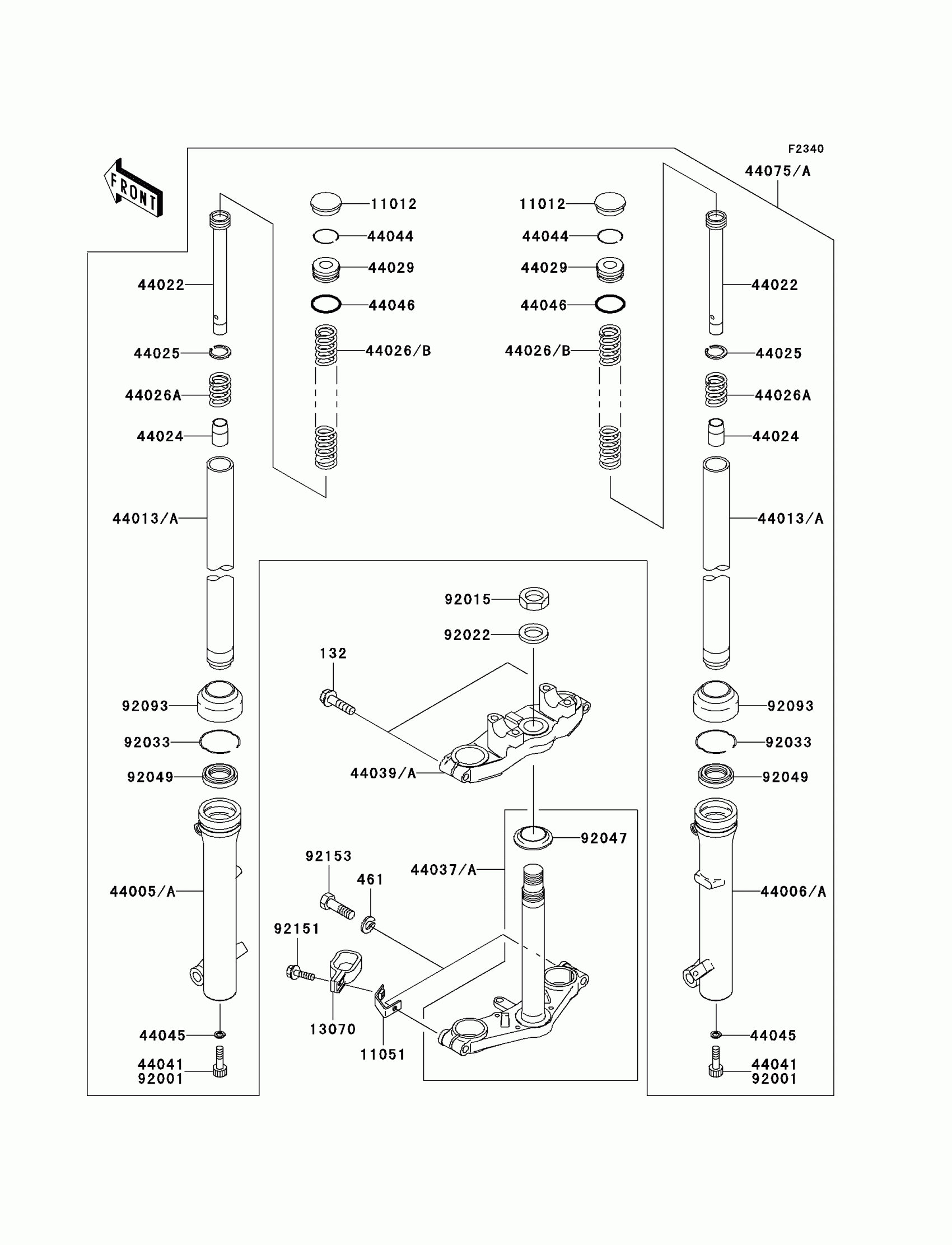

2005 Kawasaki KLX110 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0835

1
Out of stock

461

WASHER SPRING 10MM

461F1000

1
Out of stock

11012

CAP,RUBBER,FORK TOP

11012-1067

1

$5.66

In stock

11051

1

$15.12

In stock

13070

GUIDE,BRAKE HOSE

13070-1349

1

$8.86

In stock

44005

1

$258.64

In stock

44006

1

$258.64

In stock

44013

PIPE-FORK INNER

44013-0018

1

$205.15

In stock

44022

CYLINDER-FORK

44022-1346

1

$61.33

In stock

44024

CAP-OIL-LOCK

44024-1071

1

$19.97

In stock

44025

RING-FORK PISTON

44025-1061

1

$9.07

In stock

44026

SPRING-FRONT FORK

44026-0034

1

$50.29

In stock

44026A

1

$5.44

In stock

44029

SEAT-FORK SPRING

44029-022

1

$11.12

In stock

44037

HOLDER-FORK UNDER

44037-0016

1

$287.89

In stock

44039

HOLDER-FORK UPPER

44039-0013

1

$224.31

In stock

44044

RING-SNAP

44044-023

1

$4.80

In stock

44045

1

$4.88

In stock

44046

RING-O

44046-025

1

$5.71

In stock

44075

DAMPER-SET-FORK

44075-0028

1

$825.63

In stock

92001

BOLT,FORK CYLINDER

92001-1464

1

$4.93

In stock

92015

1

$13.20

In stock

92022

WASHER,STEERING STEM

92022-1873

1
Out of stock

92033

1

$4.14

In stock

92047

RACE,STEERING STEM BEARING

92047-013

1
Out of stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1069

1
Out of stock

92093

DUST SHIELD,FORK

92093-1054

1

$13.70

In stock

92151

BOLT,FLANGED,5X16

92151-1637

1

$3.69

In stock

92153

BOLT,10X35

92153-1199

1
Out of stock
