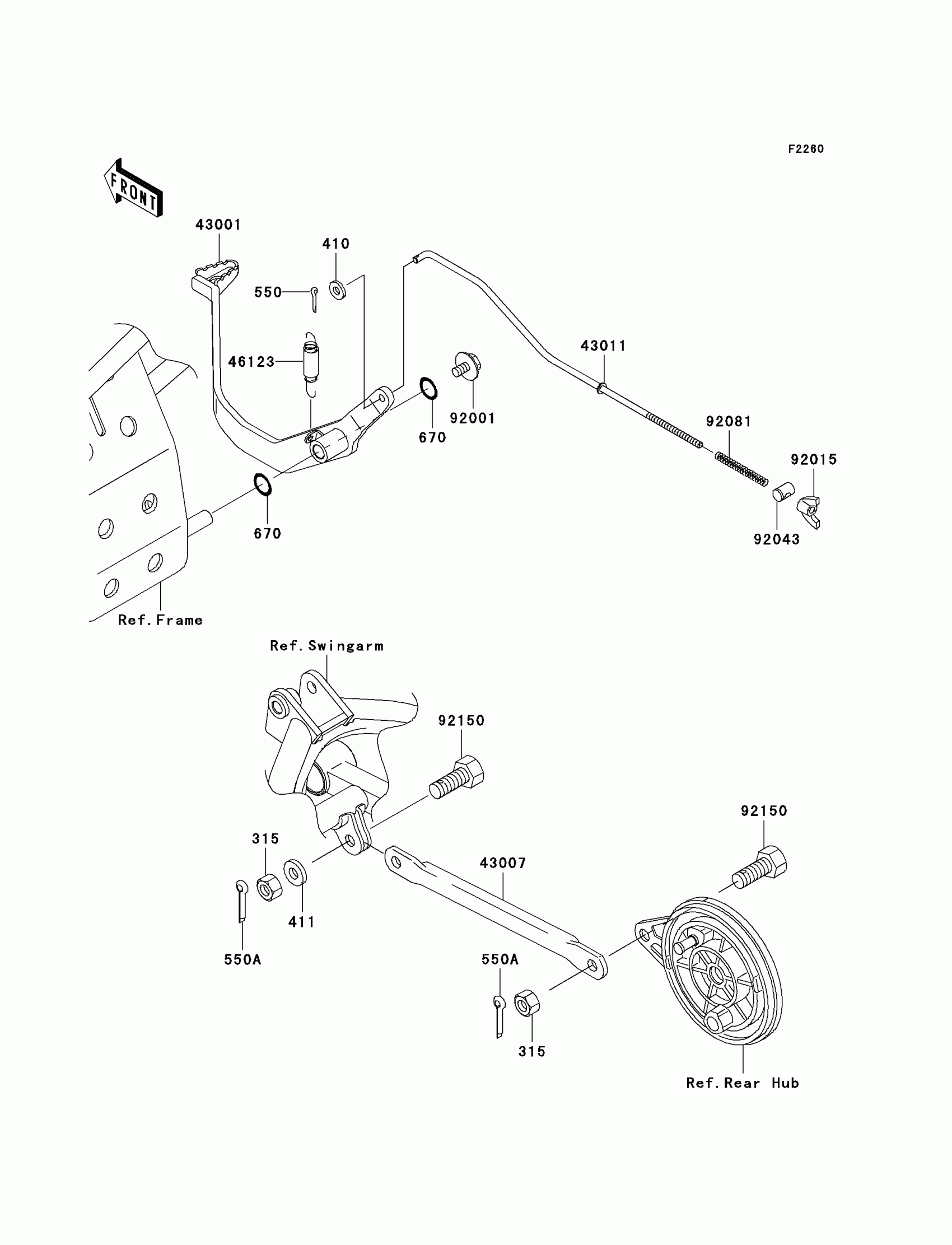

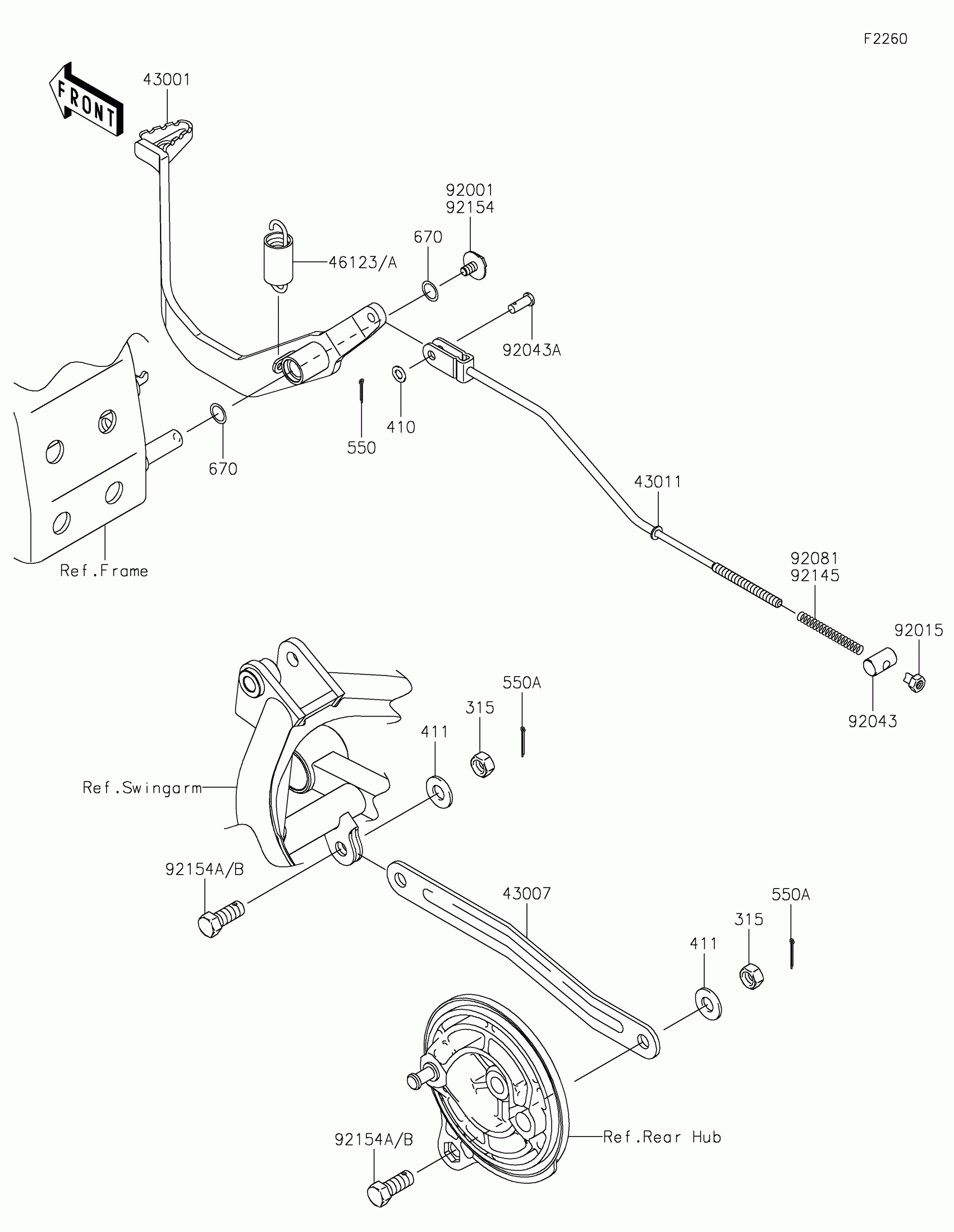

Find the part on the Brake Pedal diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KLX110 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

315

NUT-HEX-FINE,10MM

315G1000

1
Out of stock

410

1

$1.19

In stock

411

WASHER-PLAIN,10MM

411B1000

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

550A

PIN-COTTER,2.0X20

550D2020

1
Out of stock

670

O RING,12MM

670B2012

1

$2.58

In stock

43001

LEVER-BRAKE,PEDAL

43001-1445

1

$59.14

In stock

43007

ROD-TORQUE

43007-1203

1

$54.06

In stock

43011

ROD-BRAKE

43011-1186

1

$23.46

In stock

46123

1

$6.03

In stock

92001

BOLT,FLANGED,6X10

92001-1034

1

$8.16

In stock

92015

NUT,WING,6MM

92015-4004

1

$5.81

In stock

92043

PIN,BRAKE ROD

92043-039

1

$5.06

In stock

92081

SPRING,BRAKE ROD

92081-1688

1

$3.69

In stock

92150

BOLT,10X25

92150-1873

1

$4.20

In stock
