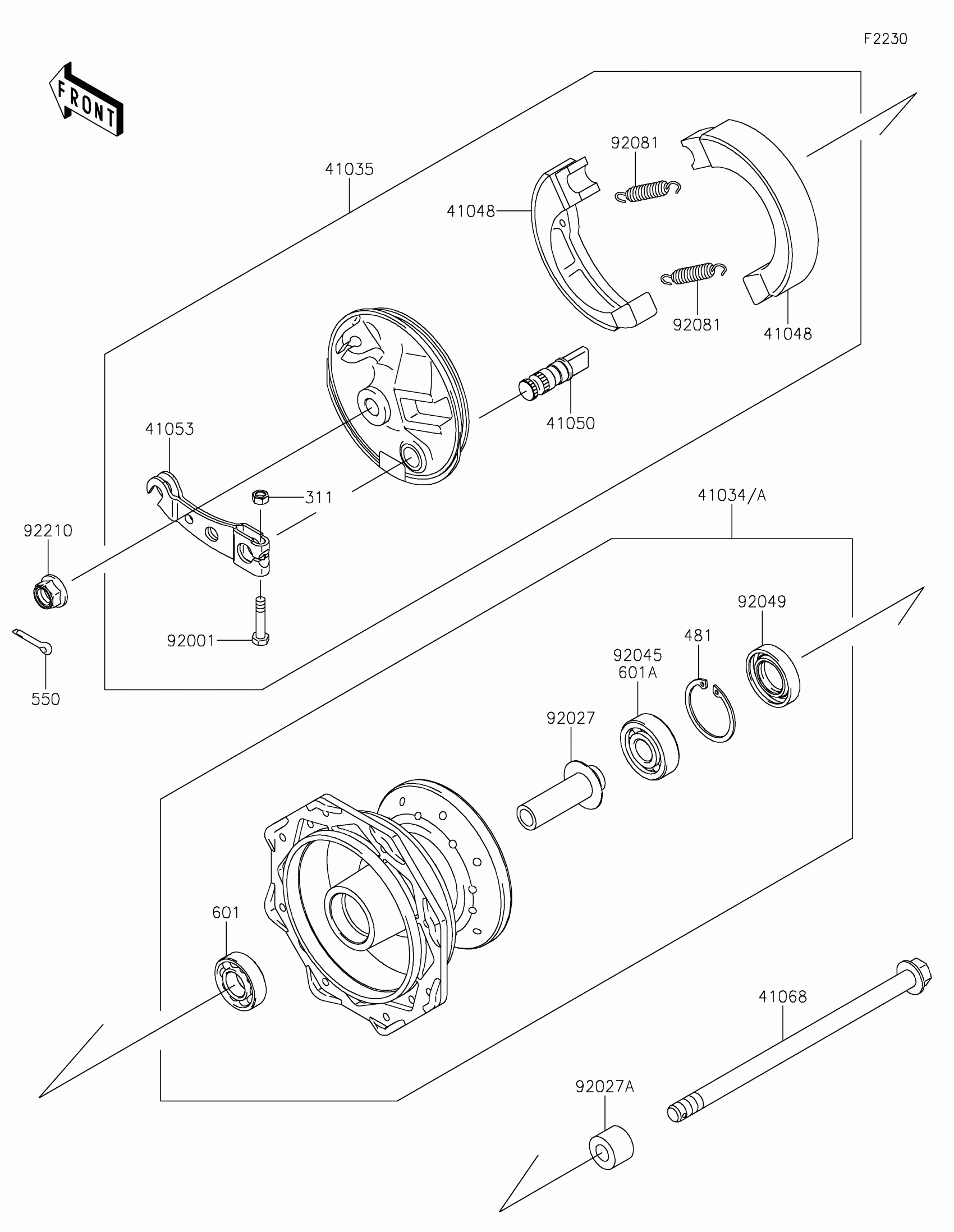

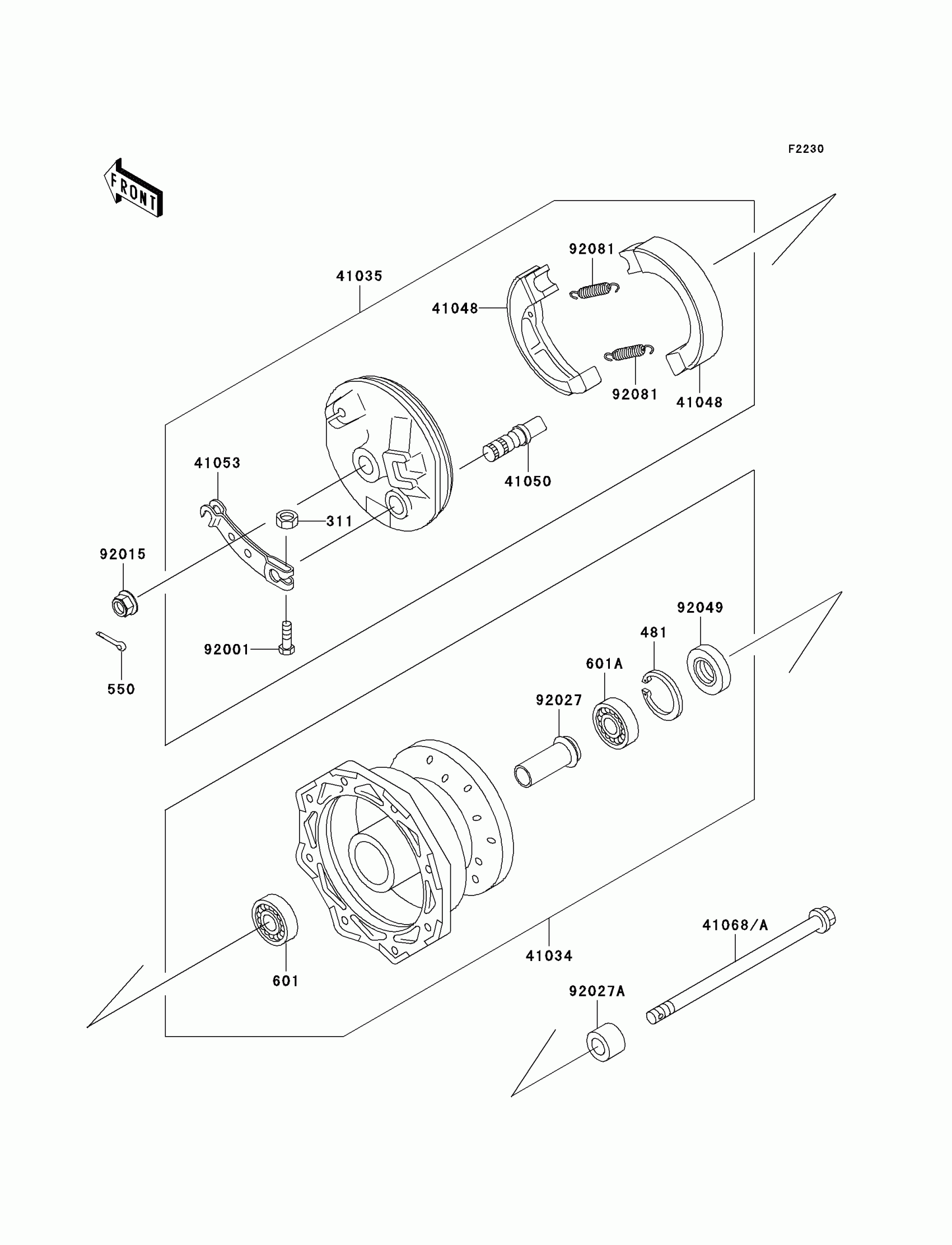

Find the part on the Front Hub diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KLX110 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

311

NUT-HEX

311G0500

1

$3.85

In stock

481

1

$1.64

In stock

550

1

$2.15

In stock

601

1

$17.83

In stock

601A

1

$23.41

In stock

41034

1

$253.71

In stock

41035

PANEL-ASSY-BRAKE,FR

41035-1543

1

$191.50

In stock

41048

SHOE-BRAKE

41048-1083

1

$20.41

In stock

41050

CAM-BRAKE

41050-1031

1

$24.15

In stock

41053

LEVER-BRAKE CAM,FR

41053-1027

1

$48.41

In stock

41068

AXLE,FR

41068-0015

1

$20.41

In stock

92001

BOLT,5X25

92001-1695

1

$4.17

In stock

92015

NUT,FLANGED,10MM

92015-1335

1
Out of stock

92027

1

$13.51

In stock

92027A

1

$11.26

In stock

92049

SEAL-OIL,DD20357

92049-1095

1
Out of stock

92081

SPRING,BRAKE SHOE

92081-1564

1

$4.34

In stock
