Find the part on the Swingarm diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

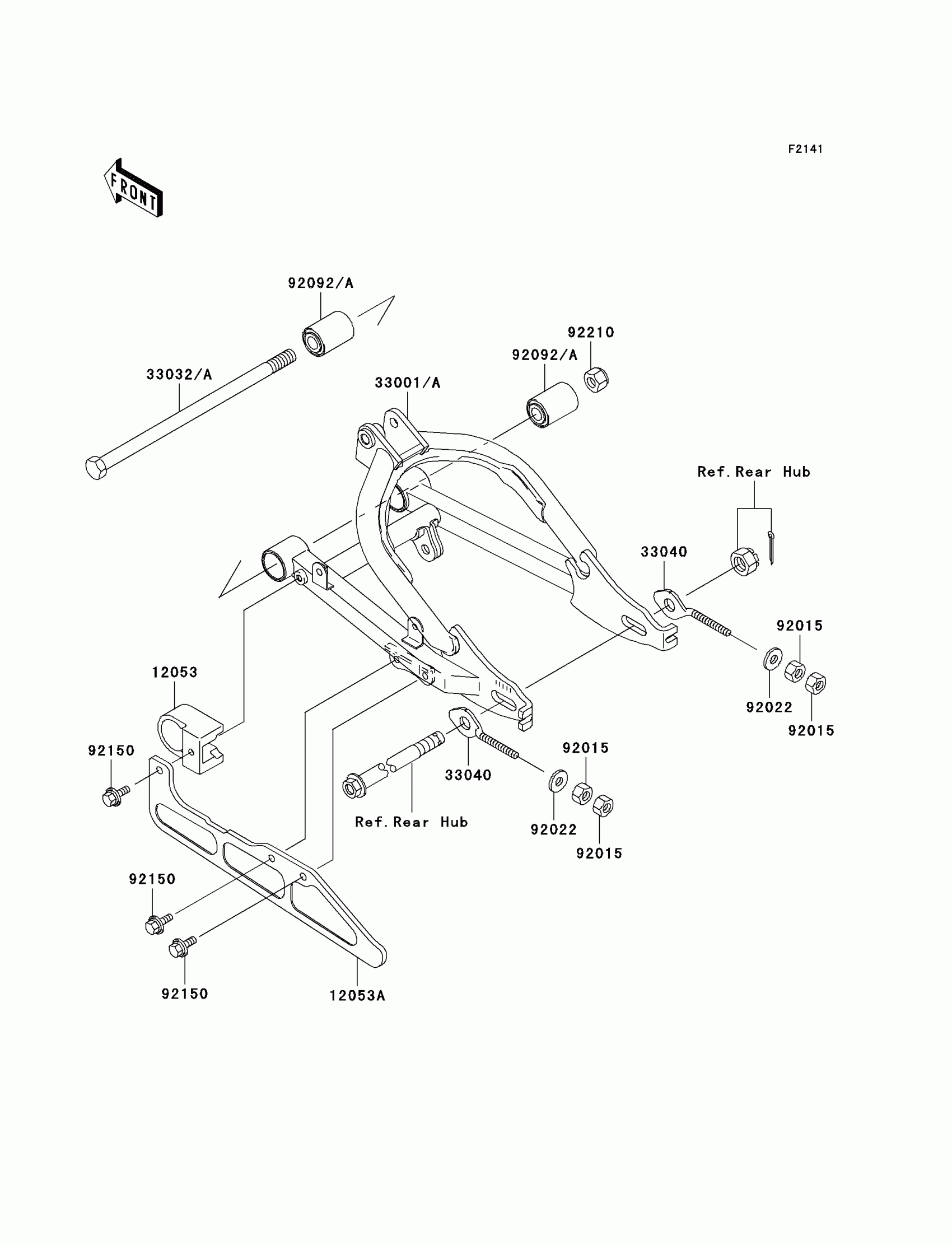

2005 Kawasaki KLX110 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

GUIDE-CHAIN,FR

12053-1459

1

$11.53

In stock

12053A

1

$12.86

In stock

33001A

ARM-COMP-SWING,P.SILVER

33001-1622-458

1

$307.09

In stock

33032

SHAFT-SWING ARM

33032-0007

1

$21.36

In stock

33040

ADJUSTER-CHAIN

33040-1006

1

$7.32

In stock

92015

NUT,6MM

92015-1391

1

$2.05

In stock

92022

WASHER,6.5X16X2

92022-1565

1

$3.12

In stock

92092A

BUSHING-RUBBER

92092-1088

1

$6.12

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92210

NUT,LOCK,12MM

92210-1373

1
Out of stock
