2020 Kawasaki KLX®300R Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

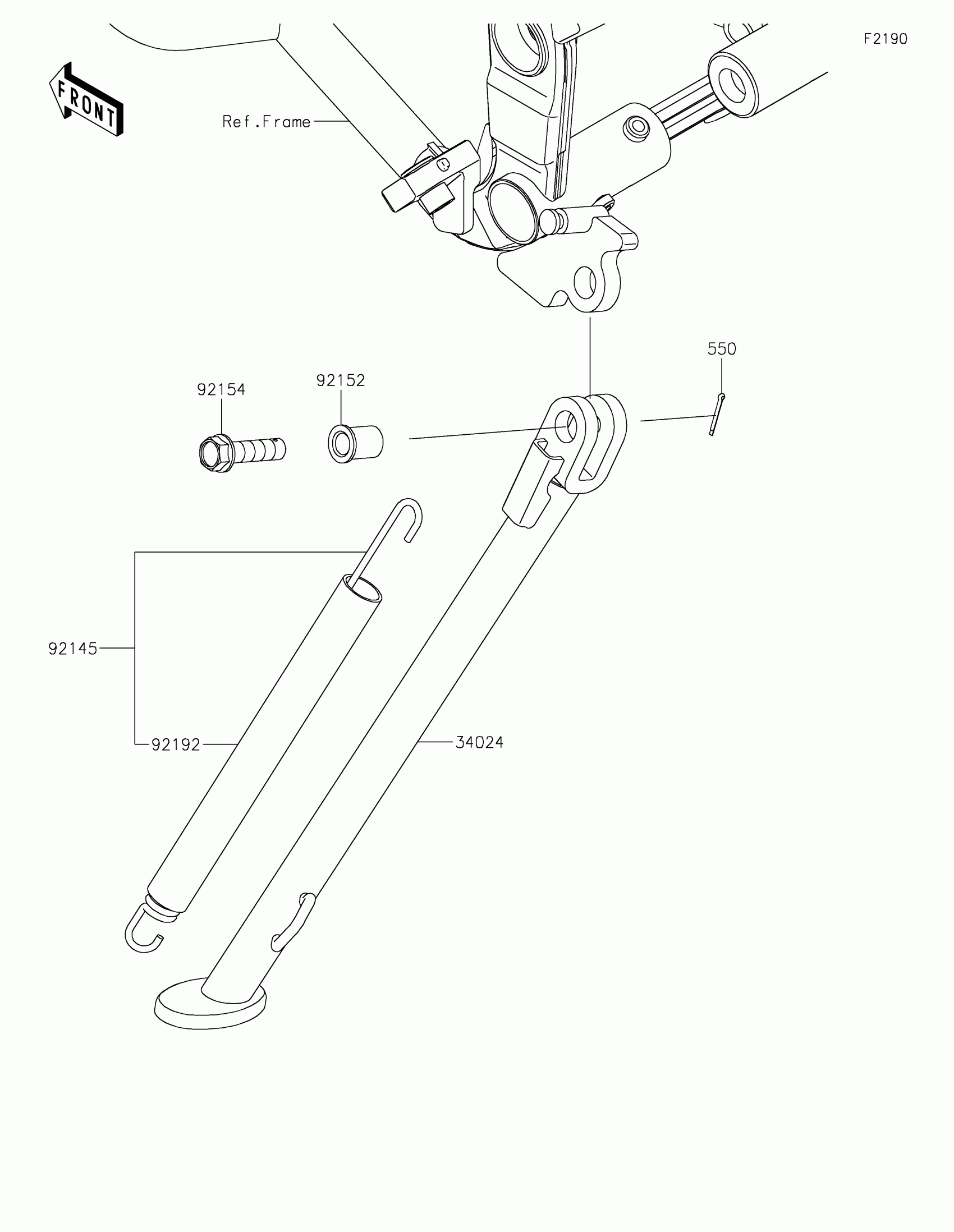

2020 Kawasaki KLX®300R Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34024

STAND-SIDE,P.SILVER

34024-0156-458

1

$89.97

In stock

550

PIN-COTTER,2.0X15

550AA2015

1

$0.94

In stock

92145

SPRING,SIDE STAND

92145-1941

1

$17.63

In stock

92152

COLLAR,10.2X15X20.1

92152-1914

1
Out of stock

92154

BOLT,FLANGED,10X37

92154-1539

1

$6.43

In stock

92192

TUBE,18X21X200

92192-2340

1

$2.44

In stock
