2020 Kawasaki KLX®300R Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

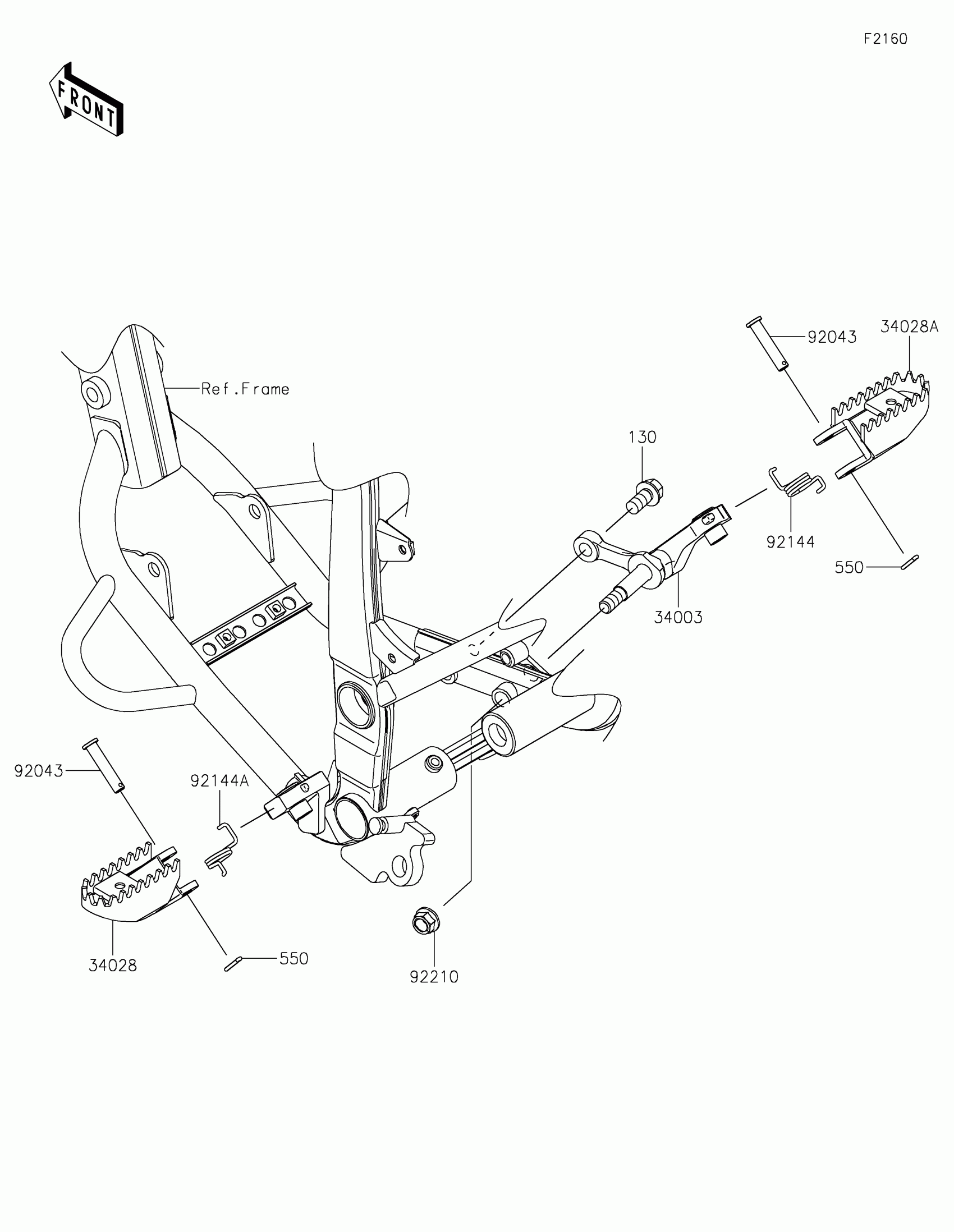

2020 Kawasaki KLX®300R Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,10X20

130CA1020

1

$1.76

In stock

34003

HOLDER-STEP,RH,P.SILVER

34003-0084-458

1

$122.64

In stock

34028

STEP,FR,LH

34028-1361

1

$43.98

In stock

34028A

STEP,FR,RH

34028-1362

1

$49.47

In stock

550

PIN-COTTER,2.5X15

550AA2515

1

$0.51

In stock

92043

PIN,8X35.5

92043-115

1

$9.22

In stock

92144

1

$7.29

In stock

92144A

1

$1.32

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock
← Decals Frame →
