2020 Kawasaki KLX®300R Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

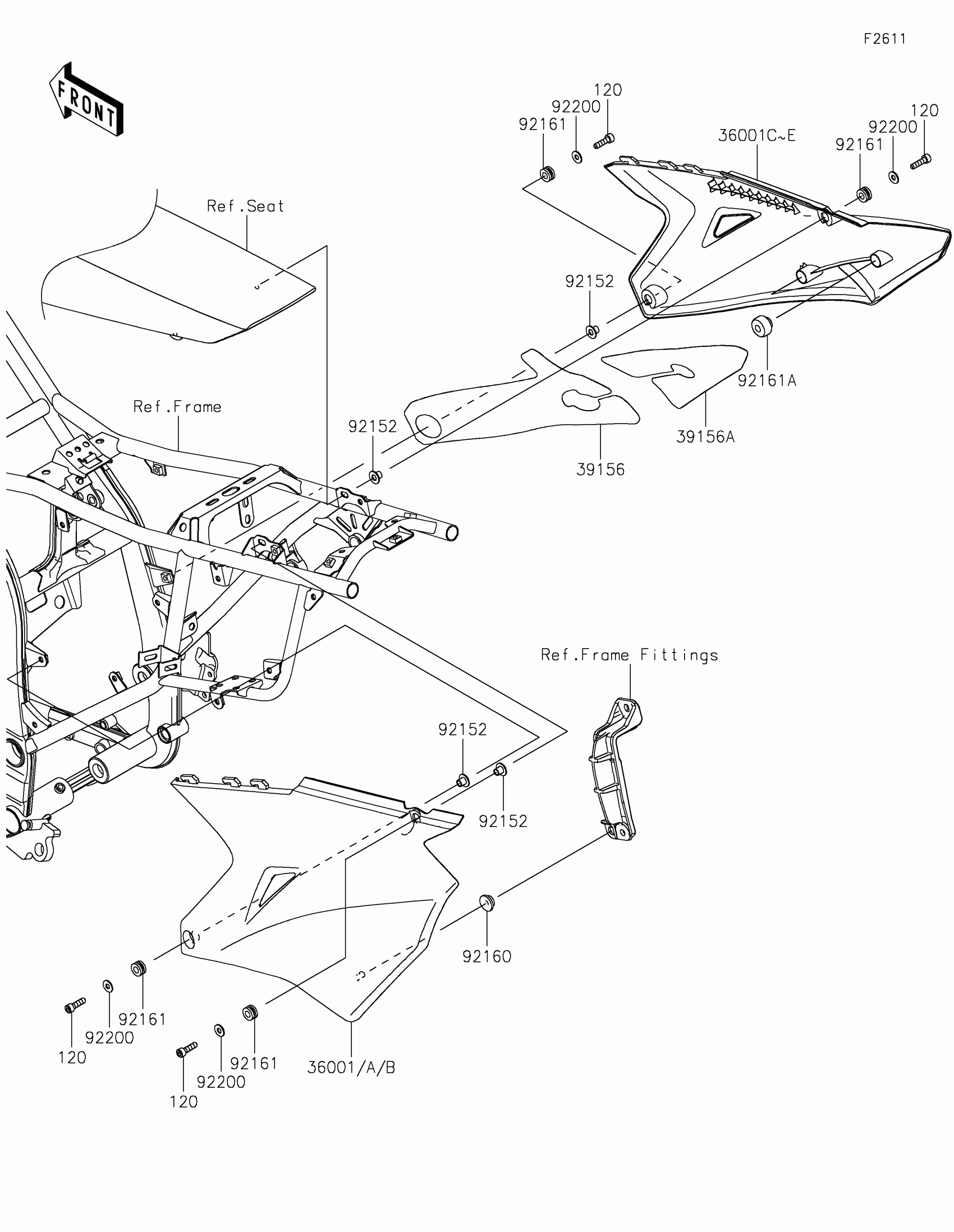

2020 Kawasaki KLX®300R Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X25

120CC0625

1

$1.66

In stock

36001

COVER-SIDE,LH,B.WHITE

36001-0682-266

1

$49.06

In stock

36001A

COVER-SIDE,RH,B.WHITE

36001-0683-266

1

$49.06

In stock

39156

1

$51.47

In stock

39156A

1

$44.44

In stock

92152

COLLAR,6.3X8.3X9.2

92152-1671

1

$4.80

In stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92161

DAMPER,8X16X8.6

92161-0685

1

$5.24

In stock

92161A

DAMPER

92161-1783

1

$4.78

In stock

92200

WASHER,6.2X15X1.2

92200-1762

1
Out of stock
