2020 Kawasaki KLX®300R Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

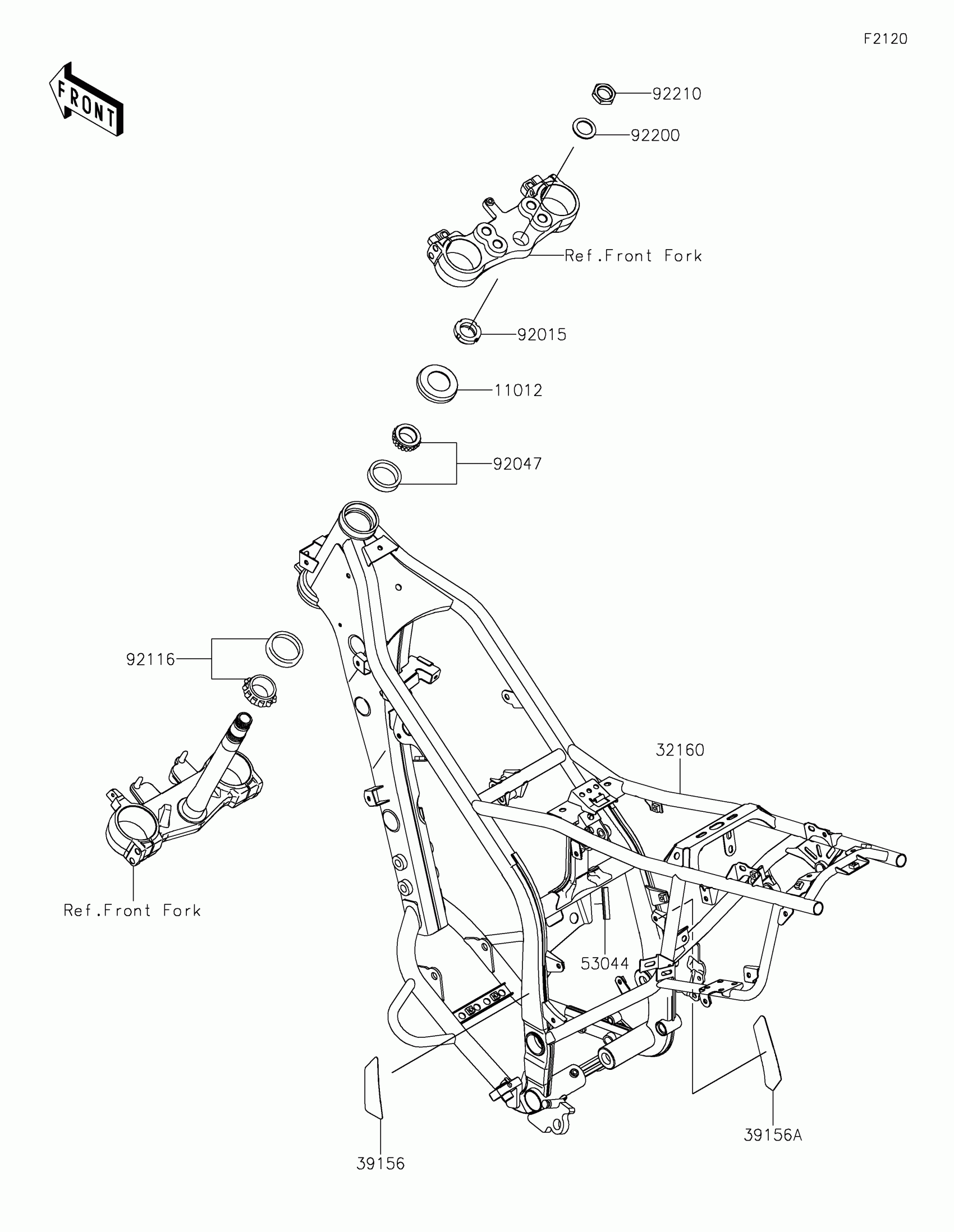

2020 Kawasaki KLX®300R Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

11012-1762

1

$5.37

In stock

32160

FRAME-COMP,P.SILVER

32160-1832-458

1

$1,632.40

In stock

39156

PAD,FRAME,LH

39156-2529

1

$17.12

In stock

39156A

PAD,FRAME,RH

39156-2530

1

$20.73

In stock

53044

TRIM

53044-0580

1

$4.53

In stock

92015

NUT,25MM,T=12

92015-1546

1

$19.66

In stock

92047

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

92116

1

$59.23

In stock

92200

WASHER,STEERING STEM

92200-0517

1
Out of stock

92210

NUT,STEERING STEM,22MM

92210-1521

1
Out of stock
