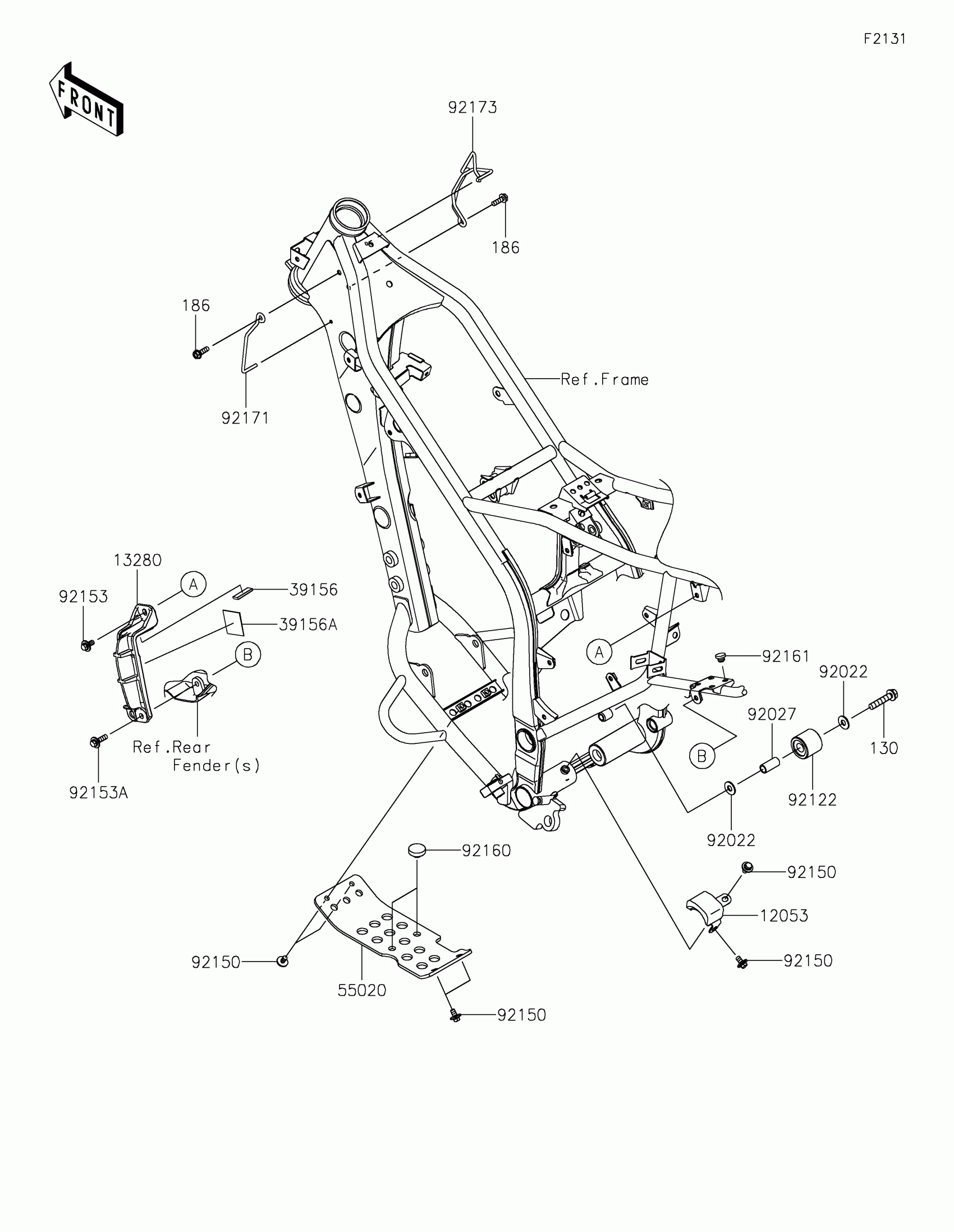

Kawasaki KLX®300R Frame Fittings Diagram

Description

Price

12053

GUIDE-CHAIN

12053-0001

$10.00

130

BOLT-FLANGED,8X40

130BA0840

$1.44

13280

HOLDER,BATTERY

13280-0944

Unavailable

186

BOLT-UPSET-WP,6X20

186BA0620

$2.10

39156

PAD,30X10X3

39156-2553

$3.97

39156A

PAD,34X34X1

39156-2554

$4.85

55020

GUARD,ENGINE

55020-1456

$95.85

92022

WASHER,8.5X20X1.6

92022-1561

$3.29

92027

COLLAR,CHAIN ROLLER

92027-1670

$7.25

92122

ROLLER,CHAIN GUIDE

92122-1153

$8.10

92150

BOLT,6X12

92150-1435

$3.29

92153

BOLT,FLANGED,6X14

92153-0936

$2.09

92153A

BOLT,FLANGED,6X22

92153-0950

$2.98

92160

DAMPER

92160-1396

$4.85

92161

DAMPER

92161-1084

$1.89

92171

CLAMP,HARNESS,LH

92171-1775

$8.25

92173

CLAMP,HARNESS,RH

92173-2206

$9.86
