2022 Kawasaki KLX®230 S Starter Motor Diagram

← All diagrams

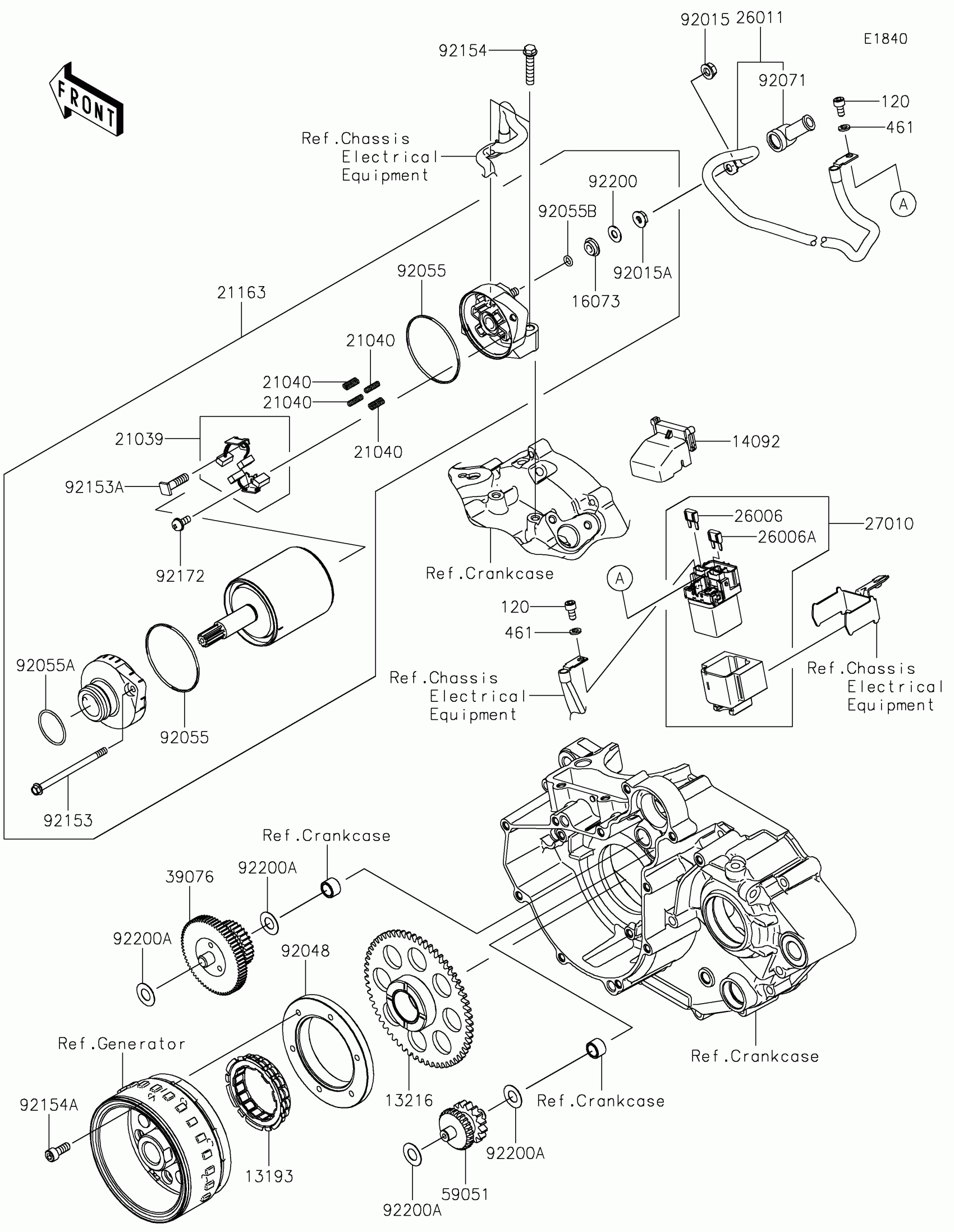

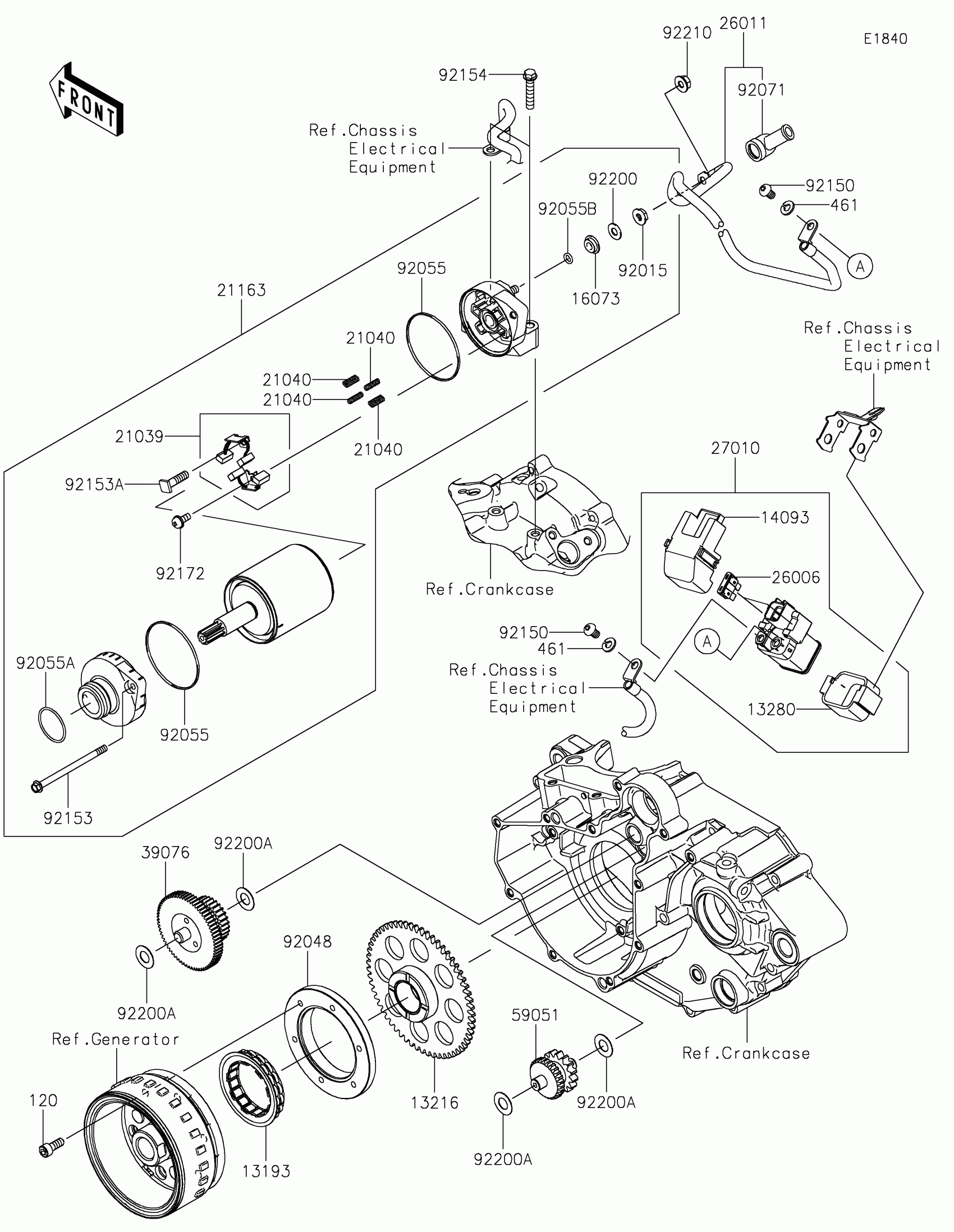

Find the part on the Starter Motor diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230 S Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13193

CLUTCH-ASSY-ONEWAY

13193-0014

1

$121.73

In stock

13216

1

$150.42

In stock

13280

HOLDER

13280-0710

1

$13.75

In stock

14093

COVER

14093-0199

1

$17.54

In stock

16073

INSULATOR

16073-0053

1

$11.42

In stock

21039

BRUSH,CARBON

21039-0004

1

$120.17

In stock

21040

SPRING-BRUSH

21040-0003

1

$9.47

In stock

21163

STARTER-ELECTRIC

21163-0783

1

$324.84

In stock

26006

1

$4.39

In stock

26011

WIRE-LEAD

26011-0890

1

$30.70

In stock

27010

SWITCH

27010-0754

1

$138.44

In stock

39076

1

$187.07

In stock

59051

GEAR-SPUR,IDLER

59051-0824

1

$58.83

In stock

92015

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92048

RACE,ONEWAY CLUTCH

92048-0030

1

$55.26

In stock

92055

RING-O

92055-0136

1

$6.16

In stock

92055A

RING-O

92055-1276

1

$7.86

In stock

92055B

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92071

GROMMET

92071-0024

1

$9.86

In stock

92150

BOLT,6X10

92150-1577

1

$3.17

In stock

92153

BOLT

92153-1850

1

$11.42

In stock

92153A

BOLT

92153-1866

1

$4.14

In stock

92154

BOLT,FLANGED,6X30

92154-1773

1

$1.10

In stock

92172

SCREW

92172-0334

1

$4.14

In stock

92200

WASHER

92200-0386

1
Out of stock

92200A

WASHER,10.2X20X0.5

92200-1976

1

$3.56

In stock

92210

NUT,6MM

92210-0188

1
Out of stock

120

BOLT-SOCKET,6X16

120CA0616

1

$2.05

In stock

461

WASHER-SPRING,6MM

461DB0600

1

$0.66

In stock
