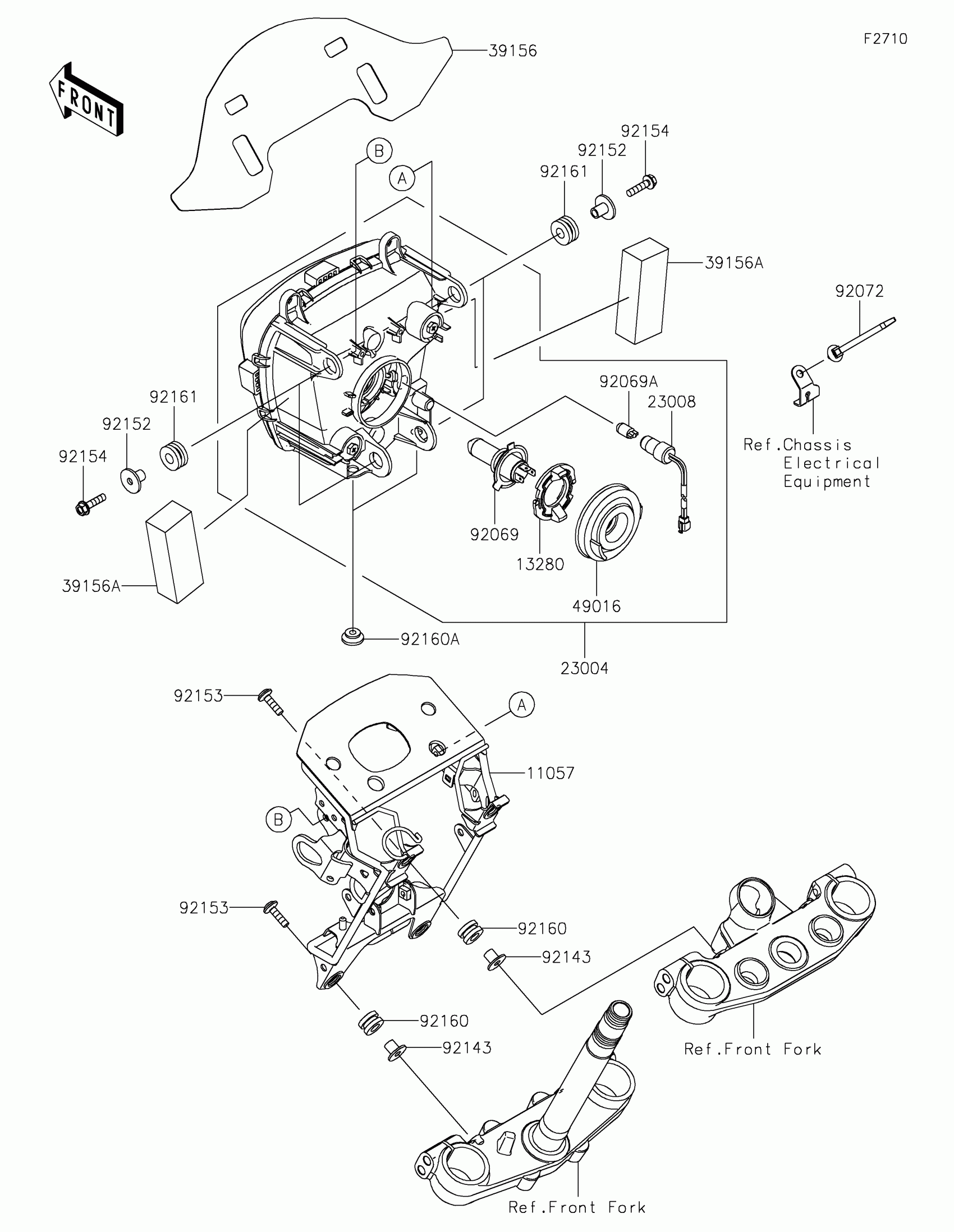

Find the part on the Headlight diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

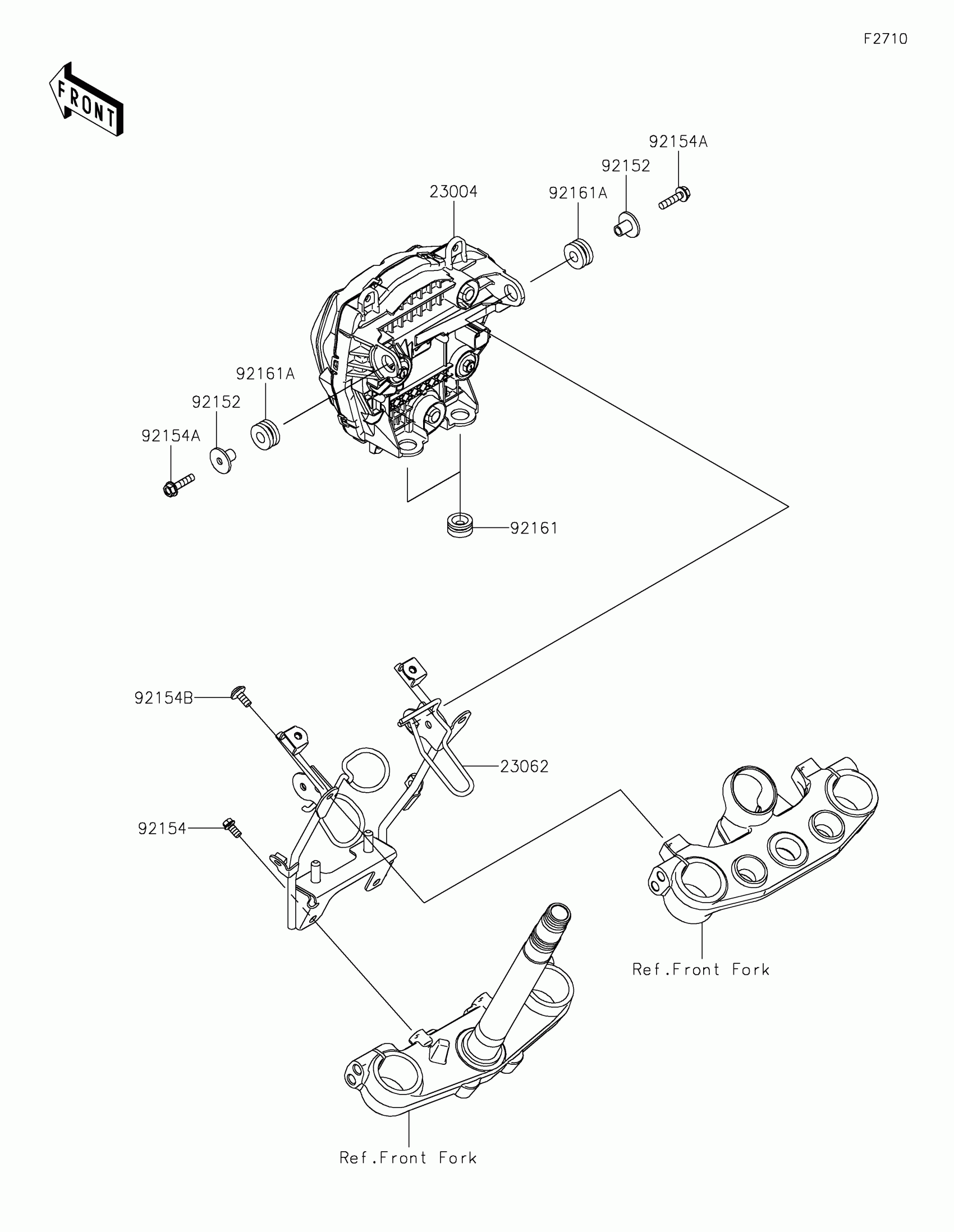

2022 Kawasaki KLX®230 S Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,HEAD LAMP

11057-4020

1

$239.33

In stock

13280

HOLDER

13280-0902

1

$4.25

In stock

23004

LAMP-HEAD

23004-0415

1

$364.60

In stock

23008

1

$14.25

In stock

39156

PAD

39156-2564

1

$17.36

In stock

39156A

PAD,90X25X35

39156-2572

1

$5.92

In stock

49016

COVER-SEAL

49016-0649

1

$3.24

In stock

92069

BULB,12V 60/55W,H4

92069-0097

1

$17.12

In stock

92069A

BULB,12V 5W

92069-0098

1

$15.05

In stock

92072

1

$2.97

In stock

92143

COLLAR

92143-1353

1

$6.81

In stock

92152

COLLAR,6.5X10X15.3

92152-1793

1

$7.75

In stock

92153

BOLT,SOCKET,6X22

92153-0574

1
Out of stock

92154

BOLT,FLANGED,6X25

92154-2774

1

$2.59

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92160A

DAMPER

92160-1613

1

$2.97

In stock

92161

DAMPER,10X24X12

92161-2112

1

$3.97

In stock
