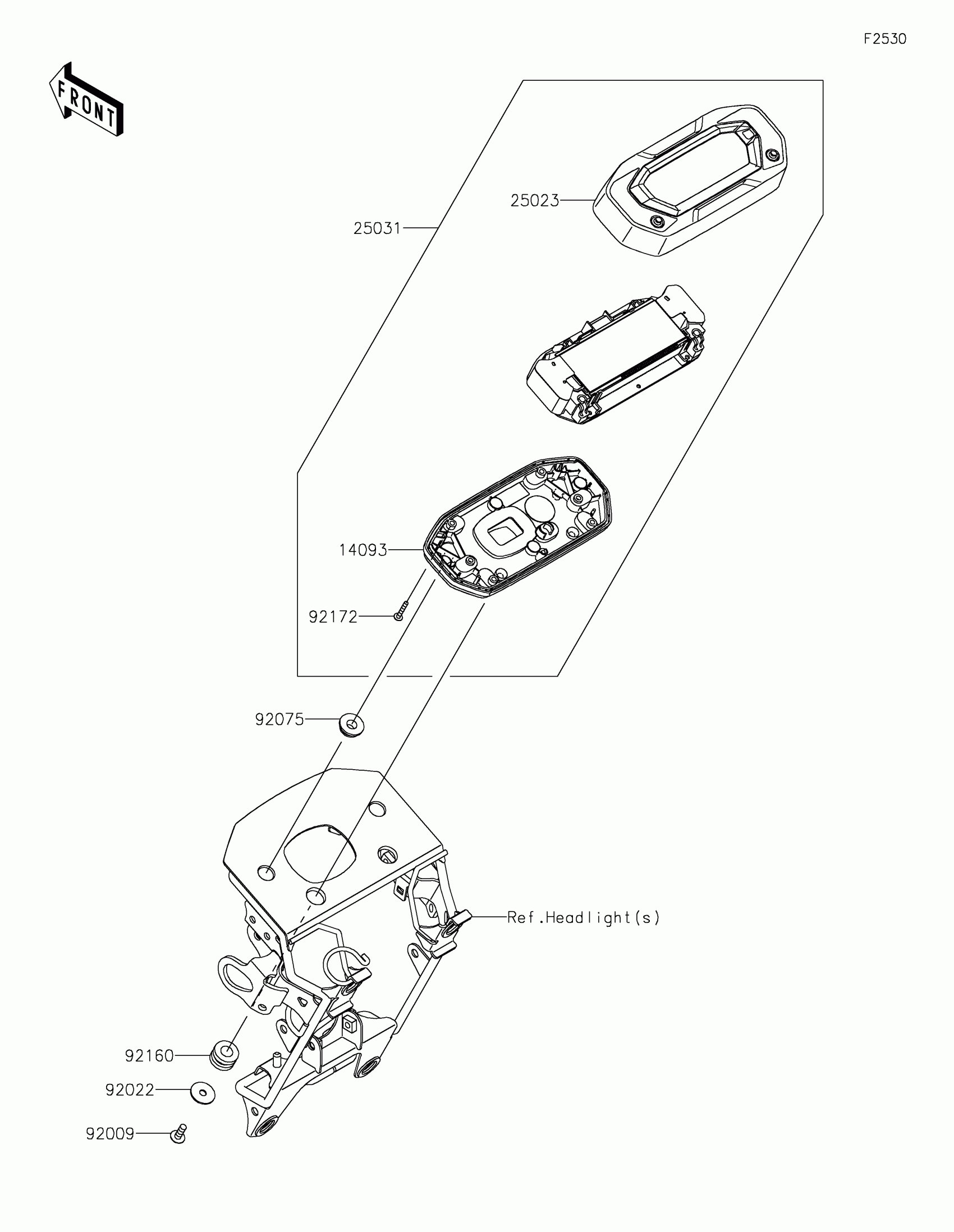

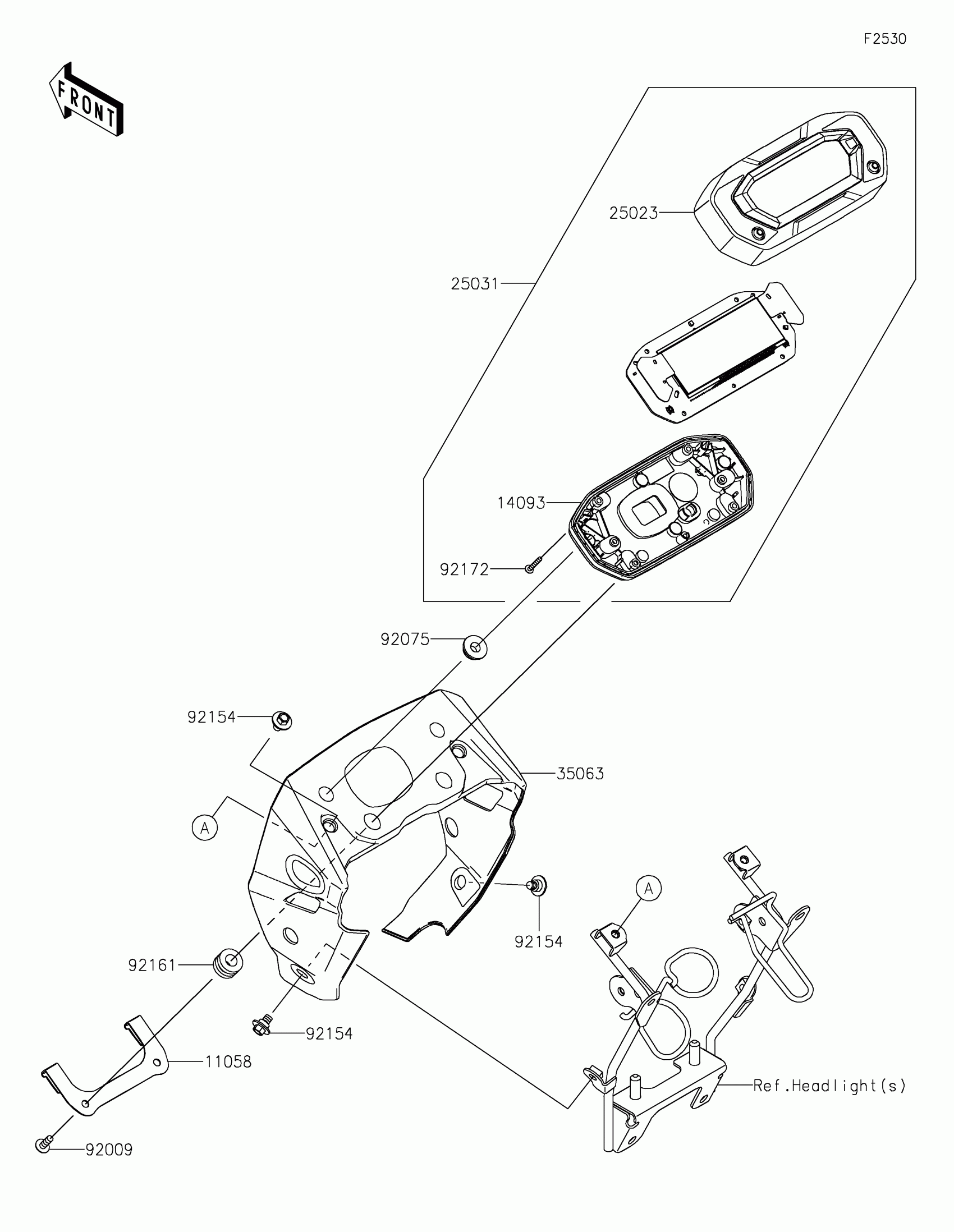

Find the part on the Meter diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230 S Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,METER

14093-0941

1

$50.33

In stock

25023

COVER-METER CASE

25023-0139

1

$60.21

In stock

25031

METER-ASSY,LCD

25031-0851

1

$378.39

In stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1

$3.43

In stock

92075

1

$5.42

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92172

SCREW,TAPPING,3X20

92172-1224

1

$0.86

In stock
