2022 Kawasaki KLX®230 S Ignition System Diagram

← All diagrams

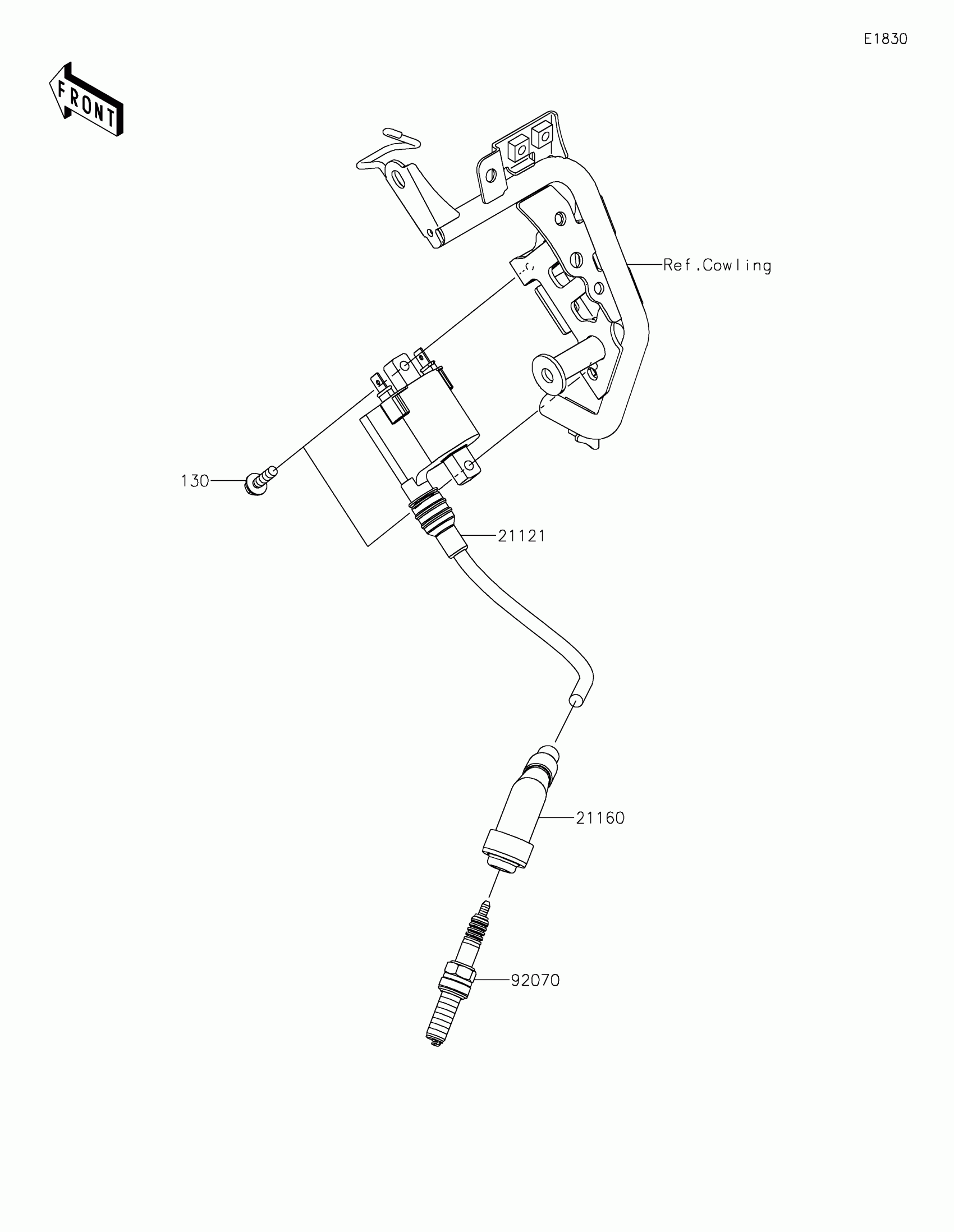

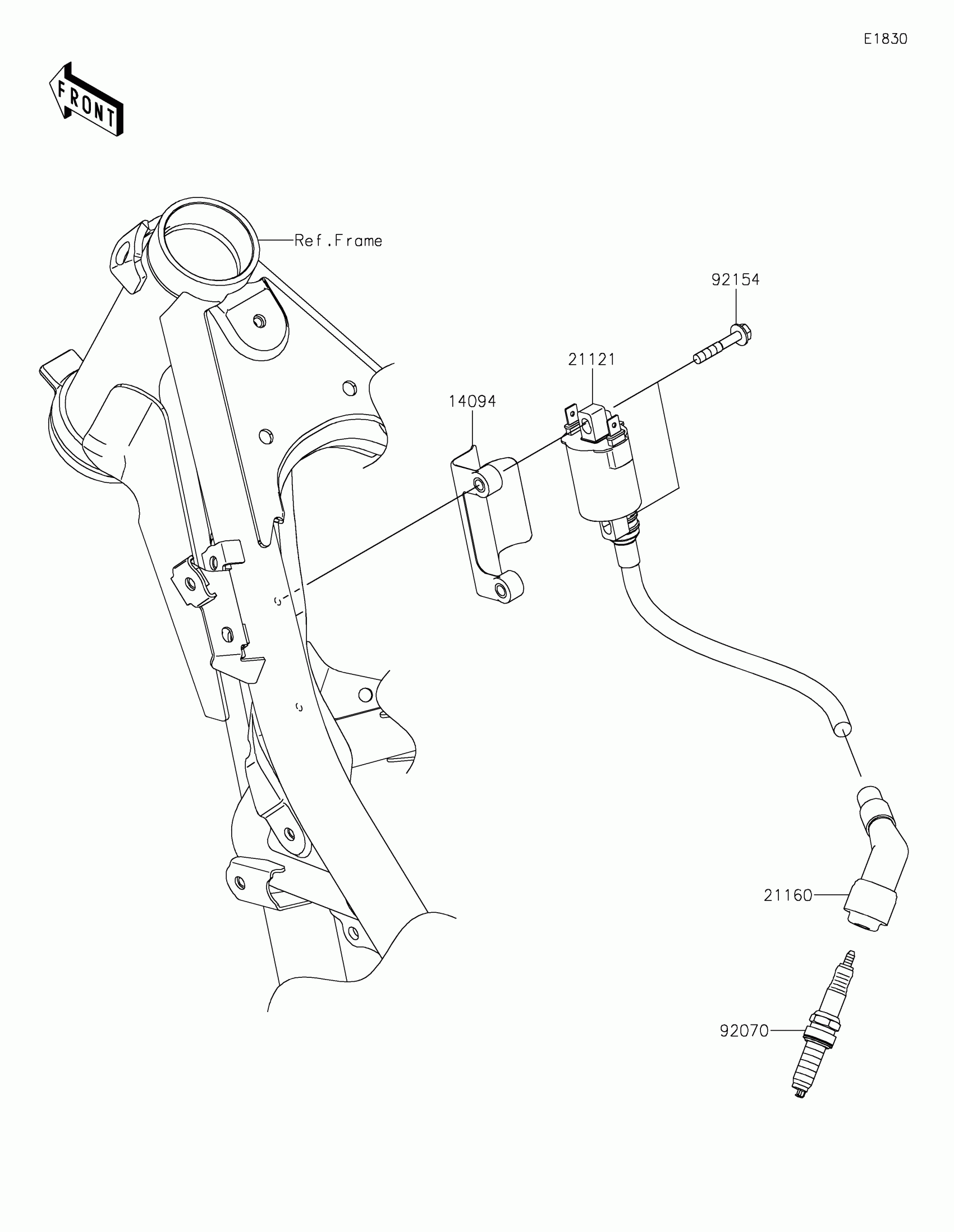

Find the part on the Ignition System diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230 S Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21121

COIL-IGNITION

21121-0735

1

$53.15

In stock

21160

CAP-ASSY-PLUG

21160-0026

1

$30.32

In stock

92070

1

$11.62

In stock

130

BOLT-FLANGED,5X18

130BB0518

1

$1.71

In stock
