2020 Kawasaki KLX®150L Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 2020 Kawasaki KLX®150L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

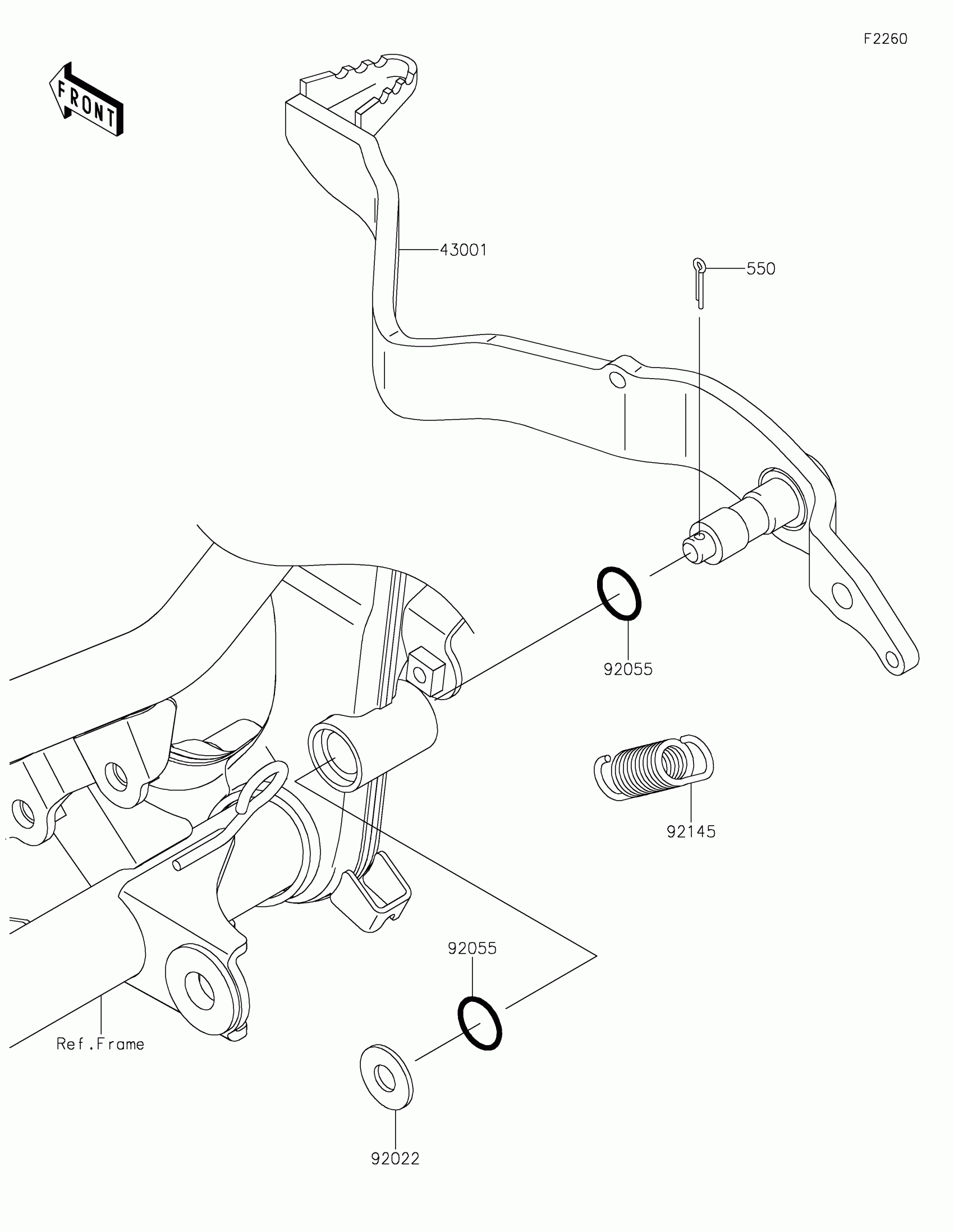

2020 Kawasaki KLX®150L Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE

43001-0131

1
Out of stock

550

PIN-COTTER,2.5X25

550AA2525

1
Out of stock

92022

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

92055

RING-O,13.1X2.7

92055-0768

1
Out of stock

92145

SPRING,BRAKE PEDAL RETURN

92145-0741

1
Out of stock
