Description

Price

13159

CONNECTOR

13159-1056

$10.71

43010

ROD-ASSY-BRAKE

43010-1068

$45.28

43015

CYLINDER-ASSY-MASTER,RR

43015-0587

$300.41

43016

CYLINDER-MASTER

43016-1149

$195.30

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-1075

$12.97

43028

DIAPHRAGM

43028-1067

$14.12

43064

GROMMET,HOSE CLAMP

43064-006

$3.29

43078

RESERVOIR

43078-1189

$26.83

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0550

$15.53

43095A

HOSE-BRAKE,589MM

43095-0803

$98.64

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92009

SCREW,4X40

92009-1596

$3.01

92022

WASHER,8.5X13X1

92022-1028

$2.99

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP

92037-1710

$7.54

92043

PIN

92043-0004

$8.49

92043A

PIN,COTTER,2.0X15

92043-0766

$0.95

92055

RING-O,14.8X2.4

92055-0766

$7.17

92153

BOLT,OIL,L=23

92153-0029

$1.44

92154

BOLT,FLANGED,6X16

92154-0460

$1.35

92154A

BOLT,FLANGED,6X14

92154-1231

$2.09

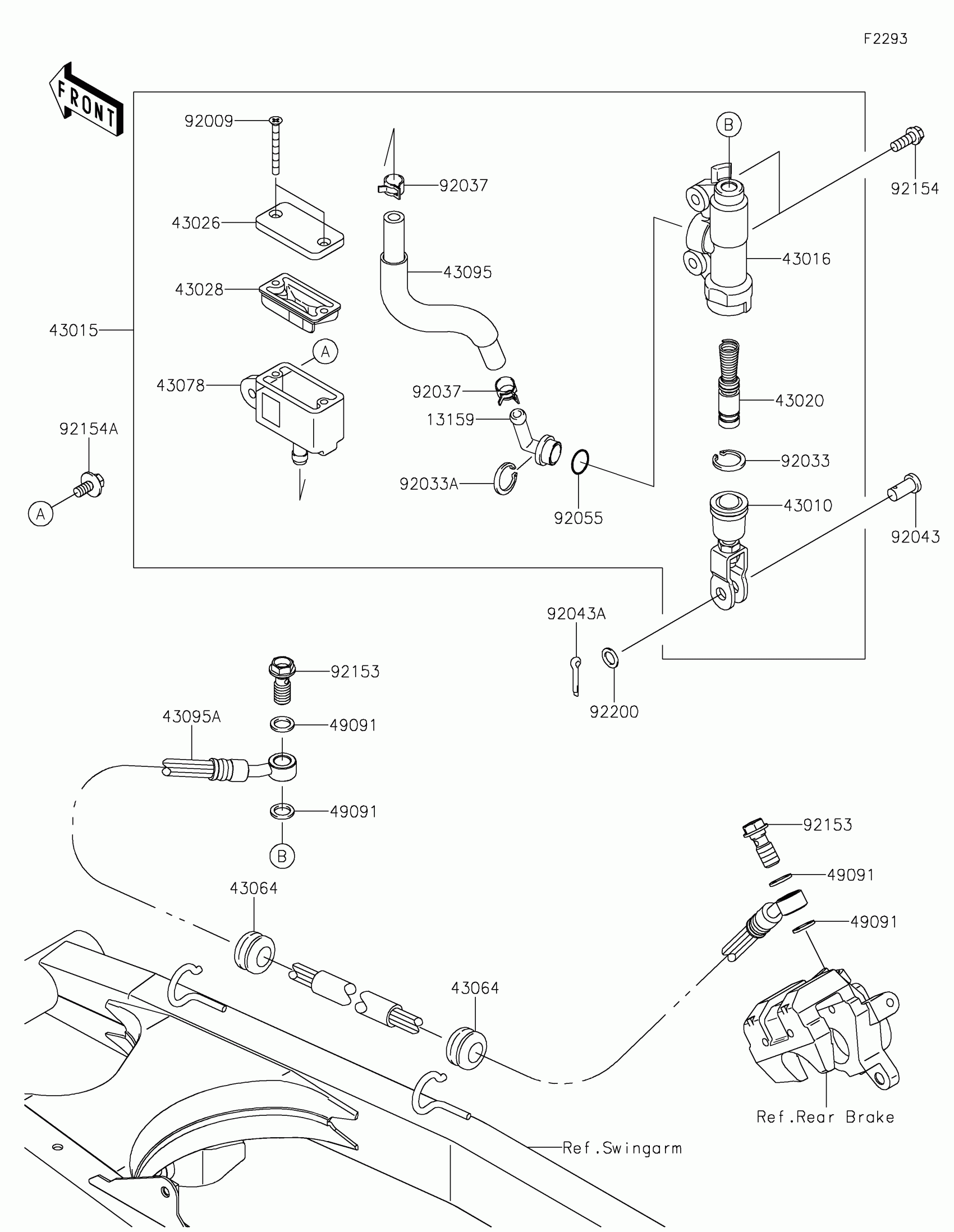

Kawasaki KLX®150L Rear Master Cylinder Diagram
