Description

Price

13127

SHAFT-TRANSMISSION INPUT,12T

13127-0648

$112.88

13128

SHAFT-TRANSMISSION OUTPUT

13128-0679

$151.80

13144

SPROCKET-OUTPUT,14T

13144-0562

$35.67

13262

GEAR,INPUT 5TH,24T

13262-0965

$41.96

13262A

GEAR,INPUT 3RD,19T

13262-0966

$66.42

13262B

GEAR,INPUT 2ND,16T

13262-0967

$47.06

13262C

GEAR,INPUT 4TH,22T

13262-0968

$65.97

13262D

GEAR,OUTPUT 4TH,26T

13262-0969

$42.42

13262E

GEAR,OUTPUT LOW,35T

13262-0970

$51.61

13262F

GEAR,OUTPUT 2ND,32T

13262-0971

$48.64

13262G

GEAR,OUTPUT 5TH,24T

13262-0972

$61.39

13262H

GEAR,OUTPUT 3RD,28T

13262-0973

$79.28

92026

SPACER,12.2X24X0.5

92026-0754

$1.36

92026A

SPACER,17.2X23X0.5

92026-0755

$3.85

92033

RING-SNAP

92033-0731

$3.81

92055

RING-O,16.8X1.9

92055-0151

$2.98

92139

BUSHING,17X19X9.5

92139-0795

$10.59

92139A

BUSHING,17X19X7.4

92139-0796

$5.17

92139B

BUSHING,12X14X9.4

92139-0797

$4.66

92139C

BUSHING

92139-0913

$16.03

92152

COLLAR,SPROCKET

92152-0998

$13.34

92180

SHIM

92180-0774

$2.64

92200

WASHER,17.3X22X0.5

92200-0865

$3.53

480

CIRCLIP-TYPE-C,17MM

480J1700

$0.55

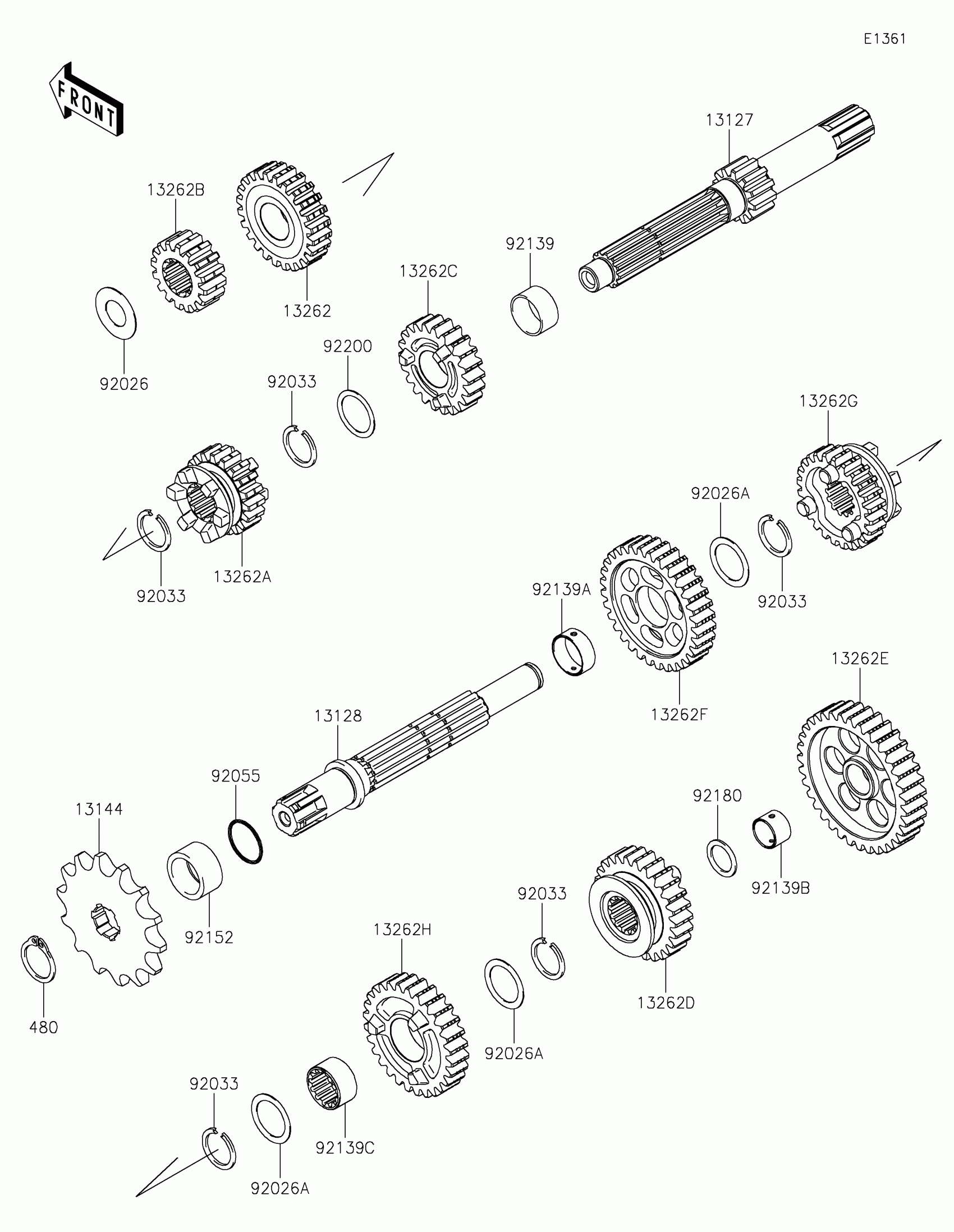

Kawasaki KLX®150L Transmission Diagram
