2020 Kawasaki KLX®150L Front Master Cylinder Diagram

← All diagrams

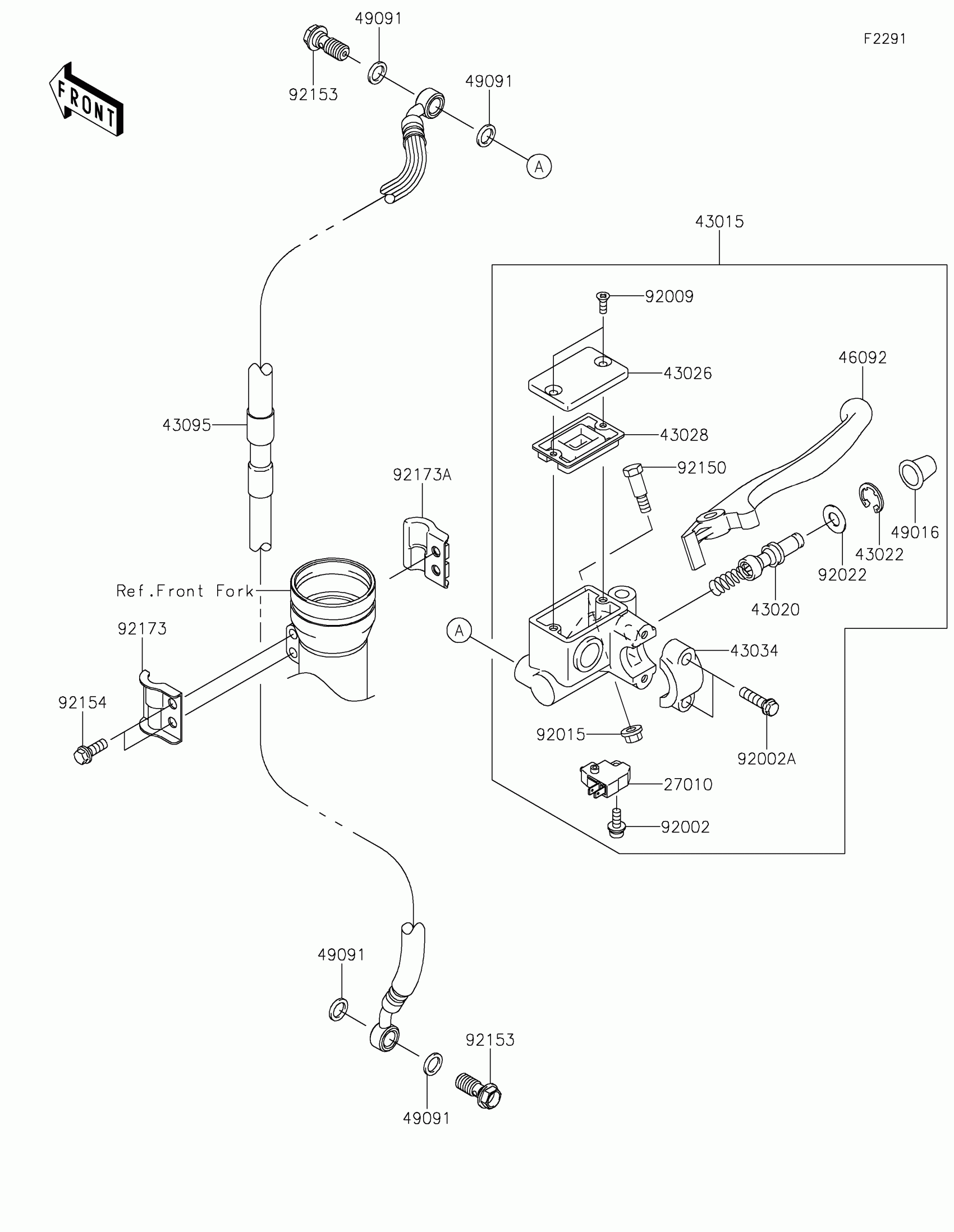

Find the part on the Front Master Cylinder diagram for your 2020 Kawasaki KLX®150L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®150L Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,BRAKE

27010-0738

1
Out of stock

43015

CYLINDER-ASSY-MASTER

43015-0586

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0019

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1074

1
Out of stock

43028

DIAPHRAGM

43028-1061

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

43095

HOSE-BRAKE,FR,1296MM

43095-1433

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-0044

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002A

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92022

WASHER

92022-1814

1
Out of stock

92150

BOLT,LEVER SET

92150-1451

1
Out of stock

92153

BOLT,OIL,L=23

92153-0029

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0460

1
Out of stock

92173

CLAMP,BRAKE HOSE,OUTSIDE

92173-0827

1
Out of stock

92173A

CLAMP,BRAKE HOSE,INSIDE

92173-1785

1
Out of stock
