2020 Kawasaki KLX®150L Rear Brake Diagram

← All diagrams

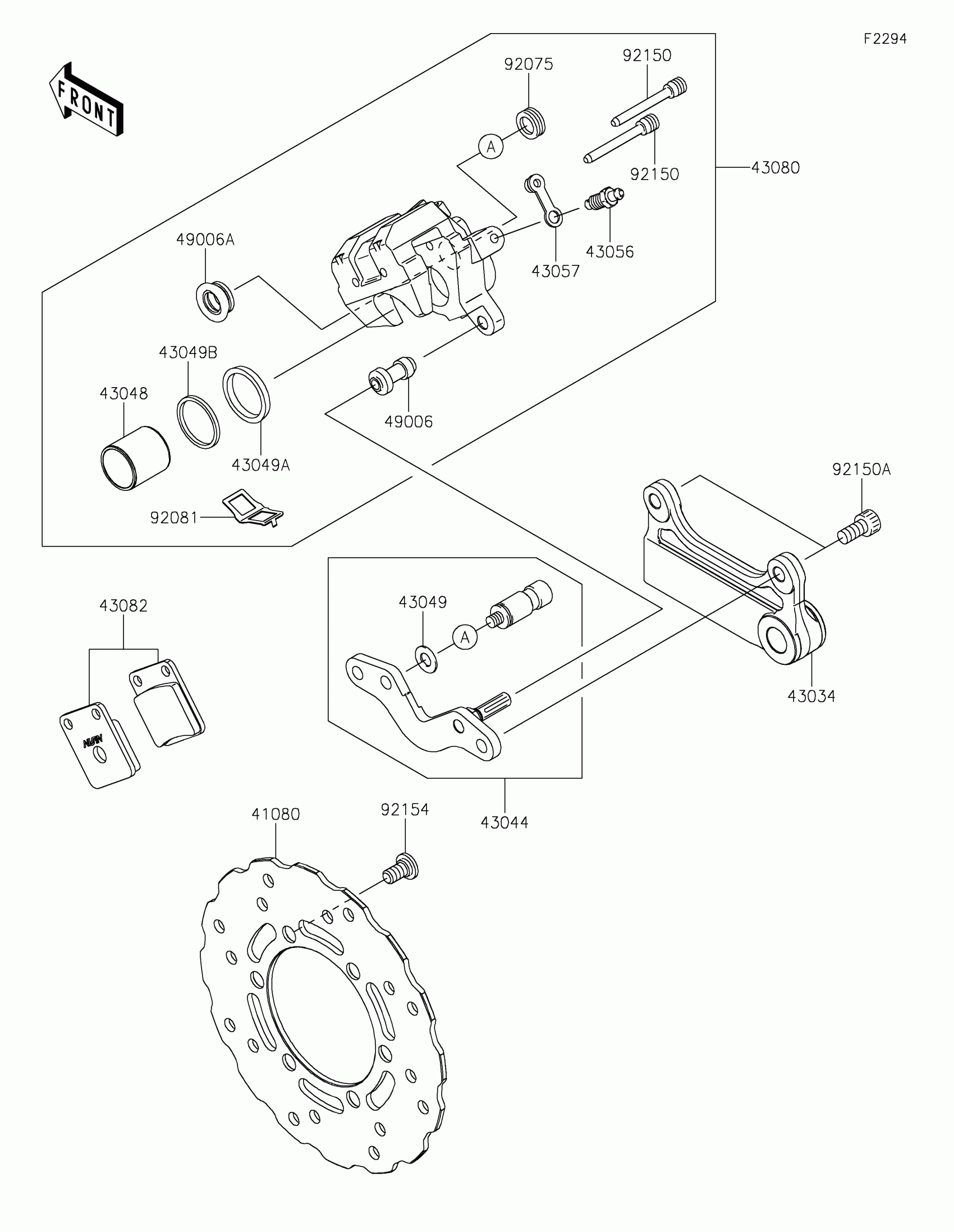

Find the part on the Rear Brake diagram for your 2020 Kawasaki KLX®150L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®150L Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC

41080-0639

1
Out of stock

43034

HOLDER-BRAKE,RR

43034-0106

1
Out of stock

43044

HOLDER-COMP-CALIPER,RR

43044-1076

1
Out of stock

43048

PISTON-CALIPER

43048-1090

1
Out of stock

43049

PACKING

43049-1025

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1060

1
Out of stock

43049B

PACKING,PISTON SEAL

43049-1061

1
Out of stock

43056

BREATHER-BRAKE

43056-0004

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,RR

43080-0078

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0043

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1089

1
Out of stock

92075

DAMPER

92075-1414

1
Out of stock

92081

SPRING,PAD

92081-1502

1
Out of stock

92150

BOLT

92150-1144

1
Out of stock

92150A

BOLT,SOCKET,8X16

92150-1840

1
Out of stock

92154

BOLT,SOCKET,8X15

92154-1181

1
Out of stock
