2021 Kawasaki KLX®140R L Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2021 Kawasaki KLX®140R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

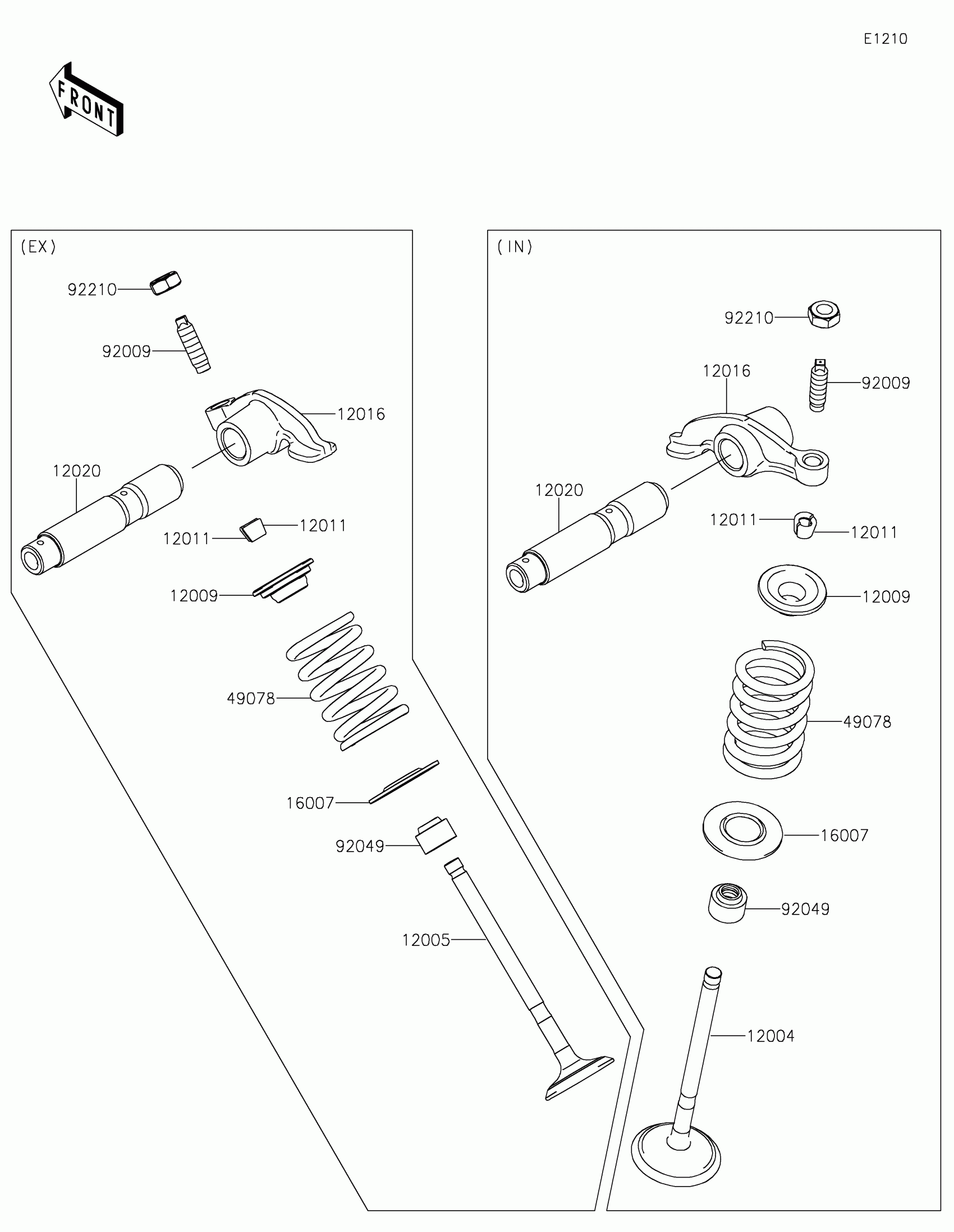

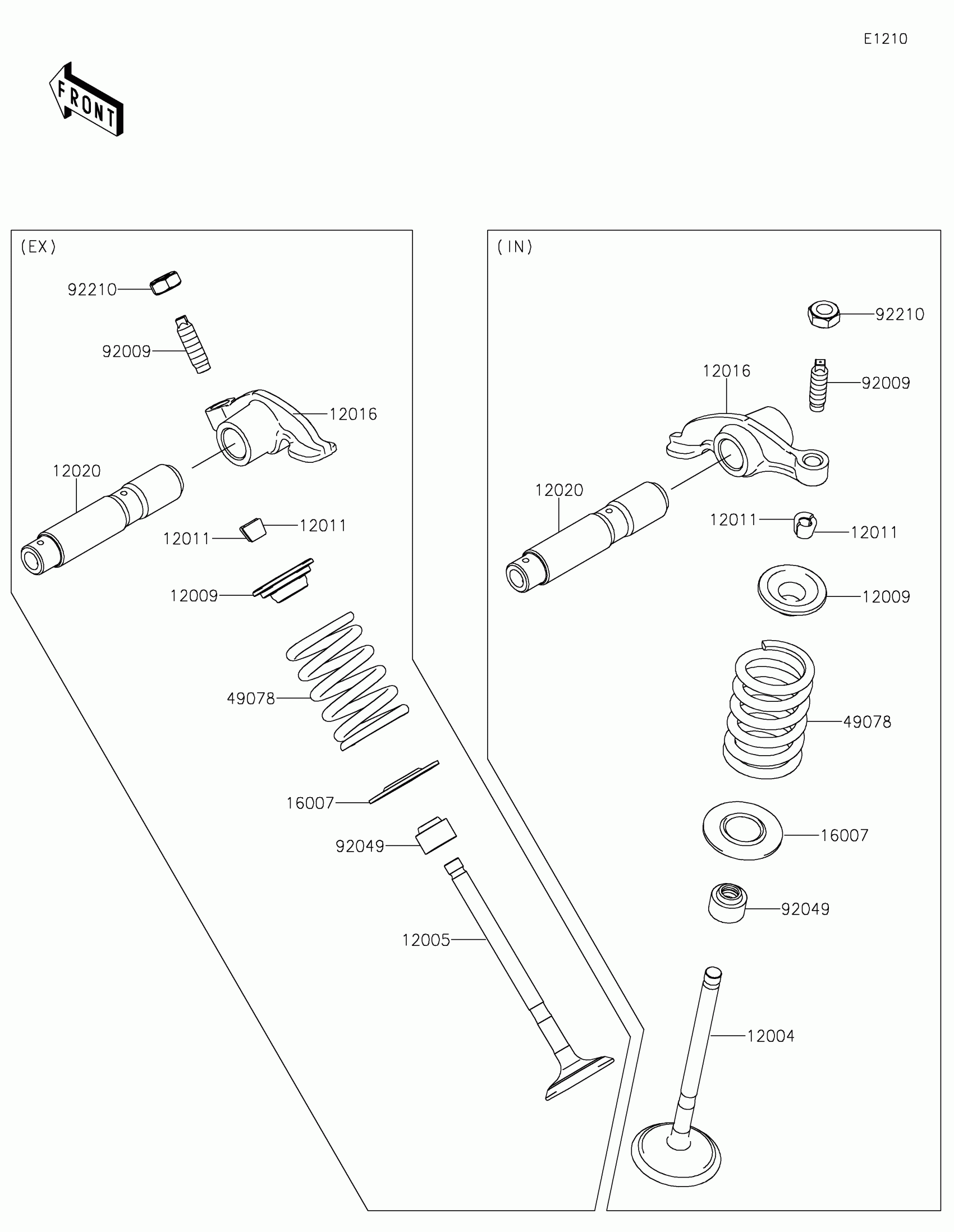

2021 Kawasaki KLX®140R L Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-0049

1
Out of stock

12005

VALVE-EXHAUST

12005-0725

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-0018

1
Out of stock

12011

COLLET

12011-1051

1
Out of stock

12016

ARM-ROCKER

12016-0725

1
Out of stock

12020

SHAFT-ROCKER

12020-0007

1
Out of stock

16007

SEAT-SPRING

16007-1223

1
Out of stock

49078

SPRING-ENGINE VALVE

49078-0064

1
Out of stock

92009

SCREW,VALVE ADJUST

92009-1109

1
Out of stock

92049

SEAL-OIL

92049-0139

1
Out of stock

92210

NUT,VALVE ADJUST LOCK

92210-1491

1
Out of stock
