2026 Kawasaki KLX®140R L Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2026 Kawasaki KLX®140R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

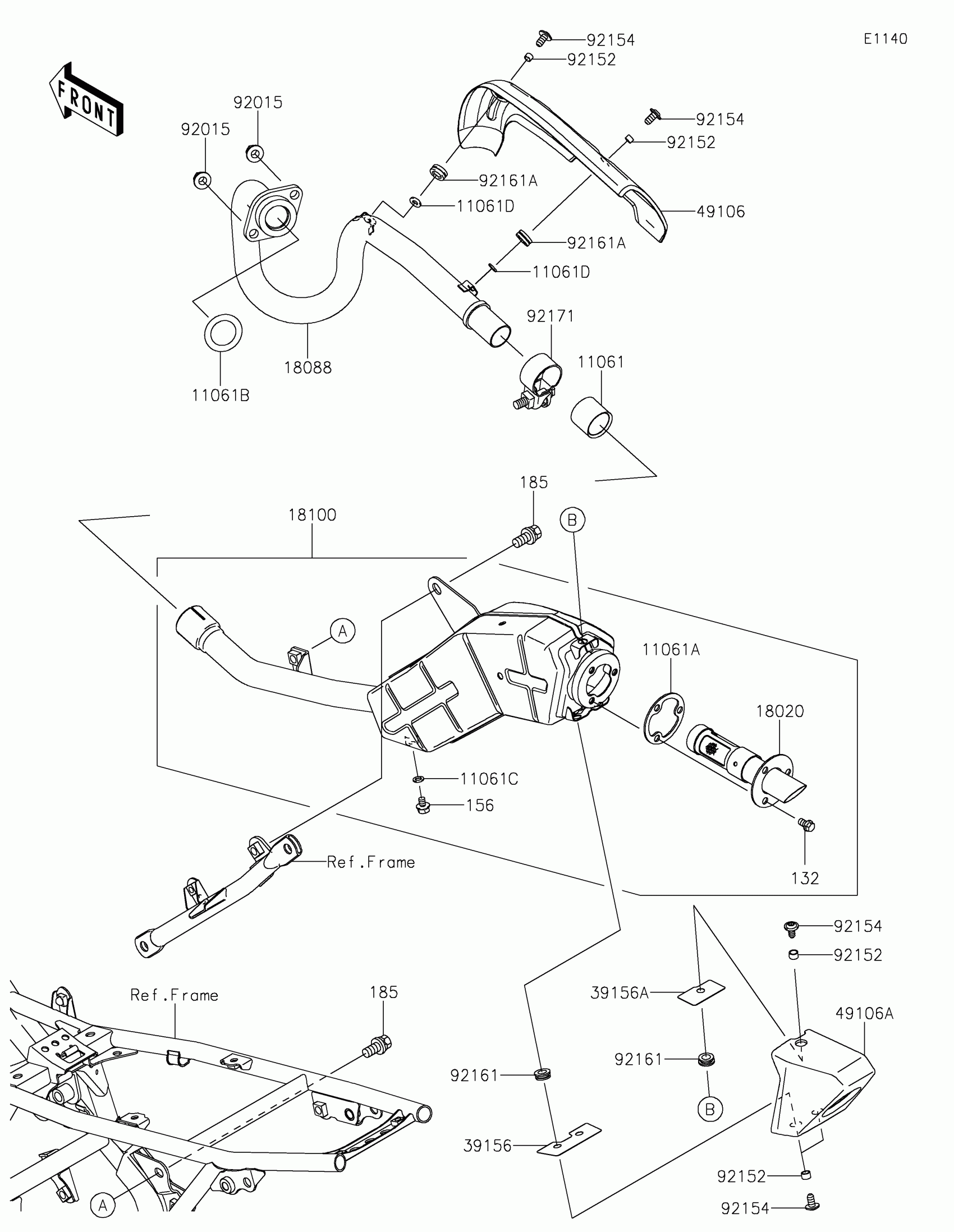

2026 Kawasaki KLX®140R L Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,EXHAUST PIPE

11061-0871

1
Out of stock

11061A

GASKET

11061-1385

1
Out of stock

11061B

GASKET,MUFFLER JOINT

11061-1419

1
Out of stock

11061C

GASKET

11061-1423

1
Out of stock

11061D

GASKET,DRAIN

11061-1424

1
Out of stock

18020

BAFFLE

18020-0058

1
Out of stock

18088

PIPE-EXHAUST

18088-0429

1
Out of stock

18100

BODY-ASSY-MUFFLER

18100-0614

1
Out of stock

39156

PAD,MUFFLER COVER,INNER,LWR

39156-2812

1
Out of stock

39156A

PAD,MUFFLER COVER,INNER,UPP

39156-2813

1
Out of stock

49106

COVER-MUFFLER,EX. PIPE

49106-0066

1
Out of stock

49106A

COVER-MUFFLER,TAIL CAP

49106-0081

1
Out of stock

92152

COLLAR,6.5X8.5X5.5

92152-2892

1
Out of stock

92154

BOLT,SOCKET,6X12

92154-4449

1
Out of stock

92154A

BOLT,FLANGED,8X16

92154-7221

1
Out of stock

92161

DAMPER

92161-0545

1
Out of stock

92161A

DAMPER

92161-2110

1
Out of stock

92173

CLAMP

92173-1223

1
Out of stock

92210

NUT,8MM

92210-0773

1
Out of stock

132

1

$2.05

In stock

156

BOLT-WP,6X10

156R0610

1
Out of stock
