2021 Kawasaki KLX®140R L OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2021 Kawasaki KLX®140R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

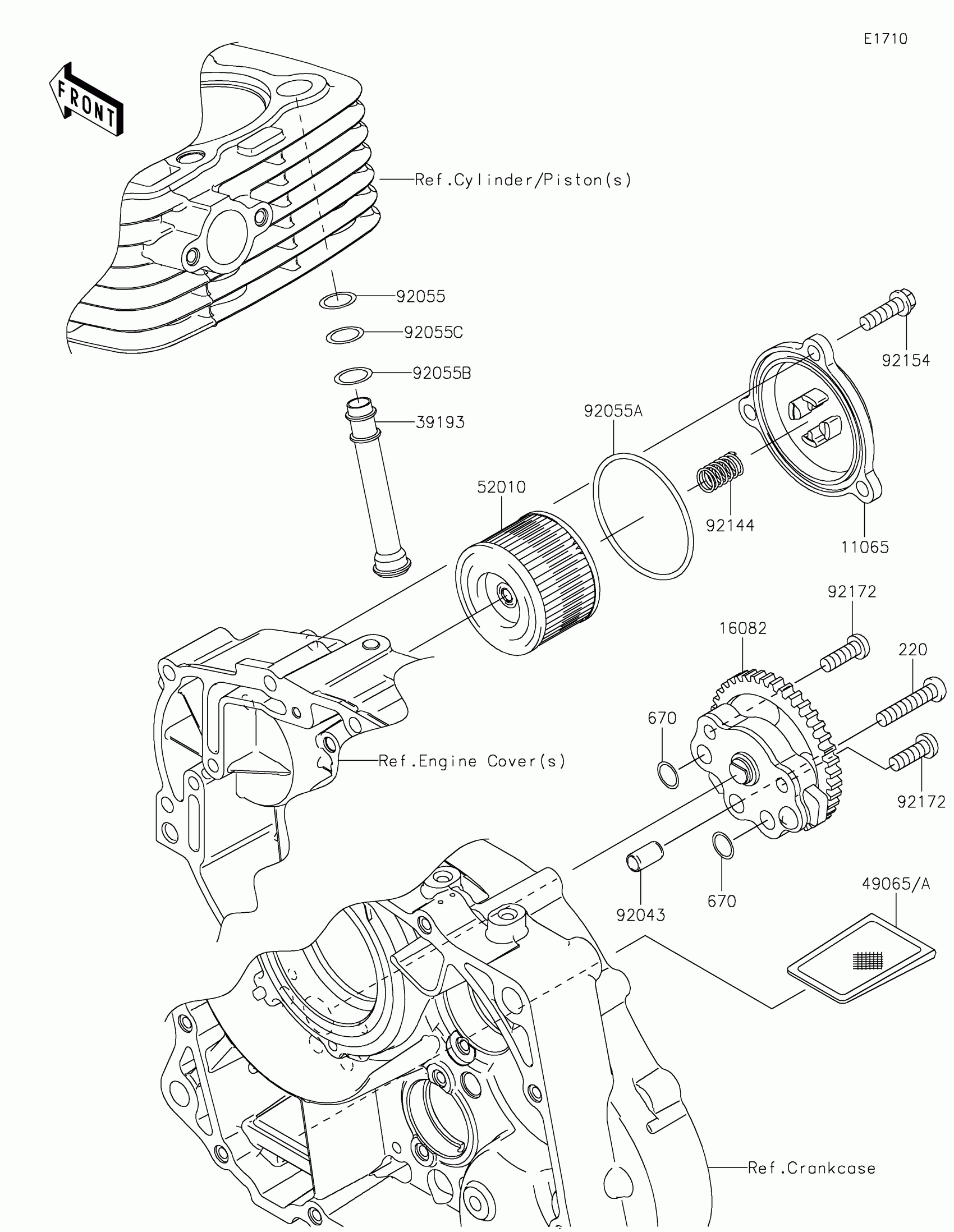

2021 Kawasaki KLX®140R L OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0255

1
Out of stock

132

1

$2.05

In stock

16082

PUMP-ASSY-OIL

16082-1159

1
Out of stock

220

SCREW-PAN-CROS,6X18

220AA0618

1
Out of stock

220A

SCREW-PAN-CROS,6X30

220AA0630

1
Out of stock

39193

PIPE-OIL

39193-0578

1

$5.17

In stock

49065

FILTER-OIL

49065-0021

1
Out of stock

52010

ELEMENT-OIL FILTER

52010-0552

1
Out of stock

670

O RING,9.8X1.9

670B1510

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92055

RING-O,9.8X1.9

92055-0061

1
Out of stock

92055A

RING-O,12.8X1.9

92055-0152

1
Out of stock

92055B

RING-O,59.6X2.4

92055-0201

1
Out of stock

92055C

RING-O,9.8X2.4

92055-1150

1
Out of stock

92144

SPRING

92144-1892

1
Out of stock
