2021 Kawasaki KLX®140R L Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2021 Kawasaki KLX®140R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

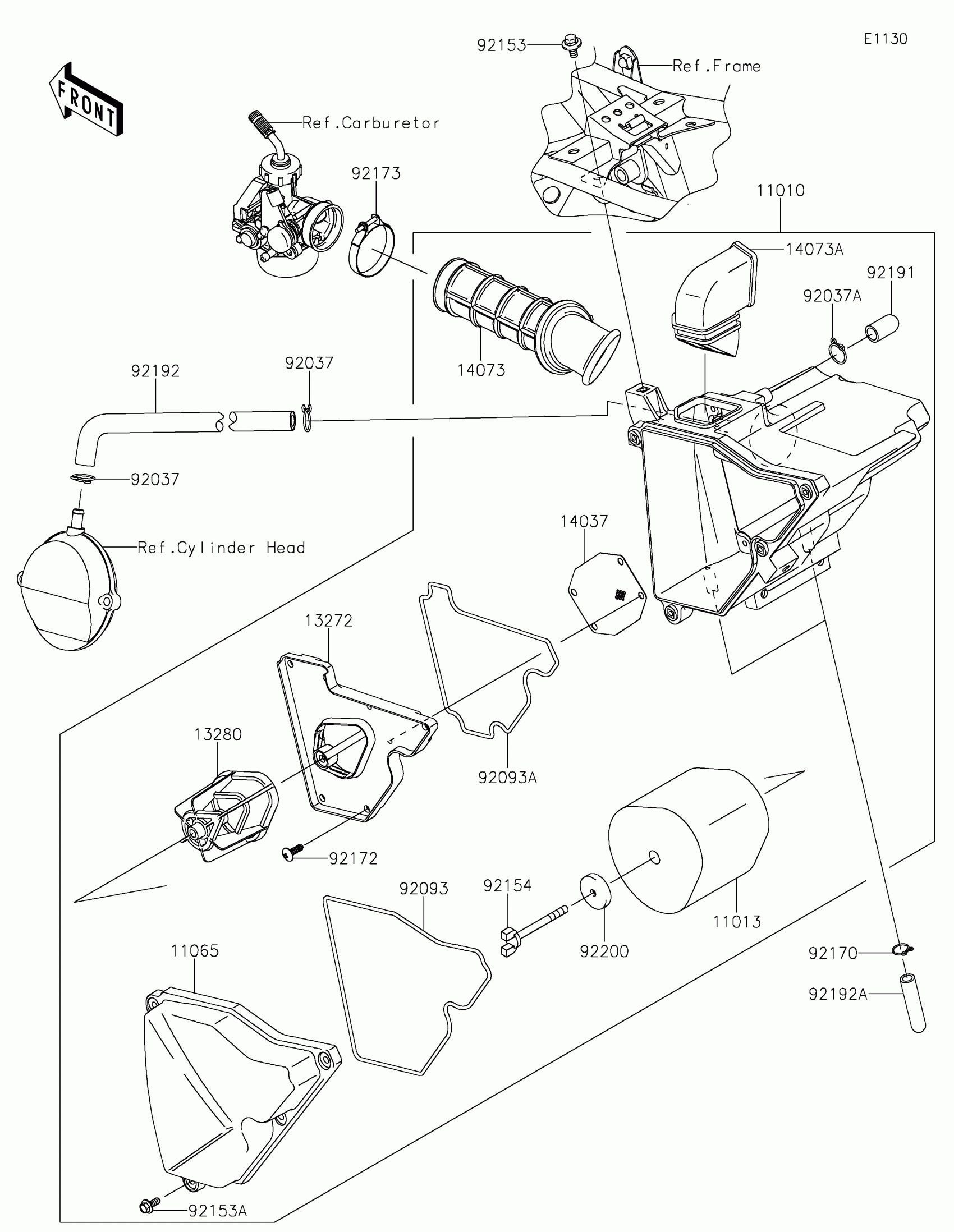

2021 Kawasaki KLX®140R L Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR,F.BLACK

11010-0939-6Z

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-0796

1
Out of stock

11065

CAP,F.BLACK

11065-0210-6Z

1
Out of stock

13272

PLATE

13272-1883

1
Out of stock

13280

HOLDER

13280-0831

1
Out of stock

14037

SCREEN

14037-0074

1
Out of stock

14073

DUCT,CARB.

14073-0171

1
Out of stock

14073A

DUCT,INTAKE

14073-0791

1
Out of stock

92037

CLAMP,12.5MM

92037-1271

1
Out of stock

92037A

CLAMP,14.5MM

92037-1900

1
Out of stock

92093

SEAL,L=620

92093-0094

1
Out of stock

92093A

SEAL,L=520

92093-0103

1
Out of stock

92153

BOLT,FLANGED,6X14

92153-0936

1
Out of stock

92153A

BOLT,WP,5X14

92153-1882

1
Out of stock

92154

BOLT,6X60

92154-2790

1
Out of stock

92170

CLAMP,11.6MM

92170-1796

1
Out of stock

92172

SCREW,5X16

92172-1211

1
Out of stock

92173

CLAMP

92173-0991

1
Out of stock

92191

TUBE,DRAIN

92191-1685

1
Out of stock

92192

TUBE,BREATHER

92192-0473

1
Out of stock

92192A

TUBE,A/C-DRAIN

92192-0921

1
Out of stock

92200

WASHER,6.5X26X2

92200-0394

1
Out of stock
