2021 Kawasaki KLX®140R L Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2021 Kawasaki KLX®140R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

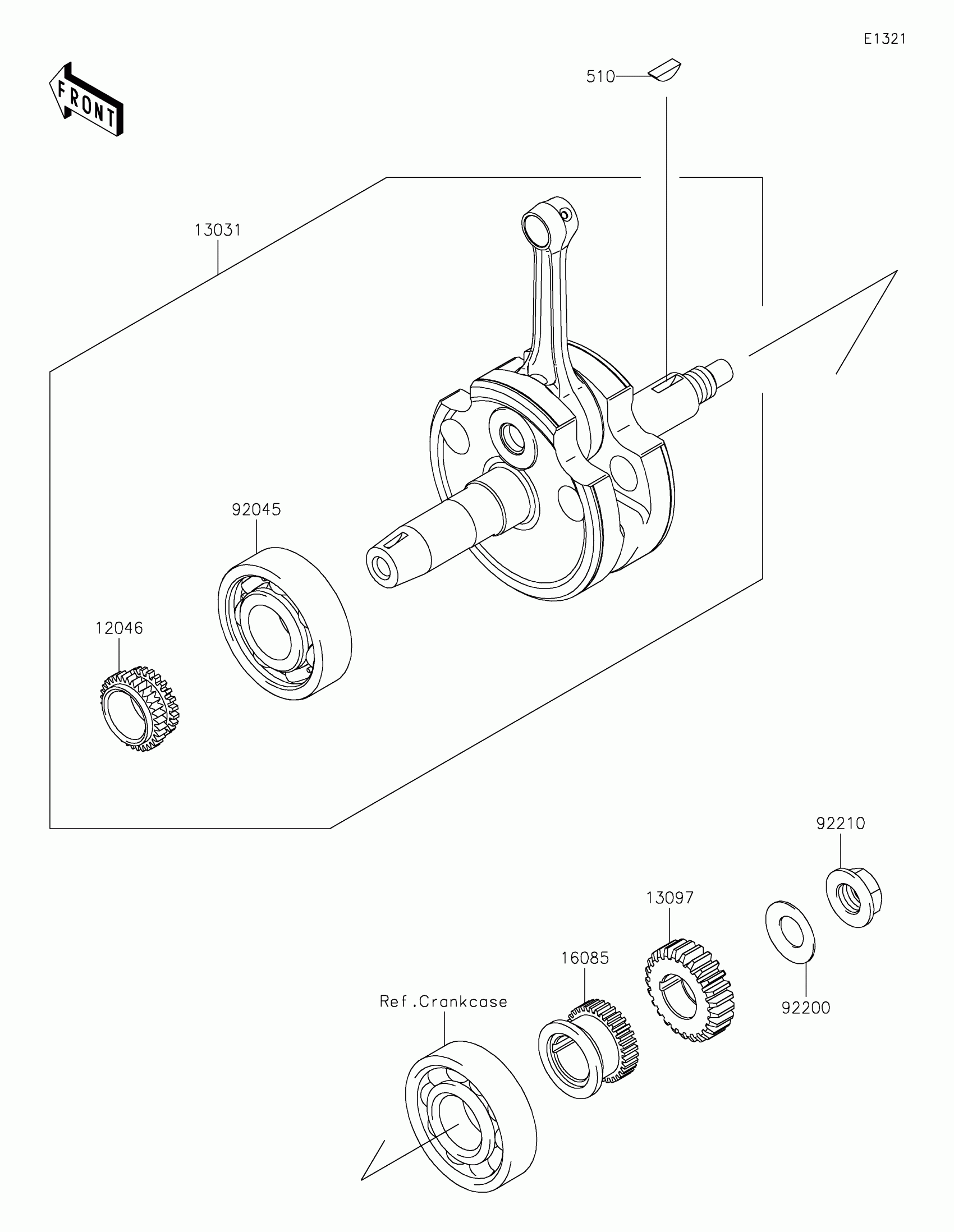

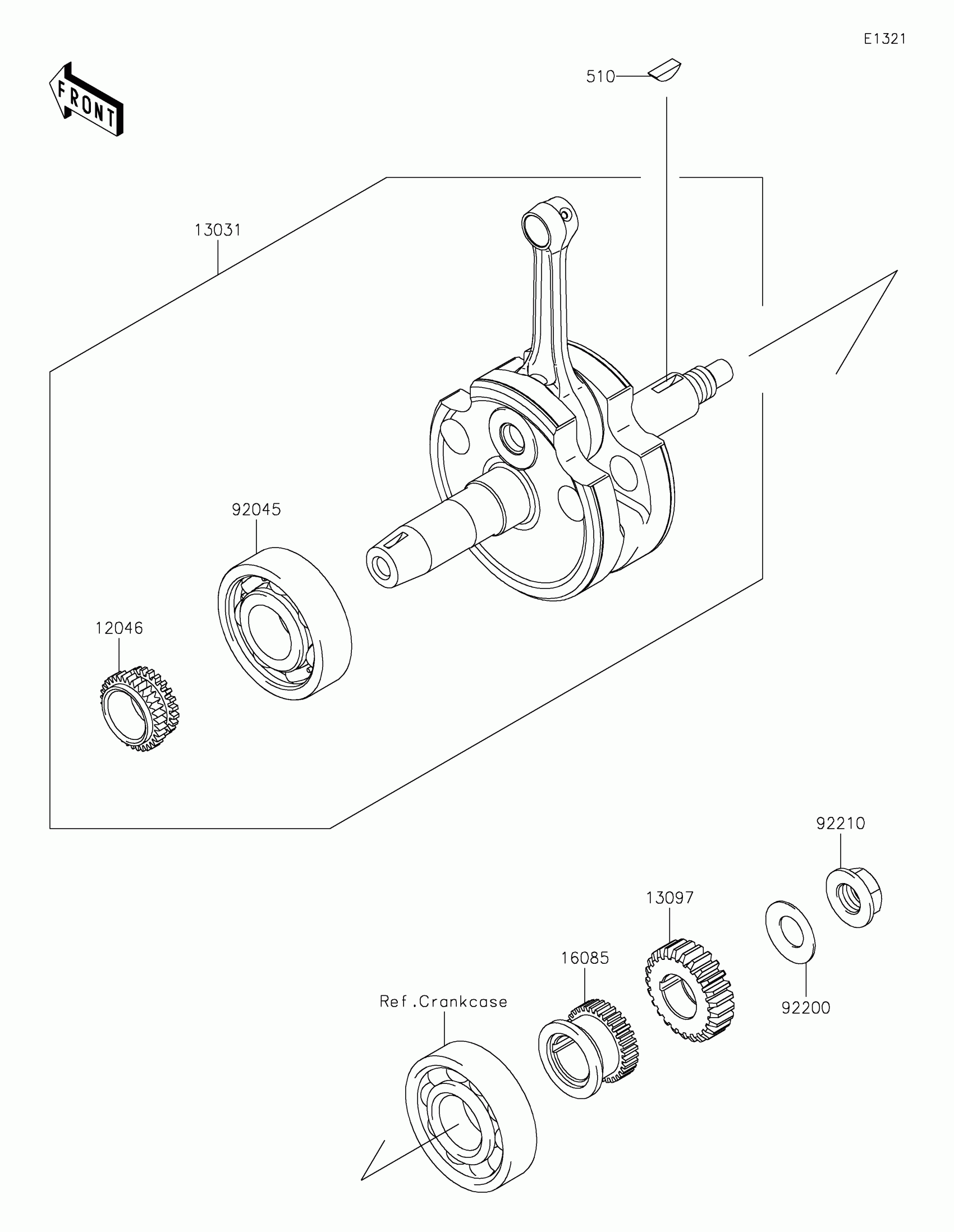

2021 Kawasaki KLX®140R L Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,18T

12046-0061

1
Out of stock

13031

CRANKSHAFT-COMP

13031-0865

1
Out of stock

13097

1

$91.54

In stock

16085

GEAR,21T

16085-0118

1
Out of stock

510

KEY-WOODRUFF

510A4200

1
Out of stock

92045

BEARING-BALL,6305JR2C3

92045-1120

1
Out of stock

92200

WASHER,14.2X28X1.5

92200-0217

1
Out of stock

92210

NUT,14MM,LEFT HANDED

92210-0600

1
Out of stock
← Crankcase Cylinder Head →

More Engine diagrams

Need Help Finding the Right Part?

Not sure it fits? Ask before you order — our team will check the part for your machine.

For a faster answer, include:

Year, make and model of your machine

VIN or frame / serial number

OEM part number or a photo of the old part
