2011 Kawasaki KLX®140 Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2011 Kawasaki KLX®140, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

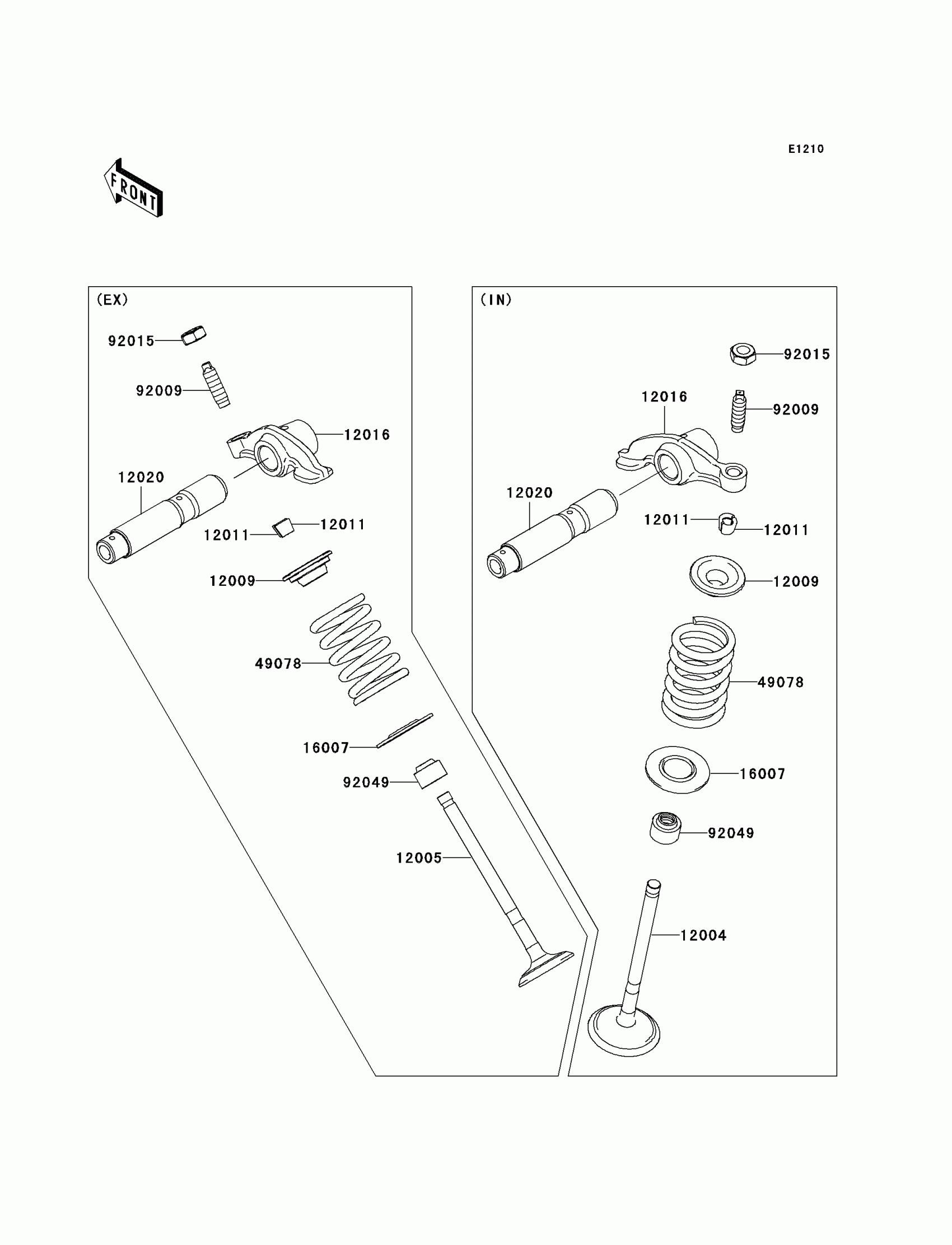

2011 Kawasaki KLX®140 Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-0031

1
Out of stock

12005

VALVE-EXHAUST

12005-0048

1
Out of stock

12009

1

$8.19

In stock

12011

COLLET

12011-1051

1

$1.64

In stock

12016

ARM-ROCKER

12016-0026

1

$53.81

In stock

12020

SHAFT-ROCKER

12020-0007

1

$12.83

In stock

16007

SEAT-SPRING

16007-1223

1

$0.44

In stock

49078

SPRING-ENGINE VALVE

49078-0064

1

$8.39

In stock

92009

SCREW,VALVE ADJUST

92009-1109

1
Out of stock

92015

NUT,VALVE ADJUST LOCK

92015-1137

1
Out of stock

92049

SEAL-OIL

92049-1603

1
Out of stock
