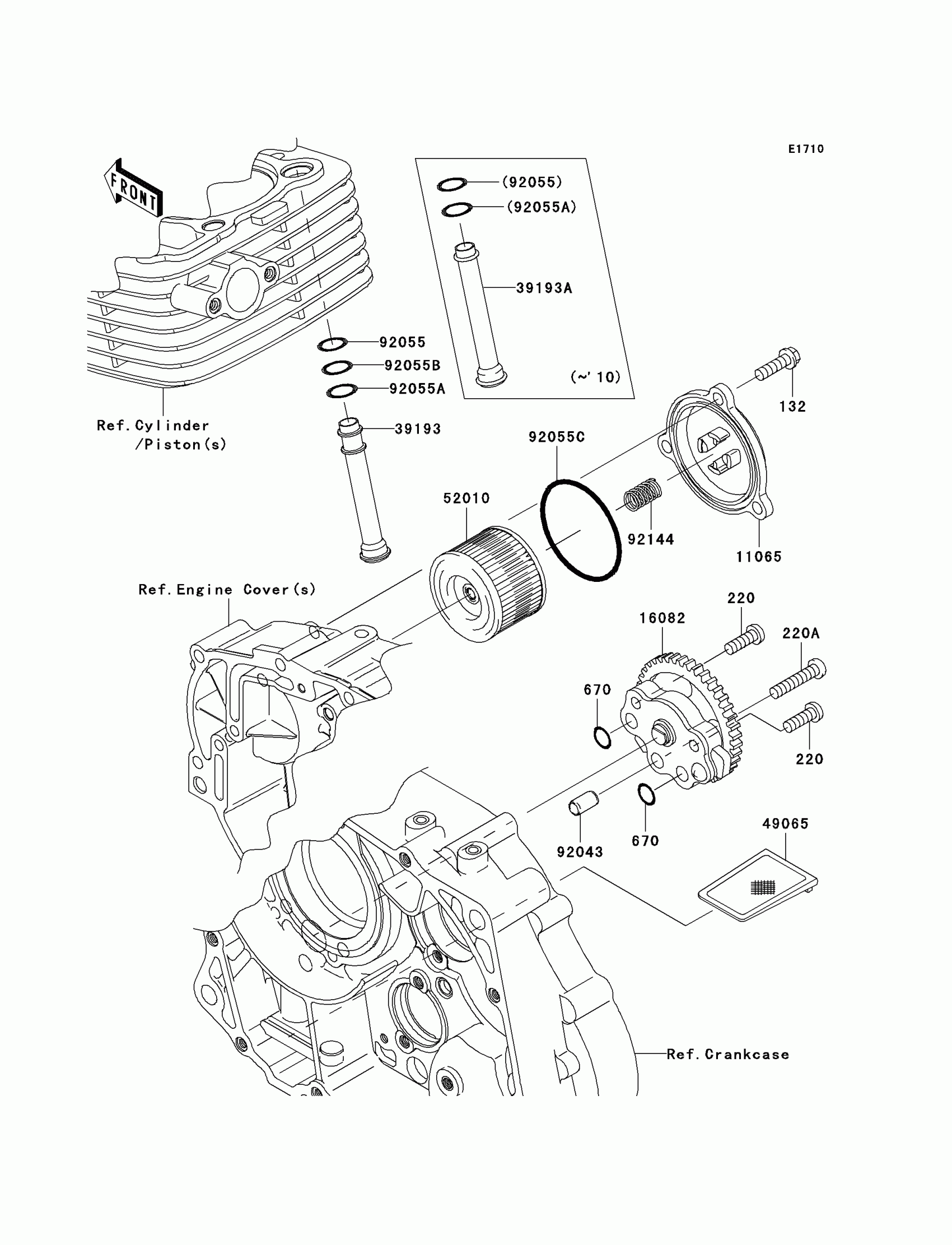

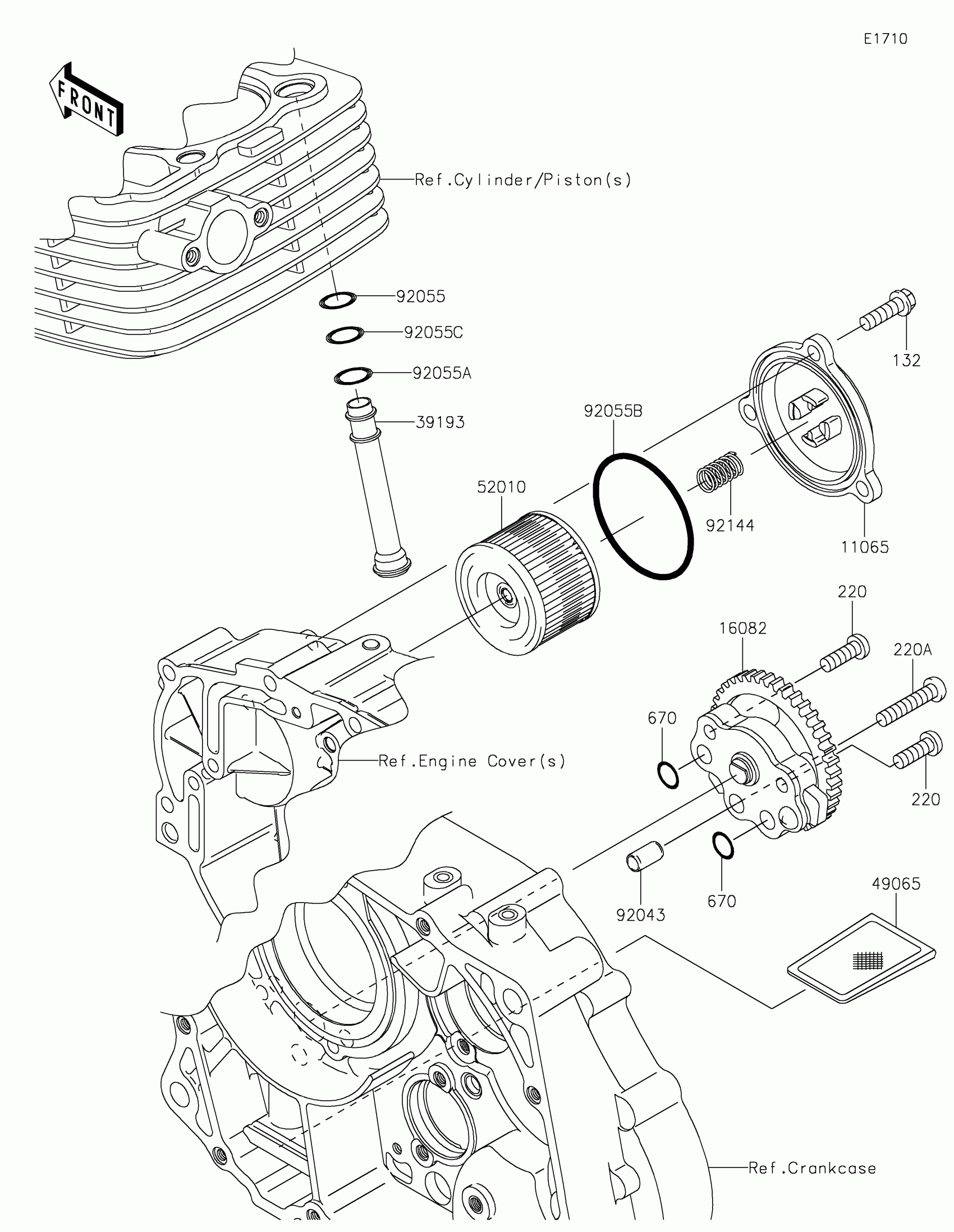

2011 Kawasaki KLX®140 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2011 Kawasaki KLX®140, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki KLX®140 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.05

In stock

220

1

$2.92

In stock

220A

1

$2.92

In stock

670

O RING,9.8X1.9

670B1510

1

$3.43

In stock

11065

CAP

11065-0255

1

$20.23

In stock

16082

PUMP-ASSY-OIL

16082-1159

1

$19.39

In stock

39193

PIPE-OIL

39193-0062

1

$5.17

In stock

49065

FILTER-OIL

49065-0021

1

$7.14

In stock

52010

ELEMENT-OIL FILTER

52010-1053

1

$7.23

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92055

RING-O,9.8X1.9

92055-0061

1
Out of stock

92055A

RING-O,12.8X1.9

92055-0152

1

$3.11

In stock

92055B

RING-O,9.8X2.4

92055-1150

1

$6.44

In stock

92055C

RING-O,59.6X2.4

92055-1685

1

$4.39

In stock

92144

SPRING

92144-1892

1

$2.63

In stock
