2011 Kawasaki KLX®140 Crankcase Diagram

← All diagrams

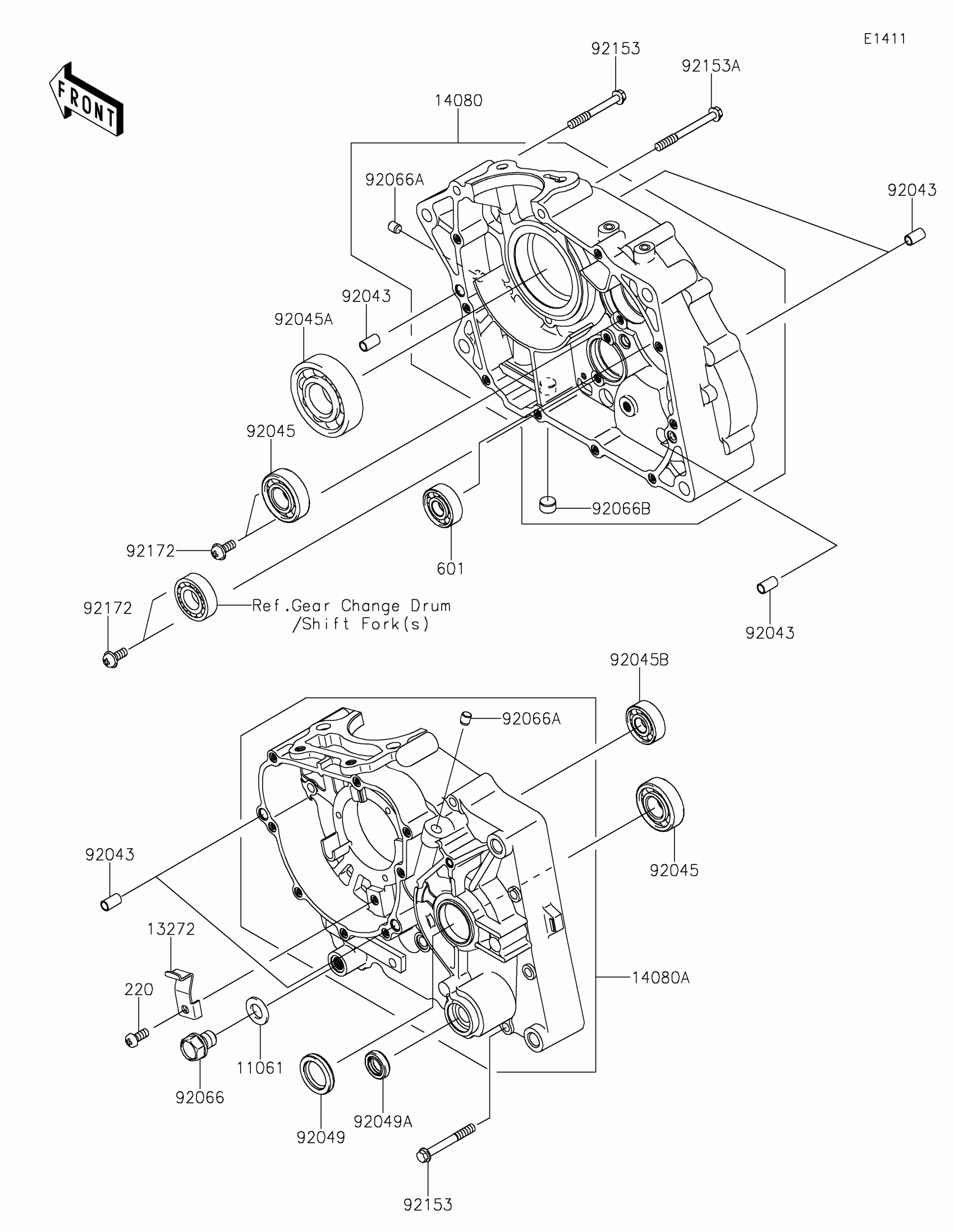

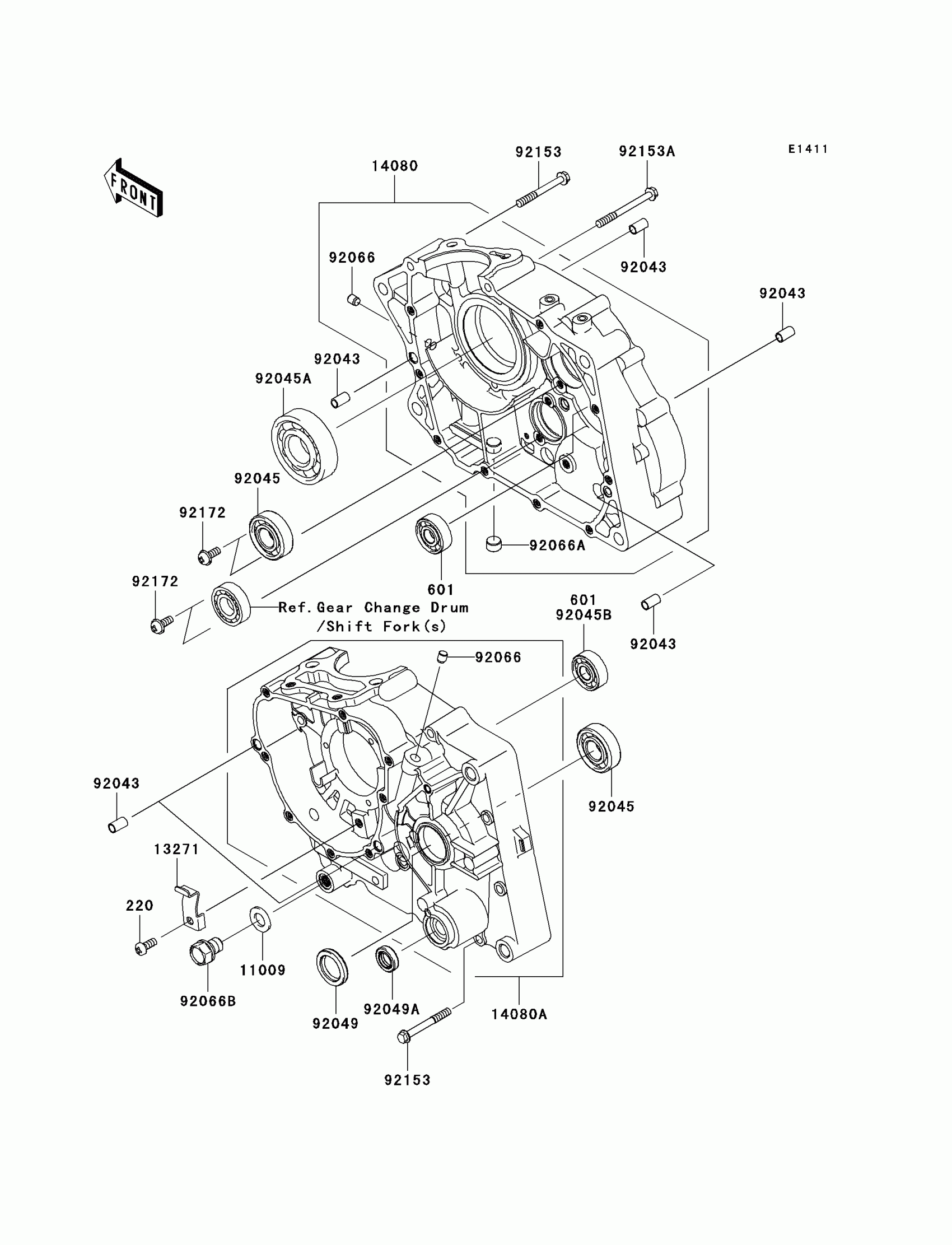

Find the part on the Crankcase diagram for your 2011 Kawasaki KLX®140, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki KLX®140 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

1

$1.32

In stock

601

BEARING-BALL

601A6201

1

$8.46

In stock

11009

GASKET,DRAIN PLUG

11009-1332

1
Out of stock

13271

PLATE

13271-0035

1
Out of stock

14080

CRANKCASE,RH

14080-0190

1

$114.78

In stock

14080A

CRANKCASE,LH

14080-0245

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92045

BEARING-BALL

92045-0011

1

$7.09

In stock

92045A

BEARING-BALL

92045-0018

1

$46.04

In stock

92045B

1

$11.08

In stock

92049

SEAL-OIL

92049-0011

1
Out of stock

92049A

SEAL-OIL,13X22X5.5

92049-1615

1
Out of stock

92066

PLUG,OIL LINE,7.2X8

92066-1012

1

$5.66

In stock

92066A

PLUG

92066-1110

1

$5.66

In stock

92066B

1

$4.88

In stock

92153

BOLT,6X50

92153-1145

1
Out of stock

92153A

BOLT,6X60

92153-1146

1
Out of stock

92172

SCREW,6X14

92172-1062

1

$0.81

In stock
