2011 Kawasaki KLX®140 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2011 Kawasaki KLX®140, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

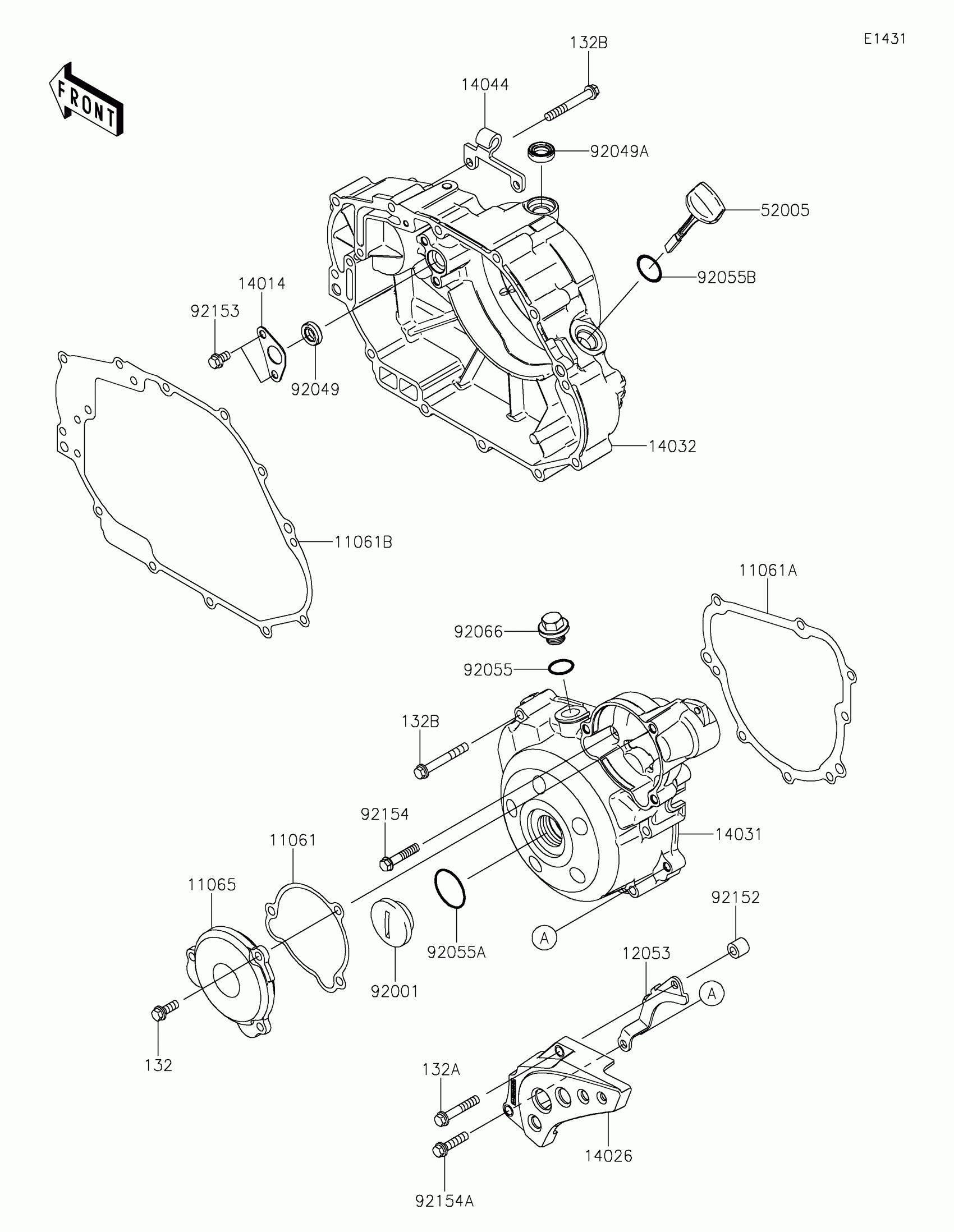

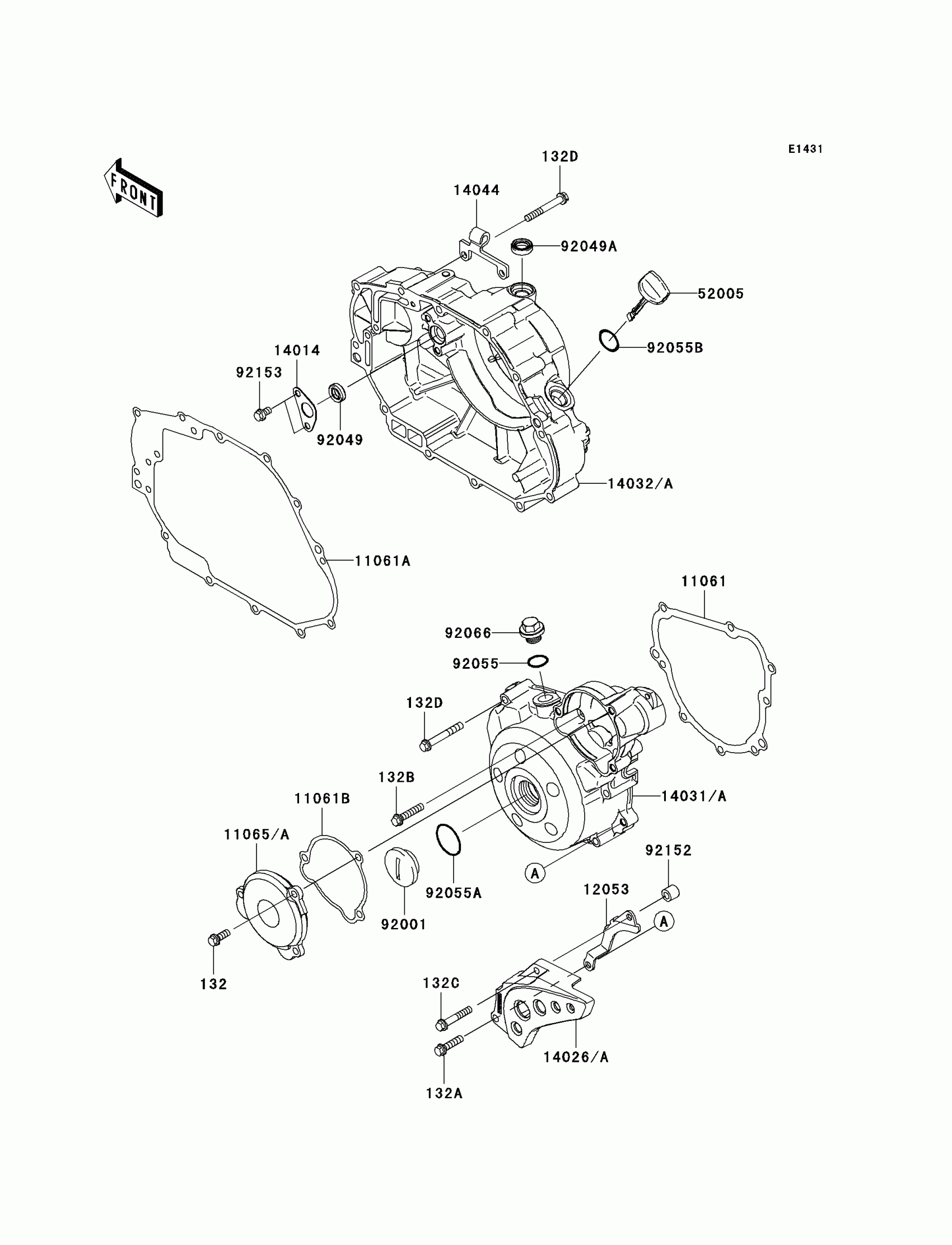

2011 Kawasaki KLX®140 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.21

In stock

132A

1

$2.29

In stock

132B

1

$2.17

In stock

132C

1

$1.73

In stock

132D

1

$3.53

In stock

11061

1

$3.36

In stock

11061A

GASKET,CLUTCH COVER

11061-0214

1

$5.96

In stock

11061B

GASKET

11061-0300

1

$5.29

In stock

11065

CAP

11065-0209

1
Out of stock

12053

GUIDE-CHAIN

12053-0133

1

$7.56

In stock

14014

PLATE-POSITION

14014-1153

1
Out of stock

14026

COVER-CHAIN

14026-0061

1
Out of stock

14031

COVER-GENERATOR

14031-0081

1
Out of stock

14032

COVER-CLUTCH

14032-0116

1

$153.02

In stock

14044

HOLDER-CABLE

14044-1102

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-0079

1

$5.56

In stock

92001

1

$5.78

In stock

92049

SEAL-OIL,10X18X5

92049-0104

1
Out of stock

92049A

SEAL-OIL,12X20X5.5

92049-1617

1
Out of stock

92055

RING-O,14.8X2.4

92055-0153

1

$4.47

In stock

92055A

RING-O,25.7X2.4

92055-0154

1

$4.47

In stock

92055B

RING-O,20X2

92055-0155

1

$3.11

In stock

92066

PLUG,14X10

92066-1571

1

$0.71

In stock

92152

COLLAR,6.5X12X11

92152-0692

1

$4.95

In stock

92153

BOLT,6X10

92153-1140

1
Out of stock
