2011 Kawasaki KLX®140 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2011 Kawasaki KLX®140, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

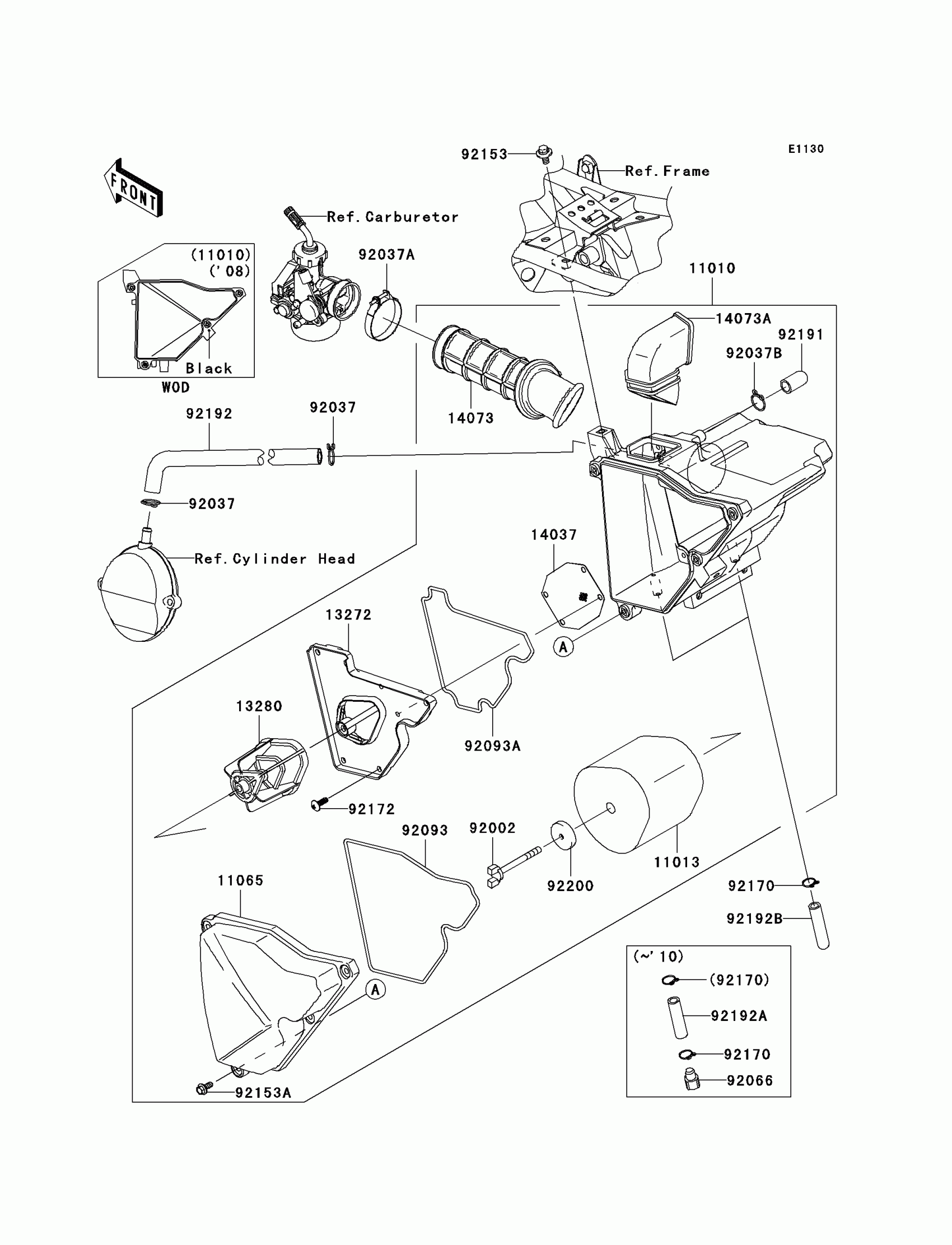

2011 Kawasaki KLX®140 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR,F.BLACK

11010-0128-6Z

1

$190.44

In stock

11013

ELEMENT-AIR FILTER

11013-0025

1

$7.52

In stock

11065

CAP

11065-0210

1

$55.07

In stock

13272

PLATE

13272-0028

1

$47.69

In stock

13280

HOLDER

13280-0253

1

$31.36

In stock

14037

SCREEN

14037-0074

1

$8.46

In stock

14073

DUCT,CARB.

14073-0171

1

$21.14

In stock

14073A

DUCT,INTAKE

14073-0172

1

$25.24

In stock

92002

BOLT

92002-1904

1
Out of stock

92037

CLAMP,12.5MM

92037-1271

1

$1.80

In stock

92037A

CLAMP

92037-1305

1

$7.18

In stock

92037B

CLAMP,14.5MM

92037-1900

1

$3.87

In stock

92093

SEAL,L=620

92093-0094

1

$9.86

In stock

92093A

SEAL,L=520

92093-0103

1

$8.39

In stock

92153

BOLT,FLANGED,6X14

92153-0936

1
Out of stock

92153A

BOLT,WP,5X14

92153-1882

1

$3.11

In stock

92170

CLAMP,11.6MM

92170-1796

1

$7.53

In stock

92172

SCREW,5X16

92172-0177

1

$2.15

In stock

92191

TUBE,DRAIN

92191-1685

1
Out of stock

92192

TUBE,BREATHER

92192-0473

1
Out of stock

92192B

TUBE,A/C-DRAIN

92192-0921

1
Out of stock

92200

WASHER,6.5X26X2

92200-0394

1
Out of stock
