2026 Kawasaki KLX®110R L Valve Diagram

← All diagrams

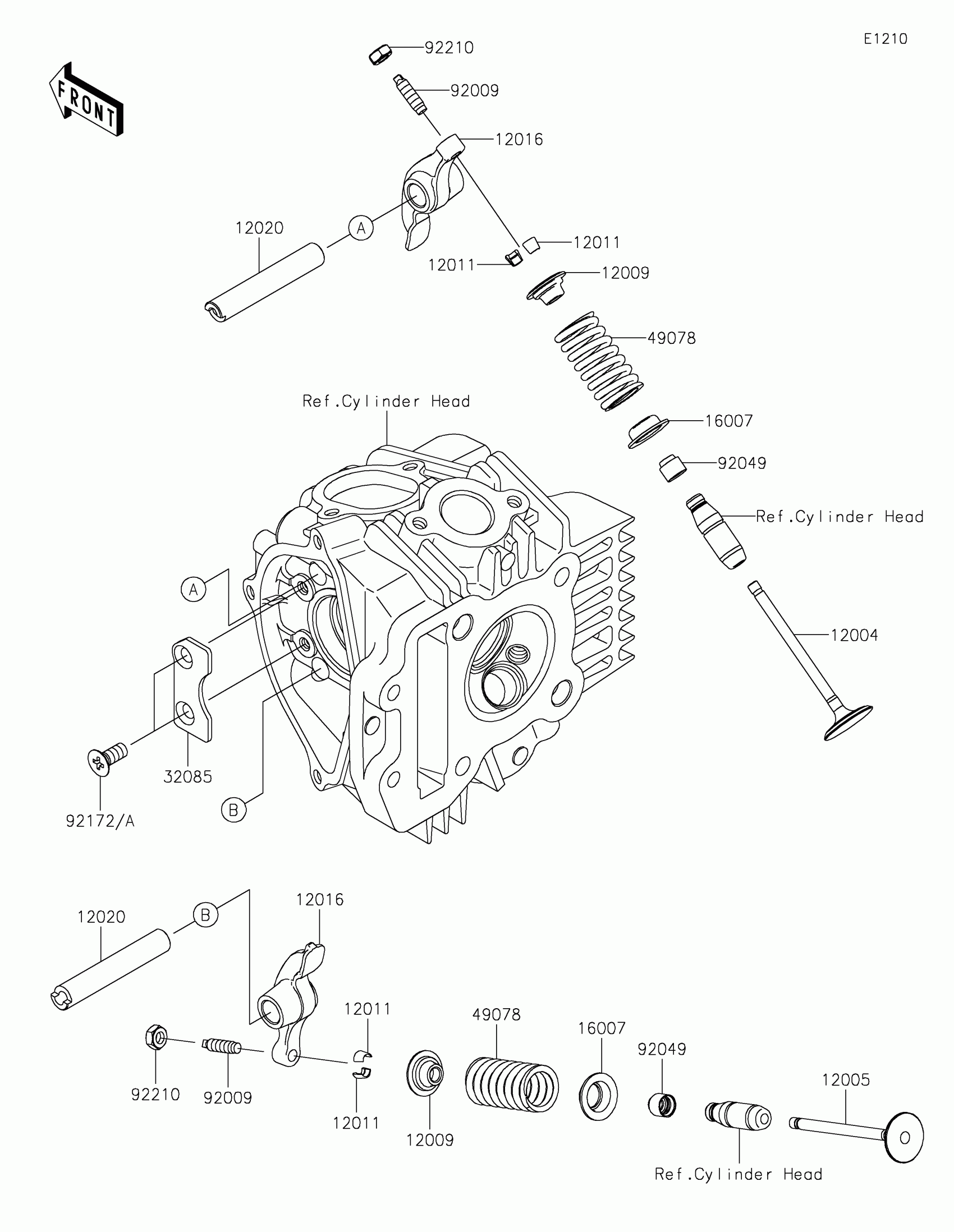

Find the part on the Valve diagram for your 2026 Kawasaki KLX®110R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KLX®110R L Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-0710

1
Out of stock

12005

VALVE-EXHAUST

12005-0713

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-1073

1
Out of stock

12011

COLLET

12011-1053

1
Out of stock

12016

ARM-ROCKER

12016-0001

1
Out of stock

12020

SHAFT-ROCKER

12020-0031

1
Out of stock

16007

SEAT-SPRING,VALVE

16007-1187

1
Out of stock

32085

STOPPER

32085-0893

1
Out of stock

49078

SPRING-ENGINE VALVE

49078-1151

1
Out of stock

92009

SCREW,VALVE ADJUST

92009-1109

1
Out of stock

92049

SEAL-OIL,VSB 4.3 7.5 5.3 8.3

92049-1349

1
Out of stock

92172A

SCREW,6X14

92172-0832

1
Out of stock

92210

NUT,VALVE ADJUST LOCK

92210-1491

1
Out of stock
